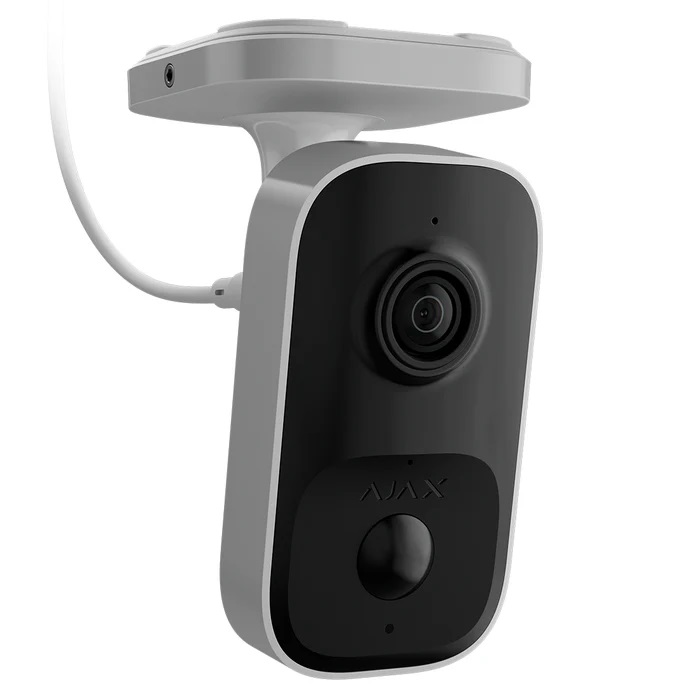

AJAX SURVEILLANCE IndoorCam

Availability: In stock

Product Code:28357

Description:

Professional security and AI. Domesticated.
IndoorCam combines the convenience of Wi-Fi cameras with high-end security features. Its fallback communication channel with an Ajax hub ensures that the facility never drops out of sight, even if Wi-Fi is lost. Equipped with a PIR sensor and built-in AI, the device accurately detects movement and recognizes people, animals, and vehicles. Users can always get a clear view of indoor activity in outstanding quality thanks to the IndoorCam’s wide-angle HDR camera.

Details:

Video stream

• Camera : 4 MP CMOS sensor
• Resolution : Up to 2688 × 1520 px
• Camera viewing angles : Horizontal: 110° / Vertical: 60°
• Video protocol : JetSparrow

Fast and encrypted peer-to-peer video protocol developed by Ajax Systems

• Storage options : Ajax Cloud (coming soon) / NVR
• Video codec : H.264
• Dynamic range : HDR

Improves the accuracy of detail in bright and dark scenes

Communication channel

• Wi-Fi : 802.11 b/g/n module / 2.4 GHz, up to 2 Mbit/s for the 2K video channel

Jeweller and Wings communication technologies
Proprietary wireless communication technologies to transmit commands, alarms, events, and photo verifications
Serve as a backup communication channel when the device is added to the hub

Key features

• Two-way communication
• Clear and loud voice communication between users and the device

Motion detection : The device detects movement using a built-in PIR sensor and software image frame analysis

Object detection

• Using AI
• People
• Pets
• Vehicles
• Smart IR illumination : Up to 8 m

Automatic adjustment of intensity in real time to avoid overexposure. This allows you to see objects that are far away or too close to the camera in low-light conditions

Visual verification of Ajax alarms
The system allows you to set up a scenario when Ajax detectors activate selected cameras to start recording. The result is immediately sent to the mobile or desktop monitoring app

Audio

• Microphone
• For two-way communication and sound recording at the site
• Speaker volume : TBC
• Audio codec : G722
• Audio processing : Always active noise suppression and echo cancellation

LED indication

• An LED indicator shows the actual state of the device

PIR detection
Sensitive elements
1 × PIR sensor

• Motion detection distance : Up to 4 m

Depends on the sensitivity level adjusted in the device settings

• Motion detection angle : Horizontal: 110° / Vertical: 60°
• Sensitivity : 3 levels

Adjusted by a PRO or a user with admin rights in Ajax apps

Installation recommendations
The device is designed for indoor use only
It is not recommended to install the device in direct sunlight. This may cause overheating and damage to the device's electrical components

Sabotage protection
Holding screw
Secures the device on the mounting bracket

mTLS : Encrypted connection for data protection

Authentication : Via Ajax Cloud
Without local access rights

Secure Boot
Protection against firmware spoofing

OTA signature verification
Secure automatic firmware update

Privacy
Access rights distribution for users in mobile apps and for monitoring operators in PRO Desktop

Communication loss detection

• Wi-Fi: can be set from 30 s
• Jeweller/Wings: after 36 s

Detection time depends on Ajax Cloud connection and Jeweller or Jeweller/Fibra settings

Power supply

• Power supply unit : 12 V⎓ ± 20%, 1 А

Device power consumption
TBC

Enclosure

• Dimensions : 128 × 74 × 76 mm
• Weight : 235 g
• Operating temperature range : From 0 °C to +40 °C
• Operating humidity : Up to 90% with no condensation
• Protection class : IP20
