Specifications

Communication9
866.0–866.5 MHz
868.0–868.6 MHz
868.7–869.2 MHz
Maximum effective radiated power (ERP)
up to 20 mW
Radio signal modulation
GFSK
Radio signal range
up to 1,700 m
Encrypted communication
All stored and transmitted data are protected by block encryption featuring a dynamic key
Frequency hopping
To prevent radio interference and jamming
 Wings communication technology
Two-way communication / Block encryption featuring a dynamic key / Advanced anti-sabotage / Data package reload in case of transmission errors / Photo delivery check
Detection7
Motion detection distance
up to 12 m
Motion detection angles
horizontal — 88.5°
Motion detection speed
from 0.3 to 2.0 m/s
Sensitivity
3 levels
Pet immunity
weight : up to 20 kg / height : up to 50 cm
False alarm prevention
SmartDetect
Temperature compensation
Effective motion detection at temperatures from −10°C to +40°C
Photo verification6
Photo by alarm
A built-in camera is activated if the detector is armed and motion is detected
Photo resolution
640 × 480 px / 320 × 240 px (by default) / 160 × 120 px
HDR image
Improves the accuracy of detail in bright and dark scenes
IR backlight
For night photography and low light conditions
Pictures in a series
from 1 to 5 images with a resolution of 320 × 240 px or 160 × 120 px  / from 1 to 3 images with a resolution of 640 × 480 px
Photo delivery time
up to 7 s — 160 × 120 px resolution / up to 9 s — 320 × 240 px resolution / up to 20 s — 640 × 480 px resolution
Anti-sabotage protection3
Tamper alarm
Notifications on attempts to detach the device from the surface or remove it from the mounting panel
Protection against spoofing
device authentication
Communication loss detection
within 36 s
Power supply2
Battery
2 × CR123A Pre-installed
Calculated battery life
up to 4 years
Enclosure5
Dimensions
135 × 70 × 60 mm
Weight
170 g
Operating temperature range
from −10 °C to +40 °C
Operating humidity
up to 75%
Protection class
IP50
  • HDR for challenging lighting conditions

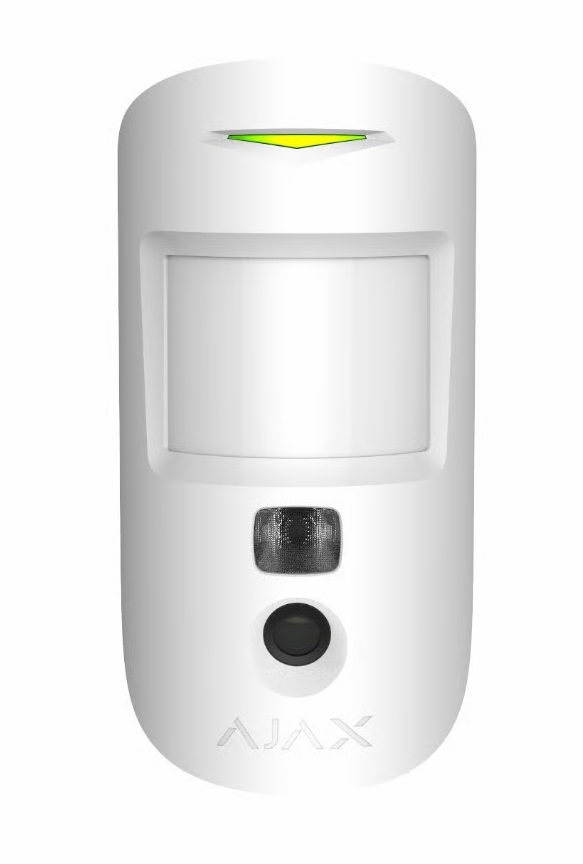

  • MotionCam (PhOD) Jeweller is a wireless motion detector supporting photo verification of alarms, Photo on Demand, and Photo by Scenario features. Intended for indoor installation. It can recognise movement at a distance of up to 12 meters. Ignores pets when installed and set up correctly
  • MotionCam (PhOD) Jeweller works as part of the Ajax security system, communicating with the hub over two secure radio protocols: the detector uses Jeweller to transmit alarms and events and Wings to transmit photos. The hub communication range is up to 1,700 meters in an open space
  • A hub is required for the detector to operate
  • Lightning-fast alarms. Verified
  • More than a photo. Faster than a video
  • No intruder goes unnoticed
  • Stable operation with pre-installed batteries
  • Unique wireless technologies
  • System supervision
  • Sabotage resistance
  • Effortless installation and setup
