- PC material, tempered glass panel and IP66, suitable for indoor and outdoor use
- Contactless card reading for IC cards (Mifare cards)
- Unlock through card swiping and Bluetooth
- Communicates through the RS-485 port, Wiegand port, and Bluetooth
- Prompts using the buzzer and indicator light
- Supports the anti-tampering alarm
- The built-in watchdog program can detect and control the abnormal operation status of the equipment and perform recovery processing to ensure the long-term operation of the equipment
- All the connection ports have overcurrent and overvoltage protection
- Works with the DMSS mobile client
Sale!-55%

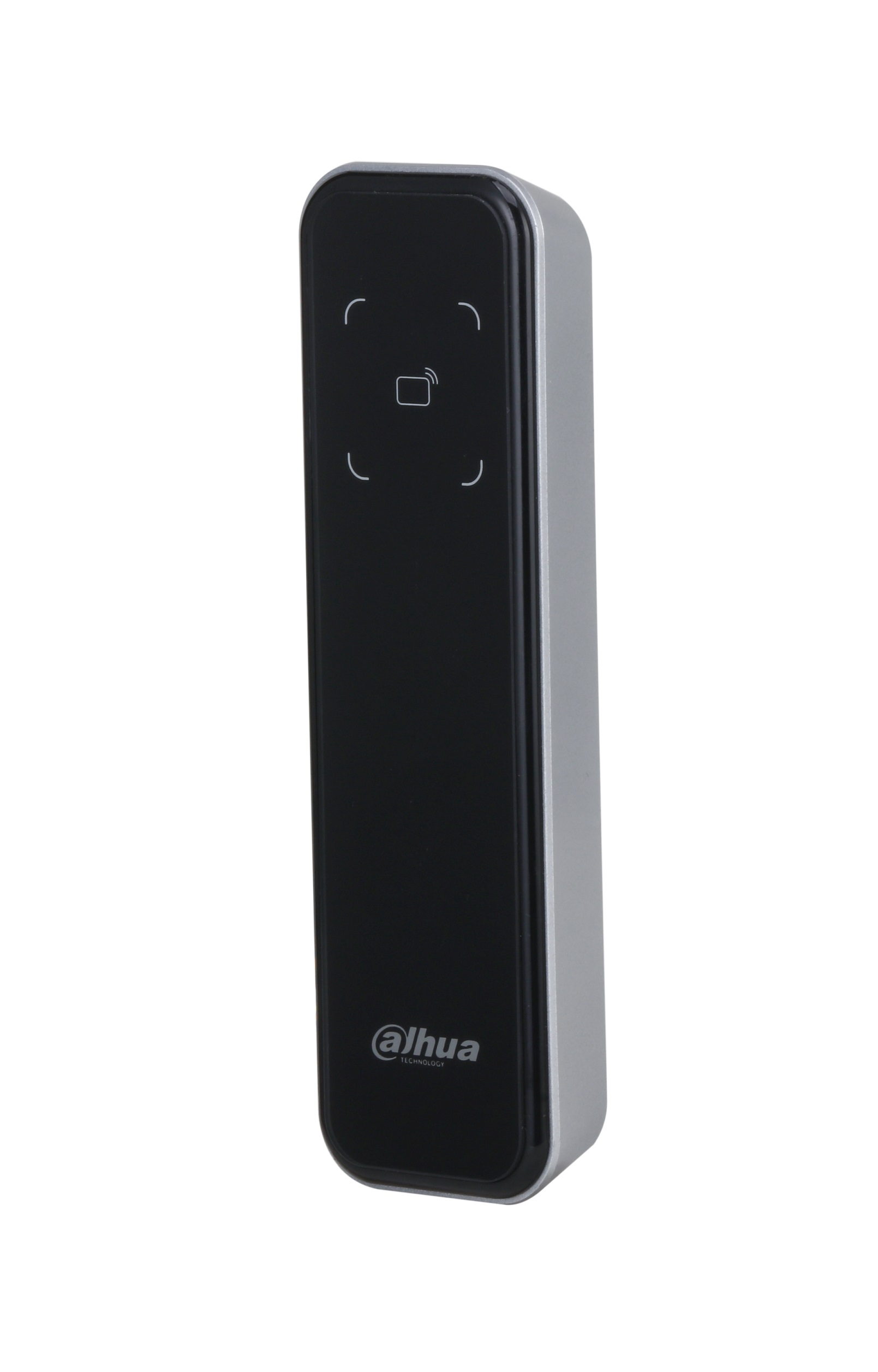

Dahua AC RFID & Bluetooth Reader ASR2200A-B
Original price was: 110,00 €.49,00 €Current price is: 49,00 €.
You save 61,00 €
Out of stock
Out of stock
Specifications
Basic3
- Product Type
- Card reader
- Buzzer
- Yes
- Casing Material
- Tempered glass/PC
Function3
- Unlock Mode
- Card swiping/Bluetooth
- Card Type
- IC card
- Bluetooth
- Yes
Performance3
- Response Time
- 0.1 s
- Card Reading Distance
- 0 cm–5 cm
- Bluetooth Distance
- 1.Short-range: ≤0.2 m / 2.Mid-range: ≤2 m. 3. / Long-range: ≤10 m. The Bluetooth unlock range might differ depending on models of your phone and the environment
Port2
- RS-485
- 1
- Wiegand
- 1 output channel
Alarm1
- Tamper Alarm
- Yes
General11
- Power Supply
- 12 VDC, 0.5 A
- Protection
- IP66
- Power Consumption
- Standby ≤0.9 W, working ≤1.7W
- Product Dimensions
- 135 mm × 40 mm × 15 mm (H × W × D)
- Packaging Dimensions
- 195 mm × 75 mm × 52 mm (H × W × D, 1 in inner carton) / 415 mm × 400 mm × 230 mm (H × W × D, carton)
- Operating Temperature
- –30 °C to +70 °C (–22 °F to +158 °F)
- Operating Humidity
- 5%–95% (RH), non-condensing
- Operating Environment
- Outdoor
- Gross Weight
- 0.16 kg
- Installation
- Surface Mount
- Certifications
- CE; FCC
