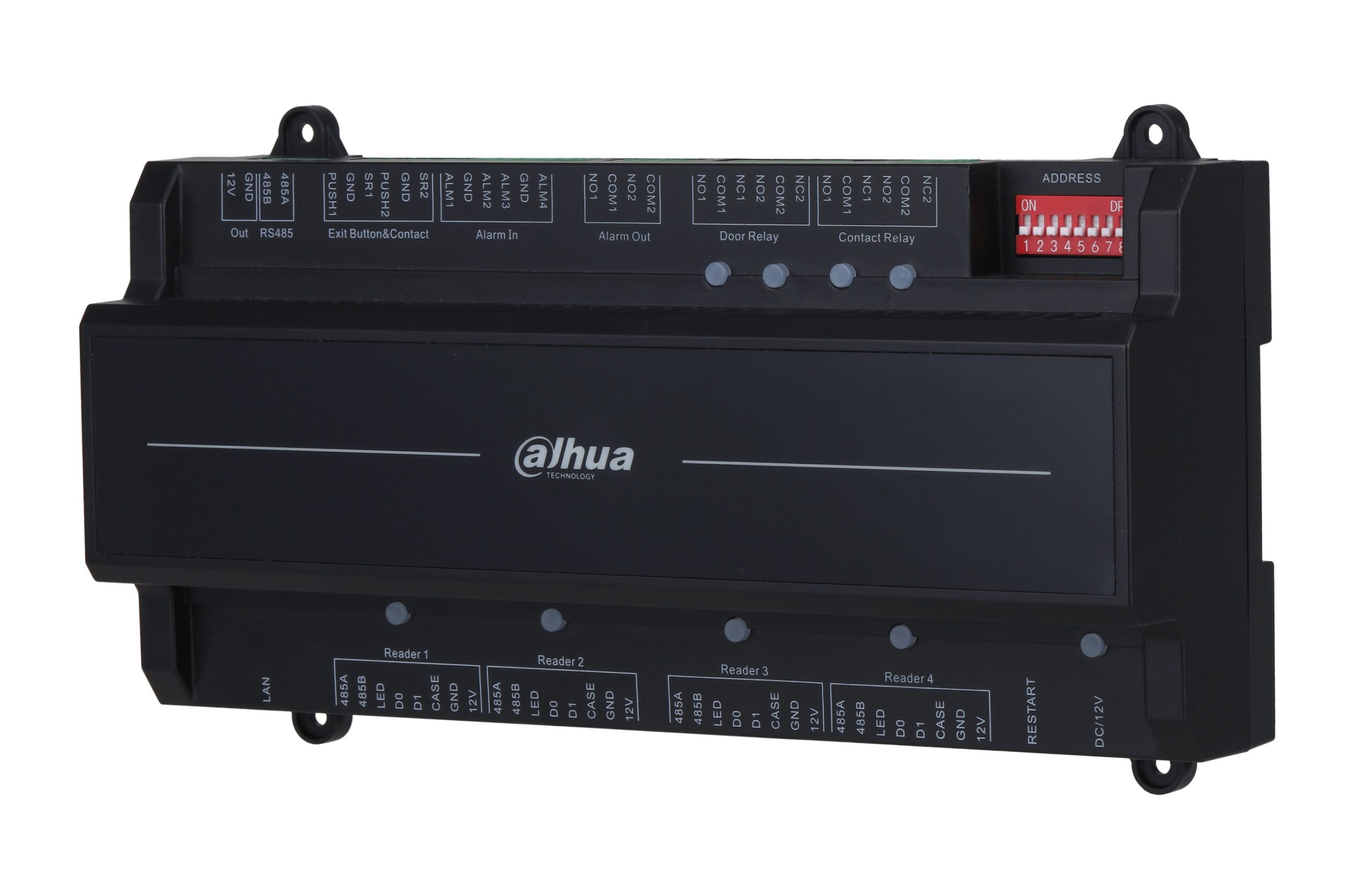

Dahua AC Two Door Two Way ASC2202B-D

274,00 €

Out of stock

Out of stock

Free store pick-up in Limassol · Delivery across Cyprus from €6

Dahua AC Two Door Two Way ASC2202B-D
Dahua AC Two Door Two Way ASC2202B-D
274,00 €

Or contact us directly:

📞 25 102 760
📱 96 401 000

More options

Similar Access Controls in a similar price range

Specifications

System3
Internet Protocol
IPv4; TCP; UDP
OSDP Protocol
Yes
SDK
Yes
Basic3
Product Appearance
Model B slide rail
Buzzer
Yes
Casing Material
PC+ABS
Function12
Unlock Mode
Card/remote/password/fingerprint unlock
Period List
128
Holiday Period
128
Network Update
Yes
First-Card Unlock
Yes
Remote Verification
Yes
Blocklist/Allowlist
Yes
Peripheral Card Reader
4 RS-485 card readers or 4 Wiegand card readers
Multi-door Interlock
Yes
Group Combination
Card/password/fingerprint unlock
Real-Time Surveillance
Yes
Multiple Authentication
Yes
User1
User (Card) Type
General user, VIP user, patrol user, guest user, blocklist user, and other user
Capacity4
User
100,000
Fingerprint
3,000
Card
100,000
Record Capacity
500,000
Port9
RS-485 Port
5 RS-485 ports
Wiegand
4 Wiegand ports
Network
One 10/100 Mbps network port
Alarm Input
4 (digital quantity)
Alarm Output
4 (relay)
Alarm Linkage
Yes
Exit Button
2
Door Status Detection
2
Lock Control
2, normally open by default
Alarm7
Anti-Passback
Yes
Tamper
Yes
Duress
Yes
Door Sensor Timeout
Yes
Intrusion
Yes
Illegal Card Exceeding Threshold
Yes
Duress Fingerprint
Yes
General11
Power Supply
Standard POE (an additional power supply for the door lock is needed) / DC 12V (support supplying power to the door lock)
IP Rating
IP20, IK04
Power Consumption
Standby 1.0W, working 13.0W (Standard PoE; rated voltage of the card reader power supply is 12V, and the total max. rated current is 1.4A) / Standby 0.8W, working 41.6W (DC 12V; rated voltage of the card reader power supply is 12V, and the total max. rated current is 1.4A; rated voltage of the door lock power supply is 12V, and the total max. rated current is 2A)
Product Dimensions
210 mm × 106 mm × 50 mm
Packaging Dimensions
Packaging box: 255 mm × 166 mm × 87 mm / Protective box : 508 mm × 265 mm × 190 mm
Operating Temperature
–30°C to +60°C
Operating Humidity
5%RH–90%RH (no condensation)
Operating Altitude
0 m–1300 m
Operating Environment
Indoor
Gross Weight
0.6 kg
Installation
Surface/guide rail mount
Certification1
CE/FCC/UL
  • Support TCP/IP communication
  • Two dual communication protocols: RS-485 and Wiegand (W26 and W34)
  • Holds 100,000 users and stores 500,000 card swiping records
  • Support interlock, group combination, anti-passback, remote unlock, and more
  • Support card reader tamper alarm, intrusion alarm, door sensor timeout alarm, duress alarm, illegal card exceeding threshold alarm, and incorrect password alarm
  • Built-in RTC, support manual time synchronization and auto time synchronization
  • Support power-off memory protection and online upgrade
  • Support watchdog (a device that protects a system from software or hardware failures)
  • Support PoE power supply
