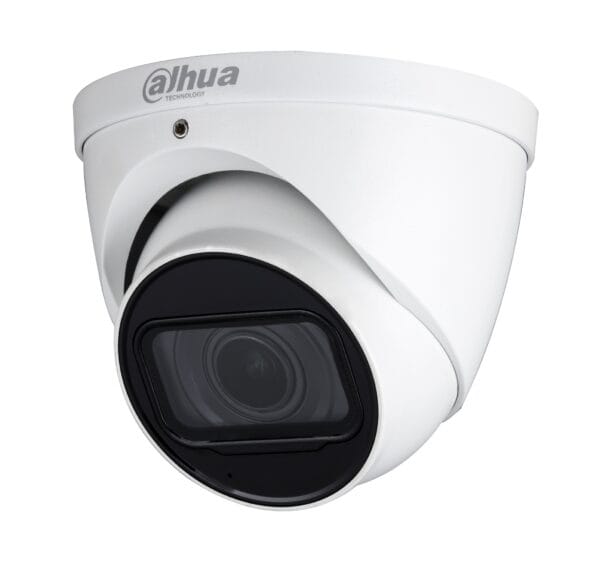

Dahua HDCVI 5.0MP Dome 2.7-13.5mm HDW1500T-Z-A-2712-S2

Availability: In stock

Product Code:29398

Description:

• Max 25 fps@5MP (16:9 video output)
• CVI/CVBS/AHD/TVI switchable
• 2.7-12 mm motorized lens
• Built-in mic(-A)
• Max. IR length 60 m, Smart IR
• IP67, DC12V
• In order to use the 5MP 16:9 HDCVI camera, the firmware of XVR must be upgraded to V4.001.0000001.0.R.200908 or later version

Details:

Camera

• Image Sensor : 1/2.7" CMOS
• Effective Pixels : 2592(H)×1944(V), 5MP
• Scanning System : Progressive
• Electronic Shutter Speed : PAL: 1/25~1/100000s / NTSC: 1/30~1/100000s
• Minimum Illumination : 0.02Lux/F1.8, 30IRE, 0Lux IR on
• S/N Ratio : More than 65dB
• IR Distance : Up to 60m (197feet)
• IR On/Off Control : Auto / Manual
• IR LEDs : 2

Lens

• Lens Type : Motorized lens / Fixed iris
• Mount Type : Board-in
• Focal Length : 2.7-12mm
• Max Aperture : F1.8
• Angle of View : H: 98°~34°
• Focus Control : Motorized
• Close Focus Distance : 500mm

Video

• Resolution : 5MP (2592×1944)
• Frame Rate : 20fps@5MP, 25/30fps@4MP, 25/30fps@1080P
• Video Output : 1-channel BNC HDCVI high definition video output / CVBS video output (Can switch)
• Day/Night : Auto (ICR) / Manual
• OSD Menu : Multi-language
• BLC Mode : BLC / HLC / DWDR
• WDR : DWDR
• Gain Control : AGC
• Noise Reduction : 2D
• White Balance : Auto / Manual
• Smart IR : Auto / Manual

Certifications

• CE (EN55032:2015, EN 61000-3-2:2014, EN 61000-3-3:2013, EN55024:2010+A1:2015, EN 55035:2017, EN50130-4:2011+A1:2014, EN 62368-1:2014+A11:2017)
• FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
• UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

Interface

• Audio Output : One channel built-in mic (-A)
• Video Output : Video output choices of CVI/TVI/AHD/CVBS by one BNC port

Electrical

• Power Supply : 12V DC ±30%
• Power Consumption : Max. 6.6W (12V DC, IR on)

Environmental

• Operating Conditions : -30°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH
• * Start up should be done at above -40°C (-40°F)
• Storage Conditions : -30°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH
• Ingress Protection &Vandal Resistance : IP67

Construction

• Casing : Aluminium
• Dimensions : φ122mm×104mm(Φ4.8"×4.1")
• Net Weight : 0.57kg
• Gross Weight : 0.72kg
