Availability: In stock
Product Code:28746
Description:
- * The parameters and datasheets below can only be applied to1500-IL-S3 series.
- * In order to use the 5MP 16:9 and the Smart Dual Light HDCVI camera, the firmware of XVR must be upgraded to V4.001.0000004.1.R.220323 or later version.
- Max. 25 fps@5MP (16:9 video output)
- Starlight, 3D NR
- Smart Dual Light.
- 30 m illumination distance.
- Built-in Mic.

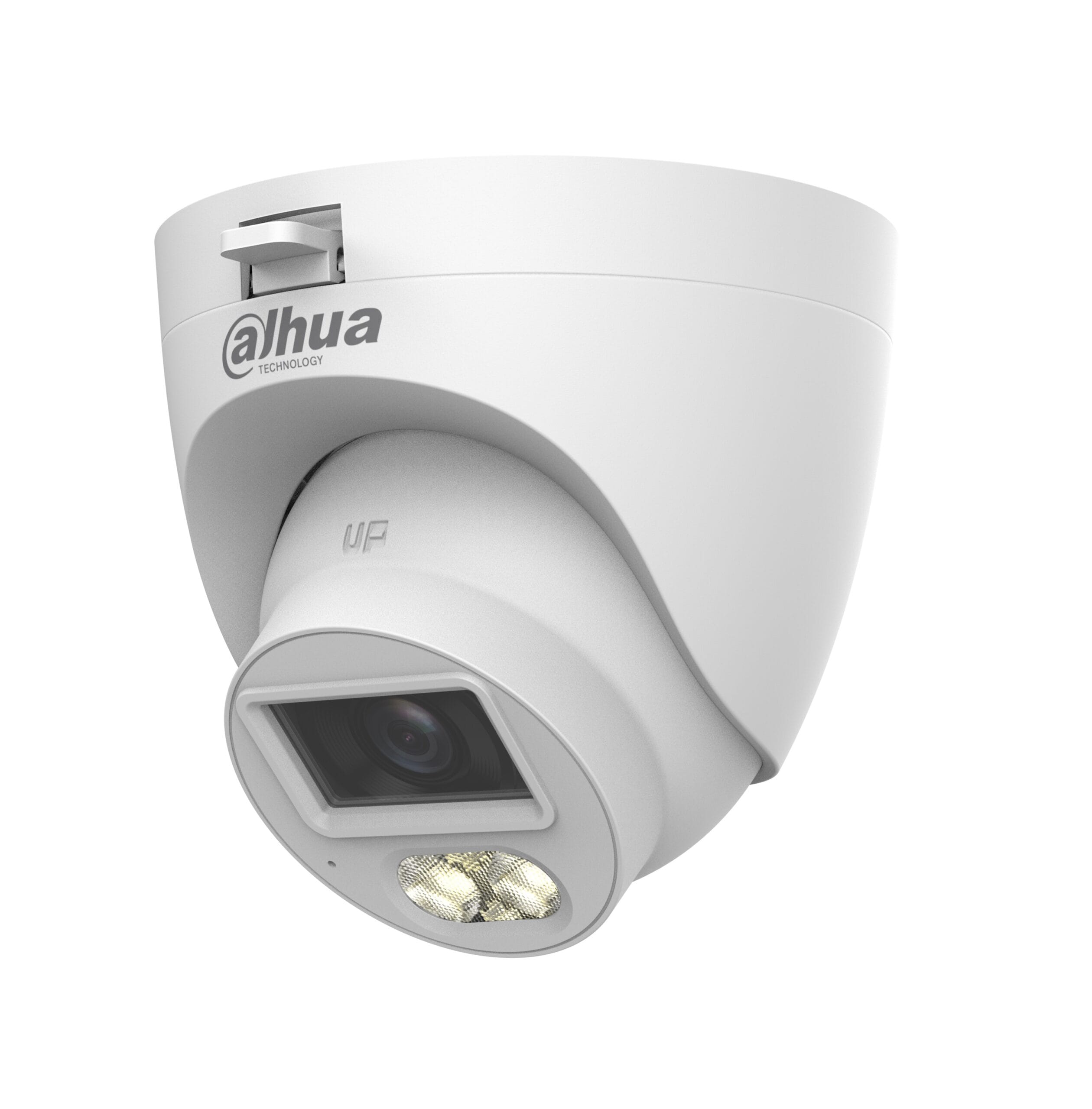

- Quick-to-install eyeball saves installation time.
- 2.8 mm
- CVI/CVBS/AHD/TVI switchable.
- IP67, 12 VDC.
Details:
Camera
- Image Sensor : 5 MP CMOS
- Max. Resolution : 2880 (H) × 1620 (V)
- Scanning System : Progressive
- Electronic Shutter Speed : PAL: 1/25 s–1/100000 s / NTSC: 1/30 s–1/100000 s
- Min. Illumination : 0.01 lux@F1.6 (Color, 30 IRE) / 0.001 lux@F1.6 (B/W, 30 IRE) / 0 lux (Illuminator on)
- S/N Ratio : >65 dB
- Illumination Distance : IR: 30 m / Warm light: 30 m
- Illuminator On/Off Control : Auto
- Illuminator Number : 2 (Multi-core light)
Lens
- Lens Type : Fixed-focal
- Auto Focus : No
- Lens Mount : M12
- Focal Length : 2.8 mm; 3.6 mm
- Max. Aperture : F1.6
- Field of View : 2.8 mm: H: 113.3°; V: 62.1°; D: 134.3° / 3.6 mm: H: 90.1°; V: 47.8°; D: 109.3°
- Iris Control : Fixed
- Close Focus Distance : 2.8 mm: 0.8 m / 3.6 mm: 1.3 m
Video
- Video Frame Rate : CVI: PAL: 5M@25 fps; 5M@12.5 fps; 4M@25 fps; 1080p@25 fps; NTSC: 5M@25 fps; 5M@20 fps; 5M@10 fps; 4M@30 fps; 1080p@30 fps / AHD: PAL: 4M@25 fps; NTSC: 4M@30 fps / TVI: PAL: 5M 16:9@20 fps; NTSC: 5M 16:9@20 fps / CVBS: PAL: 960H; NTSC: 960H
- Resolution : 5M (2880 × 1620); 4M (2560 × 1440); 1080p (1920 × 1080); 960H (960 × 576/960 × 480); TVI 5M 16:9 (2960 × 1665)
- Day/Night : Auto(ICR)/Color/B/W
- BLC : BLC; HLC; WDR
- WDR : DWDR
- White Balance : Auto;Area white balance
- Gain Control : Auto
- Noise Reduction : 3D NR
- Illumination Mode : Smart IR&WL; WL Mode; IR Mode
- Mirror : Yes
- Privacy Masking : Off/On (8 areas, rectangle)
Pick-up Distance : 8 m
Certification
- Certifications : CE-LVD: EN 62368-1; / CE-EMC: EN 55032; EN 55035
Audio
- Built-in Mic : Yes
- Camera Audio : CVI; TVI
Port
- Video Output : Video output choices of CVI/TVI/AHD/CVBS by one BNC port (DIP Switch)
- Audio Input : 1 channel built-in mic
Power
- Power Supply : 12 VDC ± 30%
- Power Consumption : Max 4.3W (12 VDC, WLED on)
Environment
- Operating Temperature : –40 °C to +60 °C
- Operating Humidity : <95% (RH), non-condensing
- Storage Temperature : –40 °C to +60 °C
- Storage Humidity : <95% (RH), non-condensing
- Protection : IP67
Anti-corrosion Level : Basic Protection
Structure
- Casing Material : Plastic
- Product Dimensions : Φ97.4 mm × 92.9 mm
- Net Weight : 0.22 kg
- Gross Weight : 0.29 kg
- Installation : Wall mount; ceiling mount; vertical pole mount
