- 12-MP 1/2.5" CMOS image sensor, low luminance, and high definition
- image.
- Outputs max. 12 MP (4480 × 2512)@15 fps, and supports 5 MP
- (3072 × 1728)@25/30 fps.
- H.265 codec, high compression rate, ultra-low bit rate.
- Built-in multi-core light, the max. IR distance is 30 m and the max. warm
- light distance is 30 m.
- Rotation mode, DWDR, 3D NR, HLC, BLC, digital watermarking,
- applicable to various monitoring scenes.
- ROI, SMART H.264+/H.265+, flexible coding, applicable to various
- bandwidth and storage environments.
- Intelligent monitoring: Intrusion, tripwire (the two functions support the
- classification and accurate detection of vehicle and human).
- Abnormality detection: Motion detection, video tampering, audio
- detection, no SD card, SD card full, SD card error, network
- disconnection, IP conflict, illegal access, and voltage detection.
- Alarm: 1 in, 1 out(Only – AS supports); audio: 1 in, 1 out(Only – AS
- supports); supports max. 256 G Micro SD card; built in Mic.
- 12 VDC/PoE power supply, easy for installation.
- IP67, IK10 (optional) protection.
- SMD Plus.

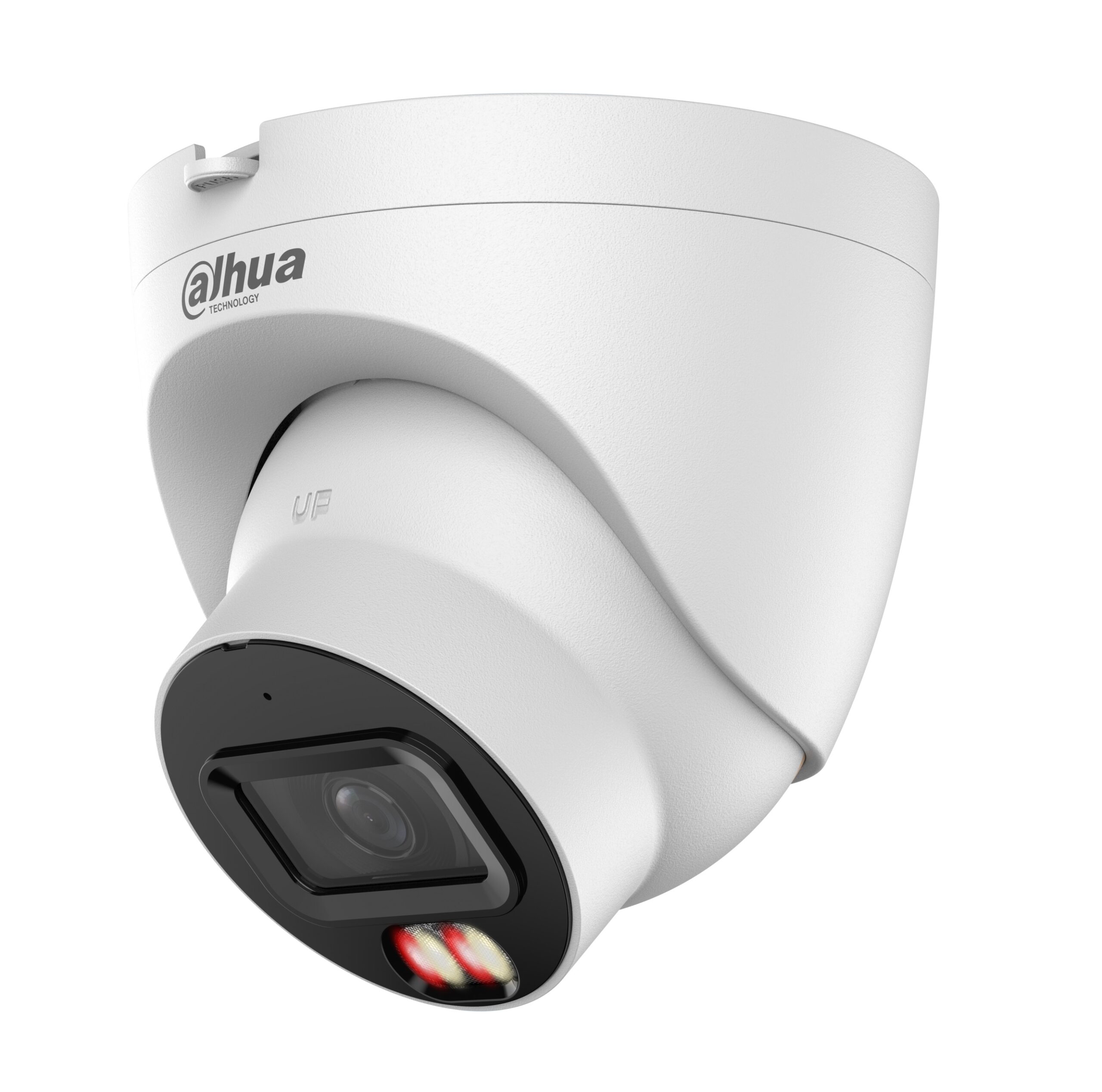

Dahua IP 12.0MP Dome 2.8mm Smart Dual Light WDR HDW21249T-S-IL-0280B
334,00 €
Out of stock
Out of stock
Pairs well with
Popular add-ons for this product
- In stock · delivery across CyprusFree pickup in LimassolOriginal price was: 15,99 €.13,99 €Current price is: 13,99 €.Add to cart
- Code: 27470
- Length: 1 m
- Power: 100W
In stock · delivery across CyprusFree pickup in Limassol10,99 €Add to cart
More options
Similar IP Cameras & NVR in a similar price range
Specifications
Camera11
- Image Sensor
- 1/2.5" CMOS
- Max. Resolution
- 4480 (H) × 2512 (V)
- ROM
- 128 MB
- RAM
- 256 MB
- Scanning System
- Progressive
- Electronic Shutter Speed
- Auto/Manual 1/3 s–1/100,000 s
- Min. Illumination
- 0.008 lux@F1.6 (Color, 30 IRE) / 0.0008 lux@F1.6 (B/W, 30 IRE) / 0 lux (Illuminator on)
- S/N Ratio
- >56 dB
- Illumination Distance
- / Up to 30 m (98.43 ft) (Warm light) / Up to 30 m (98.43 ft) (IR)
- Illuminator On/Off Control
- Auto; Manual
- Illuminator Number
- 4 (Multi-core (IR + warm) light)
Lens7
- Lens Type
- Fixed-focal
- Lens Mount
- M12
- Focal Length
- 2.8 mm; 3.6 mm
- Max. Aperture
- F1.6
- Field of View
- 2.8 mm: H: 112°; V: 58°; D: 136°
- Iris Control
- Fixed
- Close Focus Distance
- 2.8 mm: 3.5 m (11.48 ft)
Intelligence3
- IVS (Perimeter Protection)
- Intrusion, tripwire (supports vehicle and human classification and accurate detection)
- SMD
- SMD Plus
- Smart Search
- Works with Smart NVR to refine intelligent search, event extraction, and merging of event videos
Video25
- Video Compression
- H.265; H.264; H.264H; H.264B; MJPEG (only supported by sub stream)
- Smart Codec
- Smart H.265+; Smart H.264+
- Video Frame Rate:
- Main stream
- 4480 × 2512@(1–15 fps) / 3072 × 1728@(1–25/30 fps)
- Sub stream
- 704 × 576@(1–25 fps) / 704 × 480@(1–30 fps)
- Values above are maximum per stream; total limited by encoding capacity.
- Streaming Capability
- 2 streams
- Resolution
- 12M (4480 × 2512); 8M (3840 × 2160); 6M (3072 × 2048); 5M (3072 × 1728/2880 × 1620); 4M (2688 × 1520); 3M (2048 × 1536/2304 × 1296); 1080p (1920 × 1080);
- Bit Rate Control
- VBR; CBR
- Video Bit Rate
- H.264: 32 kbps–8192 kbps; H.265: 12 kbps–8192 kbps
- Day/Night
- Auto (ICR)/Color/B/W
- BLC
- Yes
- HLC
- Yes
- WDR
- DWDR
- White Balance
- Auto; natural; street lamp; outdoor; manual; regional custom
- Gain Control
- Auto/Manual
- Noise Reduction
- 3D NR
- Motion Detection
- OFF/ON (4 areas, rectangular)
- Region of Interest (RoI)
- Yes (4 areas)
- Smart Illumination
- Yes
- Smart Dual Light
- Yes
- Image Rotation
- 0°/90°/180°/270° (Supports 90°/270° with 2688 × 1520 resolution and lower)
- Mirror
- Yes
- Privacy Masking
- 4 areas
- LDC
- Yes
Audio2
- Built-in MIC
- Yes, built-in Mic
- Audio Compression
- G.711a; G.711Mu; PCM; G.726
Alarm1
- Alarm Event
- No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; audio detection; voltage detection; SMD; security exception; external alarm (Only -AS supports)
Network10
- Network Port
- RJ-45 (10/100 Base-T)
- SDK and API
- Yes
- Network Protocol
- IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; P2P; Bonjour; Auto Registration
- Interoperability
- ONVIF (Profile S & Profile G & Profile T); CGI
- User/Host
- 20 (Total bandwidth: 48 M)
- Storage
- FTP; SFTP; Micro SD card (support max. 256 GB); NAS
- Browser
- IE; Chrome; Firefox
- Management Software
- Smart PSS Lite; DSS; DMSS
- Mobile Client
- Android; iOS
- Security
- Session security; WSSE; Account lockout; Trusted execution; Generation and importing of X.509 certification; 802.1x; Security logs; Digest; Security warning; IP/MAC filtering; HTTPS; Trusted upgrade; Syslog; Trusted boot
Certification1
- Certifications
- CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
Port4
- Audio Input
- 1 channel (RCA port) (Only -AS supports)
- Audio Output
- 1 channel (RCA port) (Only -AS supports)
- Alarm Input
- 1 channel in: wet contact, 5 mA 3–5 VDC (Only -AS supports)
- Alarm Output
- 1 channel out: wet contact, 300 mA 12 VDC (Only -AS supports)
Power4
- Power Supply
- 12 VDC (±30%); PoE (802.3af)
- Power Consumption:
- Basic
- 2.3 W (12 VDC); 3.0 W (PoE)
- Max.
- 8.7 W (12 VDC); 10.1 W (PoE) (H.265 + intelligence on + illuminator intensity)
Environment5
- Operating Temperature
- –40 °C to +60 °C (–40 °F to +140 °F)
- Operating Humidity
- ≤95% (RH), non-condensing
- Storage Temperature
- –40 °C to +60 °C (–40 °F to +140 °F)
- Storage Humidity
- ≤95% (RH), non-condensing
- Protection
- IP67; IK10 (optional)
Structure3
- Casing Material
- Inner core: Metal; / Cover: PlasticProduct Dimensions: 109.5 mm × Φ109.9 mm
- Net Weight
- 0.38 kg
- Gross Weight
- 0.52 kg
