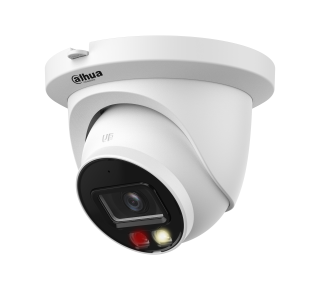

Dahua IP 2.0MP Dome Smart Dual Light 2.8mm True WDR IVS AI Features (SMD,Perimeter Protection, Smart Search) HDW2249TM-S-IL
Dahua IR Camera Led Illuminator PFM522P-D1-IR Dahua IR Camera Led Illuminator PFM522P-D1-IR Original price was: 111,00 €.Current price is: 39,00 €.
Sale!

Dahua IP 2.0MP Dome Smart Dual Light 2.8mm True WDR IVS AI Features (SMD,Perimeter Protection, Smart Search) HDW2249TM-S-IL

Original price was: 215,00 €.Current price is: 95,00 €.

-56%
You save 120,00 €
Out of stock
5.0 on Google · 12+ reviews

Out of stock

Free delivery on small items with orders over €50

Guaranteed Safe Checkout
Dahua IP 2.0MP Dome Smart Dual Light 2.8mm True WDR IVS AI Features (SMD,Perimeter Protection, Smart Search) HDW2249TM-S-IL
Dahua IP 2.0MP Dome Smart Dual Light 2.8mm True WDR IVS AI Features (SMD,Perimeter Protection, Smart Search) HDW2249TM-S-IL
215,00 € Original price was: 215,00 €.95,00 €Current price is: 95,00 €.

Or contact us directly:

📞 25 102 760
📱 96 401 000

Pairs well with

Popular add-ons for this product

More options

Similar IP Cameras & NVR in a similar price range

Specifications

Camera11
Image Sensor
1/2.8" CMOS
Max. Resolution
1920 (H) × 1080 (V)
ROM
128 MB
RAM
128 MB
Scanning System
Progressive
Electronic Shutter Speed
Auto/Manual 1/3 s–1/100,000 s
Min. Illumination
0.002 lux@F1.6 (Color, 30 IRE) / 0.0002 lux@F1.6 (B/W, 30 IRE) / 0 lux (Illuminator on)
S/N Ratio
>56 dB
Illumination Distance
30 m (IR), 30 m (Warm light)
Illuminator On/Off Control
Auto; manual
Illuminator Number
1 (IR LED),1 (Warm light)
Lens7
Lens Type
Fixed-focal
Lens Mount
M12
Focal Length
2.8 mm
Max. Aperture
F1.6
Field of View
2.8mm:  H: 107°; V: 56°; D: 127°
Iris Control
Fixed
Close Focus Distance
2.8 mm: 0.7 m
Intelligence2
IVS (Perimeter Protection)
Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)
Smart Search
Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
Video19
Video Compression
H.264H; H.265; H.264; H.264B; MJPEG (Only supported by the sub stream)
Smart Codec
Smart H.265+; Smart H.264+
Video Frame Rate
Main stream: 1920 × 1080@(1–25/30 fps) Sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps)
Stream Capability
2 streams
Resolution
1080p (1920 × 1080) / 1.3M (1280 × 960) /  720p (1280 × 720) / D1 (704 × 576/704 × 480) /  VGA (640 × 480) /  CIF (352 × 288/352 × 240)
Bit Rate Control
CBR/VBR
Video Bit Rate
H.264: 32 kbps–6144 kbps / H.265: 12 kbps–6144 kbps
Day/Night
Auto (ICR)/Color/B/W
BLC
Yes
HLC
Yes
WDR
120 dB
White Balance
Auto; natural; street lamp; outdoor; manual; regional custom
Gain Control
Auto; manual
Noise Reduction
3D NR
Motion Detection
OFF/ON (4 areas, rectangular)
Region of Interest (RoI)
Yes (4 areas)
Image Rotation
0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower)
Mirror
Yes
Privacy Masking
4 areas
Audio2
Built-in MIC
Yes
Audio Compression
G.711a; G.711Mu; PCM; G.726
Alarm1
Alarm Event
No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; voltage detection; security exception; SMD
Network10
Network Port
RJ-45 (10/100 Base-T)
SDK and API
Yes
Network Protocol
IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP
Interoperability
ONVIF (Profile S/Profile T); CGI; P2P; Milestone
User/Host
6 (Total bandwidth: 36 M)
Storage
FTP; SFTP; Micro SD card (support max. 256 GB)
Browser
IE / Chrome / Firefox
Management Software
DSS; DMSS
Mobile Client
iOS; Android
Cyber Security
Configuration encryption;Trusted execution;Digest;Security logs;WSSE;Account lockout;syslog;Video encryption;802.1x;IP/MAC filtering;HTTPS;Trusted upgrade;Trusted boot;Generation and importing of X.509 certification
Certification3
CE-LVD
EN 62368-1
CE-EMC
Electromagnetic Compatibility Directive 2014/30/EU
FCC
47 CFR FCC Part 15, Subpart B
Power3
Power Supply
12 VDC/PoE (802.3af)
Power Consumption
1.6 W (12 VDC); 1.9 W (PoE)
Max. (H.265 + intelligence on + WDR + warm light)
3.8 W (12 VDC); 4.4 W (PoE)
Environment4
Operating Temperature
–40 °C to +60 °C
Operating Humidity
≤95%
Storage Temperature
–40 °C to +60 °C
Protection
IP67
Structure4
Casing Material
Inner core: Metal; / Cover: Metal; / Decoration ring: Plastic
Product Dimensions
99.1 mm × Φ121.9 mm
Net Weight
0.46 kg
Gross Weight
0.65 kg
  • 2-MP 1/2.8" CMOS image sensor, low luminance, and high definition image
  • Outputs max. 2 MP (1920 × 1080)@25/30 fps
  • H.265 codec, high compression rate, ultra-low bit rate
  • Built-in warm light/IR LED, the max. illumination distance is 30 m and the max. warm light distance is 30 m
  • ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
  • Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
  • Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)
  • Supports max. 256 G Micro SD card; built in MIC
  • 12 VDC/PoE power supply, easy for installation
  • IP67 protection
  • SMD Plus
