Description:
- Industry leading uncooled VOx focal plane detector with high sensitivity
- Supports flame detection, cold and hot spot alarm and industrial temperature detection
- Supports sound and LED indication, and supports binocular fusion
- AI functions: smoke and flame shape detection, stereo analysis (smok ing detection), and IVS (Tripwire and Intrusion detection)
- Visible light adopts a 5MP 1/2.7 inch CMOS image sensor, which has good low illumination effect and high image clarity
- Support multi-level user management, humanized monitoring, and permission management
- Support H.265 encoding with high compression ratio, achieving ultra low bitstream transmission
- Support 3-way alarm input and 2-way alarm output functions, support max. 256 G Micro SD card
- Built in MIC and high volume speakers, high decibel alarm sound 70dB ≥ 1m (A-weighted)
- Built in high-efficiency infrared illuminator and white light, with a maximum illumincation distance of 50 meters
- Supports DC12V-24V/POE power supply
- IP67 Rated
Details:
General

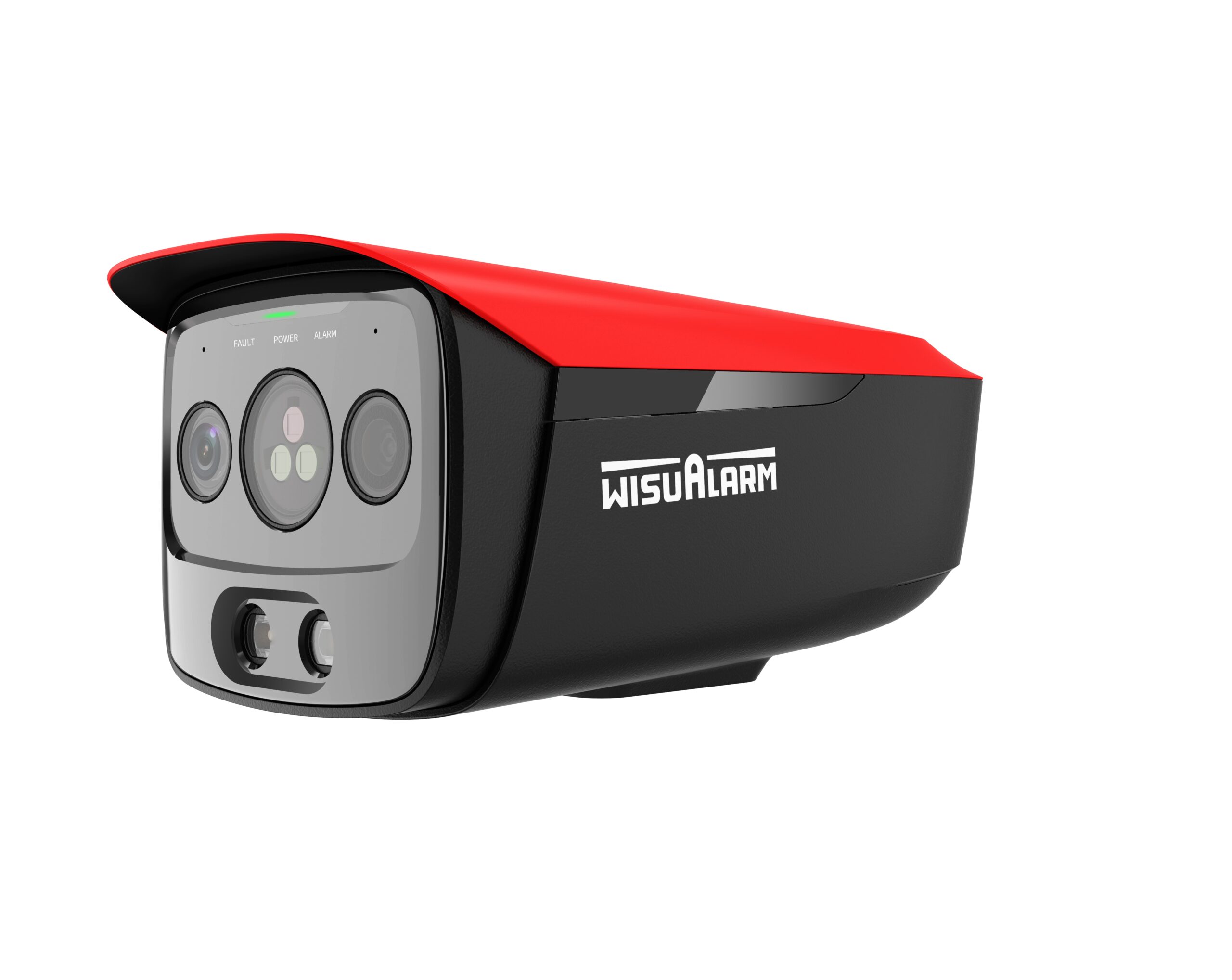

- Appearance : Bullet
- Type : Industrial Temperature Monitoring
- Triple IR Flame Detection : 3.8µm / 4.5µm / 5.0µm
- Detection Distance : 28m, target size:33cm*33cm / 20m, target size:20cm*20cm
- Sensitivity : 4-level settable
Thermal
- Detector Type : Vanadium oxide uncooled focal plane detector
- Effective Pixels : 256 (H) × 192 (V)
- Pixel Pitch : 12 μm
- Spectral Range : 8 μm–14 μm
- Sensitivity (NETD) : ≤50mK@f/1,300K,30Hz
- Focal Length : 3.2 mm (0.13'')
- Field of View : H: 57° / V: 44°
- Thermal Focus Control : Fixed-focal
- Close Focus Distance : 0.5 m (1.64 ft)
- Aperture : F1.1
- Thermal Noise Reduction : 3D NR
- Image Flip : Normal / corridor mode / reflection
- Color Palettes : 25 (Iron Red/Hot Iron/Medical/Arctic/Rainbow 1/Rainbow 2/Black Hot/Human Screening/Painting/Blue Hot/Green Hot/Medical 1/Medical 2/Medical 3/Rainbow 3/Painting 2/Painting 3/Icefire/Reverse Icefire/Layer/Brown/Winter/Highlight/Amber)
- Temperature Monitoring Distance : 1 m-5 m (3.28 ft-16.4 ft)
- Temperature Monitoring Range : -10°C to +500°C (+14°F to 932°F)
- Temperature Monitoring Accuracy : MAX (±5°C, ±5%)
- Temperature Detection Mode : 1. Support real-time point temperature detection function / 2. There are three rules for measuring temperature simultaneously: points, lines, and polygons / 3. Supports temperature alarm function / 4. The temperature detection unit is Fahrenheit and Celsius, which can be set
Flame Detection Distance
- Focal Length : 3.2 mm
- Distance : 35 m (114.83 ft) Note: The table displays the measured distances obtained from using the target size 20 cm x 20 cm (7.87" × 7.87") for testing in an environment where the temperature is 23 °C and the relative humidity is below 60%
- Temperature Detection Range
- Distance : Min. Distance: 1m(3.25ft) / Max.Distance: 5m(16.40ft) Note: The table displays the measured distances obtained from using the target size 10 cm x 10 cm (3.94" × 3.94") for testing in an environment where the temperature is 23 °C and the relative humidity is below 60%
Visible
- Image Sensor : 1/2.7" CMOS
- Max. Resolution : 2592(H)×1944(V)
- Pixel : 5 MP
- Scanning System : Progressive
- Min. Illumination : Color: 0.005 lux / B/W: 0.0005 lux / 0 lux (IR on)
- Visible AGC : Auto / Manual
- Visible Noise Reduction : 2D NR / 3D NR
- S/N Ratio : ≥ 55 dB
- White Balance : Automatic / Indoor / Outdoor / Tracking / Manual / Daylight / Streetlights
- Electronic Shutter Speed : 1 s to 1/30000 s (manual/auto)
- BLC : Yes
- WDR : DWDR
- HLC : Yes
- Day/Night : Auto (ICR)
- Iris Control : Fixed
- Image Flip : Normal (0°), Flip (90°/270°), Reflection (180°)
- Exposure Compensation : Yes
- Visible Focus Control : Fixed-focal
- Focal Length : 4 mm (0.16")
- Field of View : H: 78° / V: 41°
- Close Focus Distance : 1.7 m (5.58 ft)
- Aperture : F1.6
- Illuminator Type : Infrared
- Illuminator On/Off Control : Auto / Manual
- Illumination Distance : 50 m (160.04 ft)
Smoke and Flame Shape Detection
- Smoke Shape Detection : 30m / target size:0.1m²
- Flame Shape Detection : 30m / target size:0.1m²
Smoking Detection
- Distance : Recommend Distance: 3 m (9.84 ft) / Max.Distance: 5 m (16.4 ft)
Perimeter Protection Distance (IVS Distance)
- Distance (Vehicle) : 110 m (360.89 ft)
- Distance (Human) : 40 m (131.23 ft)
Audio and Video
- Video Compression : H.265 / H.264 / H.264H / H.264B / MJPEG
- Resolution : Main Stream: 5M (2592×1944) 4M / (2688×1520) / 1080P(1920×1080) (by default)/1.3M / (1280×960)/720P (1280×720) / Sub stream: D1 (704× 576)(by default)/VGA(640×480)/CIF (352×288)
- Video Frame Rate : Main Stream:1fps~25fps adjustable / 25fps by default / Sub stream: 1fps~25fps adjustable / 25fps by default
- Audio Compression : MPEG2-Layer2 / G.711a / G.711mu / AAC / PCM / G.722.1 / G.726
- Image Encoding Format : JPEG
- Audio Sampling : 8K / 16K
Function
- Built-in MIC : Yes
- Built-in Speaker : Yes
- Sound and Light Alarm : Yes
- Indicator : Status for Fault / Power / Alarm
- Network Protocol : HTTPS / HTTP / TCP / ARP / RTSP / RTP / UDP / RTCP / SMTP / FTP / DHCP / DNS / DDNS / PPPOE / IPv4/v6 / SNMP / QoS / UPnP / NTP
- Privacy Masking : Yes (4 areas)
- Storage : FTP / NAS / SFTP
- Interoperability : ONVIF / CGI / Dahua SDK / Wisualarm
- Browser : IE: IE 9 and later (Edge is not supported) / Chrome: 42 and earlier / Firefox: 42 and earlier
- User/Host : Up to 10 (total bandwidth: 1000 MB)
- Default : Support one-click restore
- Error Detection : Network Disconnection / IP Address Conflict
- Security : Username and password / MAC address / HTTPS / IEEE802.1x / network access control
- User Management : Supports up to 10 users / with multi-level / user permission management divided into 2 levels: management group and user group
- Malfunction Detection : Network disconnection detection / IP conflict detection
- Maximum Supported Micro SD Card : 256 GB
Intelligence
- Flame Detection : Yes
- Cold & Hot Spot Detection : Yes
- Temperature Alarm : Yes
- Advance Intelligence : Smoke and Flame Shape Detection / IVS (Tripwire and Intrusion detection) / Stereo Analysis (Smoking Detection) / Human & Vehicle Classification
Port
- Network Port : 1 RJ-45 Port / supports 10M/100M/1000M
- Alarm Input : 3-way wet node / supports DC 3-5V / 5mA
- Alarm Output : 2-way (dry contact / supports maximum 30V / 1A current/ maximum for AC50V potential, 0.5A current)
- Audio Input : 1 channel (RCA connector)
- Audio Output : 1 channel (RCA connector)
- Alarm Linkage : Trigger switch Output / Email / Snapshot
Power
- Operating Voltage : DC12-24V (±30%) / POE (802.3af)
- Power Supply : DC12V-24V/POE
- Power Consumption : Basic: 4.2W (DC12V) / Max.: 13.1W (DC12V)
Environment
- Operating Temperature : –40°C to +60°C (-40°F to +140°F)
- Operating Humidity : ≤ 95%
Construction
- Protection : IP67
- Product Dimensions : 271.0 mm×123.2 mm×109.5 mm (10.67 × 4.85" ×4.31" )
- Packaging Dimensions : 366.0 mm×176.0 mm×178.0 mm (14.41" × 6.93" × 7.01")(L × W × H)
- Net Weight : 1.71 kg (3.77 lb)
- Gross Weight : 1.99kg (24.39 lb)
- Installation : Wall mount / Ceiling mount / Pole mount
- Power Adapter : Optional
- Lens : Standard
