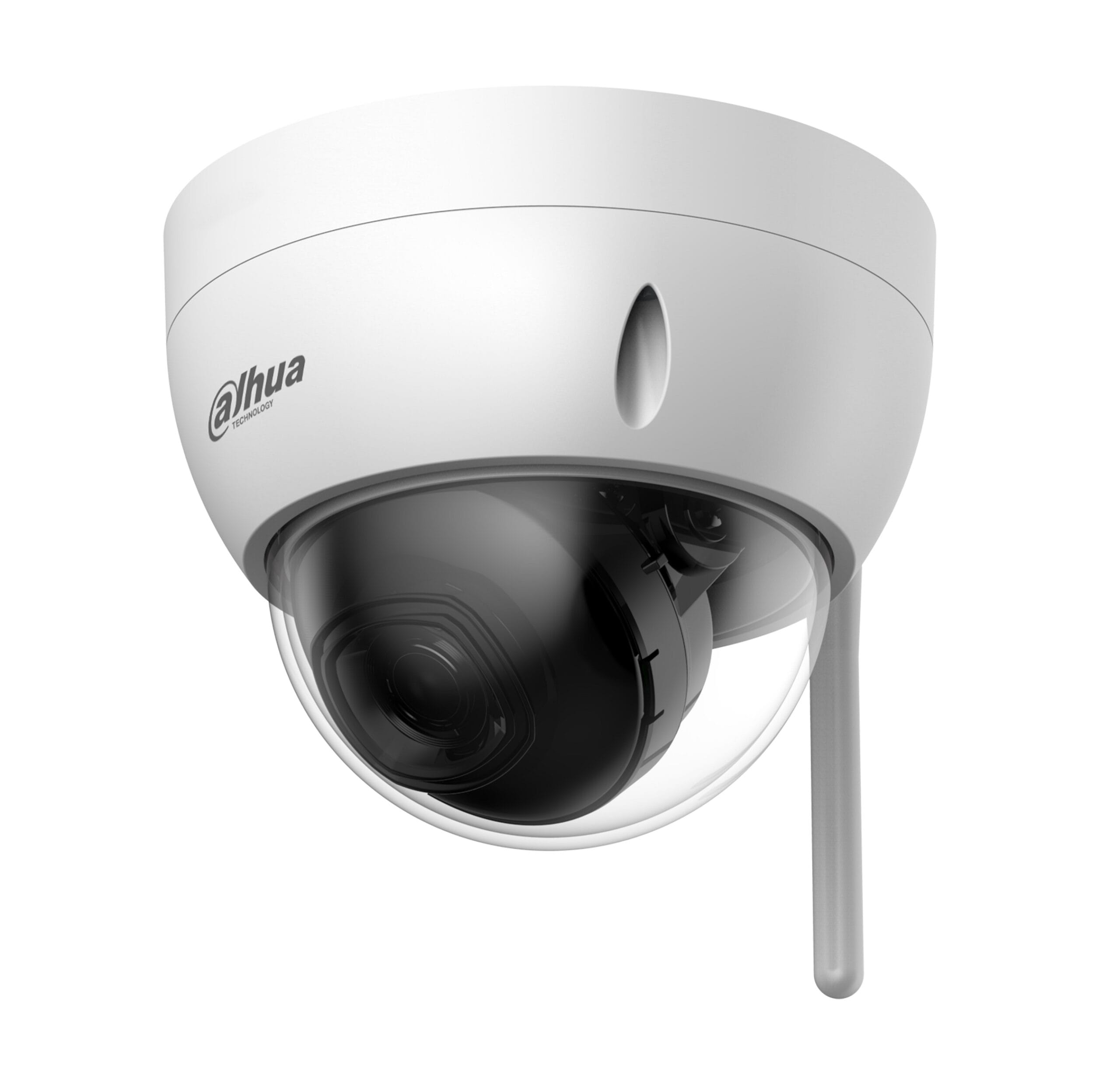

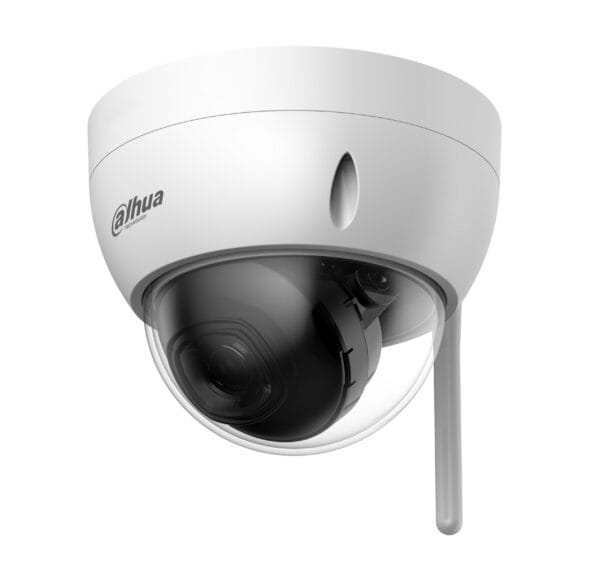

Dahua IP 4.0MP Wifi Dome 2.8mm HDBW1430DE-SW
Add to cart
Reolink Solar Panel 2 for Reolink Battery Cameras (Type-C/Micro USB adaptor) Reolink Solar Panel 2 for Reolink Battery Cameras (Type-C/Micro USB adaptor) 29,99 €
Anker Eufy Backup Battery Base for HomeBase 2 Anker Eufy Backup Battery Base for HomeBase 2 49,99 €

Dahua IP 4.0MP Wifi Dome 2.8mm HDBW1430DE-SW

186,00 €

In stock · delivery across CyprusFree pickup in Limassol
5.0 on Google · 12+ reviews
Add to Cart
Dahua IP 4.0MP Wifi Dome 2.8mm HDBW1430DE-SW
Dahua IP 4.0MP Wifi Dome 2.8mm HDBW1430DE-SW
186,00 €

Free store pick-up in Limassol · Delivery across Cyprus from €2

Dahua IP 4.0MP Wifi Dome 2.8mm HDBW1430DE-SW
Dahua IP 4.0MP Wifi Dome 2.8mm HDBW1430DE-SW
186,00 €

Or contact us directly:

📞 25 102 760
📱 96 401 000

Pairs well with

Popular add-ons for this product

More options

Similar Cloud IP Cameras in a similar price range

Specifications

Camera11
Image Sensor
1/3" CMOS
Max. Resolution
2560 (H) × 1440 (V)
ROM
16 MB
RAM
64 MB
Scanning System
Progressive
Electronic Shutter Speed
Auto/Manual 1/3 s–1/100,000 s
Min. Illumination
0.025 lux@F2.0 (Color,30 IRE) / 0.0025 lux@F2.0 (B/W,30 IRE) / 0 lux (Illuminator on)
S/N Ratio
>56 dB
Illumination Distance
30 m (IR LED)
Illuminator On/Off Control
Auto; Manual
Illuminator Number
3 (IR LED)
Lens7
Lens Type
Fixed-focal
Lens Mount
M12
Focal Length
2.8 mm
Max. Aperture
F2.0
Field of View
2.8 mm : Horizontal: 90°; Vertical: 50°; Diagonal: 107°
Iris Control
Fixed
Close Focus Distance
2.8 mm: 1.0 m
Video18
Video Compression
H.264B; H.264; H.264H; H.265
Smart Codec
Smart H.265+;Smart H.264+
Video Frame Rate
Main stream : 2560 × 1440@ (1–20 fps) / Sub stream:704 × 576@ (1–25 fps) / 704 × 480@ (1–30 fps) The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity
Stream Capability
2 streams
Resolution
2560 × 1440 (2560 × 1440); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M(1280 × 960); 720p (1280 × 720)
Bit Rate Control
CBR/VBR
Video Bit Rate
H264 : 24 kbps–4096 kbps / H265 : 9 kbps–4096 kbps
Day/Night
Auto (ICR)/Color/B/W
BLC
Yes
WDR
DWDR
White Balance
Auto; natural; street lamp; outdoor; manual; regional custom
Gain Control
Auto
Noise Reduction
3D NR
Motion Detection
OFF/ON (4 areas, rectangular)
Region of Interest (RoI)
Yes (4 areas)
Smart Illumination
Yes
Image Rotation
0°/180°
Mirror
Yes
Alarm1
Alarm Event
No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; SMD (human)
Network12
Network Port
RJ-45 (10/100 Base-T)
Wi-Fi
IEEE802.11b/g/n 2.4–2.4835 GHz
Wireless Range
Up to 80 m (The performance varies based on actual environment)
SDK and API
Yes
Cyber Security
Video encrypton; confguraton encrypton; Digest; WSSE; account lockout; security logs; generaton and importng of X.509 certfcaton; HTTPS; trusted boot; trusted executon; trusted upgrade
Network Protocol
IPv4; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; DHCP; DNS; NTP; Multicast;RTMP
Interoperability
ONVIF (Profile S/Profile G); CGI; P2P
User/Host
6 (Total bandwidth: 36 M)
Storage
Micro SD card (support max. 256 GB, sold separately)
Browser
IE/Chrome/Firefox
Management Software
Smart PSS; DSS; DMSS
Mobile Client
iOS; Android
Certification5
CE-LVD
EN62368-1;
CE-EMC
Electromagnetic Compatibility Directive 2014/30/EU;
CE-RED
Radio Equipment Directive 2014/53/EU;
FCC
47 CFR FCC Part 15, Subpart B;
FCC ID
FCC PART 15C
Power2
Power Supply
12 VDC
Power Consumption
Basic: 2 W (12 VDC) / Max. (H.265+IR intensity): 4.9 W (12 VDC)
Environment4
Operating Temperature
–40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity
≤95%
Storage Temperature
–30 °C to +60 °C (–22 °F to +140 °F)
Protection
IP67; IK10
Structure3
Casing
Metal
Product Dimensions
Φ110.7 mm × 88.7 mm
Net Weight
414 g
  • 4-MP 1/3" CMOS image sensor, low luminance, and high definition image
  • Outputs max. 4 MP (2560 × 1440)@20 fps, and max. supports 3 MP (2304 × 1296)@25/30 fps
  • H.265 codec, high compression rate, ultra-low bit rate.
  • Built-in IR LED
  • SMART H.264 +/H.265+, flexible coding, applicable to various band width and storage environments
  • DWDR, 3D NR, BLC, digital watermarking, applicable to various monitoring scenes
  • Abnormality detection: Motion detection, video tampering, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, SMD (human)
  • Supports single antenna 2.4G Wi-Fi that covers a range of up to 80 m in an open area
  • Supports max. 256 G Micro SD card
  • 12 VDC power supply
  • IP67, IK10 protection

Additional information

Megapixel

4MP

SKU: 23676 Categories: , Brand:
