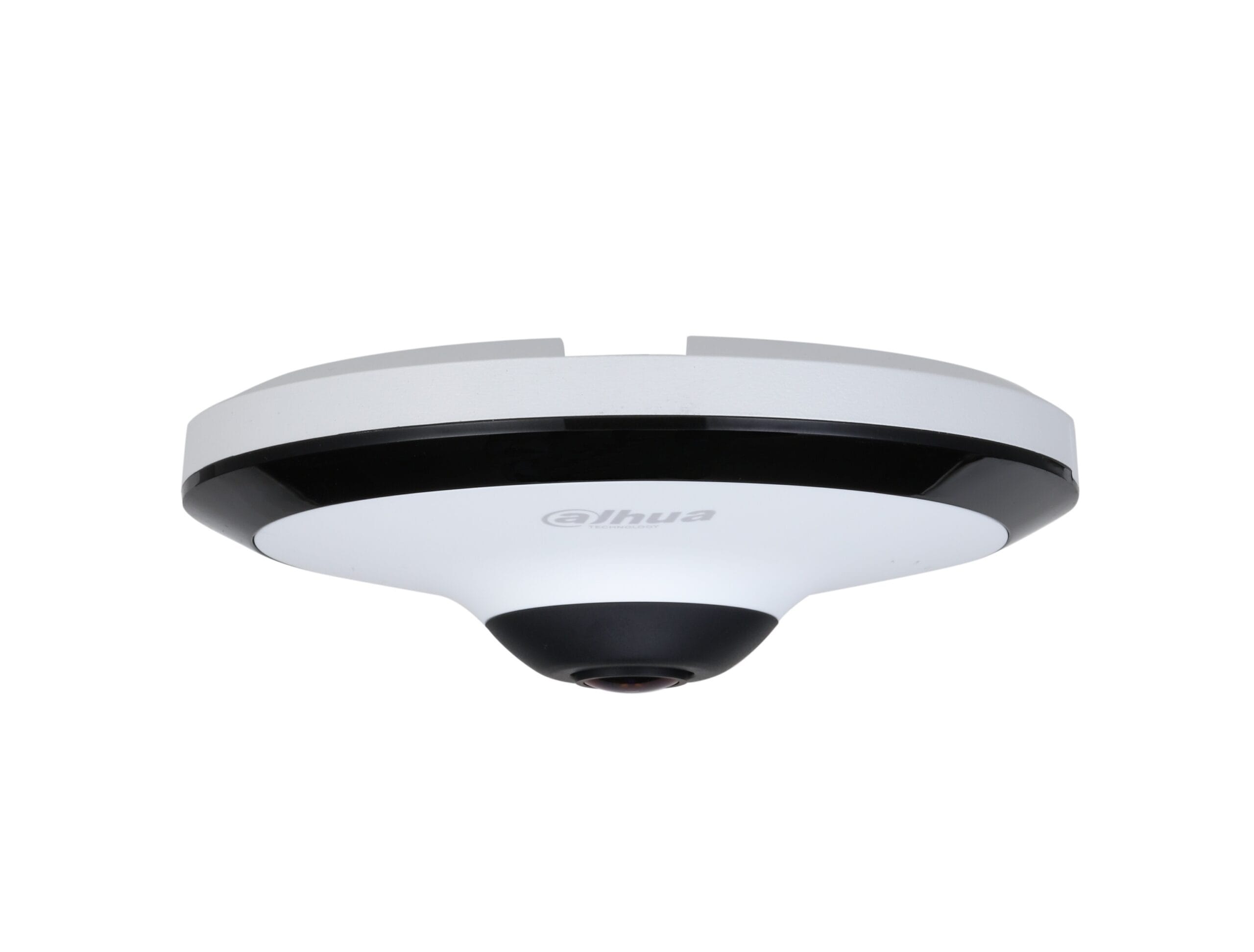

Dahua IP 5MP Panoramic Fisheye Camera EW5541-AS
Dahua IP 2.0MP Bullet 2.8mm True WDR IVS AI Features (SMD,Perimeter Protection, Smart Search) HFW2241S-S Dahua IP 2.0MP Bullet 2.8mm True WDR IVS AI Features (SMD,Perimeter Protection, Smart Search) HFW2241S-S Original price was: 166,00 €.Current price is: 118,00 €.
Dahua HDCVI 8.0MP Dome 2.8mm HDW1800M Dahua HDCVI 8.0MP Dome 2.8mm HDW1800M Original price was: 95,00 €.Current price is: 49,00 €.
Sale!

Dahua IP 5MP Panoramic Fisheye Camera EW5541-AS

Original price was: 459,00 €.Current price is: 305,00 €.

-34%
You save 154,00 €
Out of stock
5.0 on Google · 12+ reviews

Out of stock

Free delivery on small items with orders over €50

Guaranteed Safe Checkout
Dahua IP 5MP Panoramic Fisheye Camera EW5541-AS
Dahua IP 5MP Panoramic Fisheye Camera EW5541-AS
459,00 € Original price was: 459,00 €.305,00 €Current price is: 305,00 €.

Or contact us directly:

📞 25 102 760
📱 96 401 000

Pairs well with

Popular add-ons for this product

More options

Similar IP Cameras & NVR in a similar price range

Specifications

Camera10
Image Sensor
1/2.7” 5Megapixel progressive scan CMOS
Effective Pixels
2592(H)x1944(V)
RAM/ROM
512MB/128MB
Scanning System
Progressive
Electronic Shutter Speed
Auto/Manual, 1/3~1/100000s
Minimum Illumination
0.006 Lux@F2.0 (Color, 30IRE) / 0.0006 Lux@F2.0 (B/W, 30IRE) / 0 Lux (Illuminator on)
S/N Ratio
More than 56dB
Illumination Distance
10 m
Illuminator On/Off Control
Auto/Manual
Illuminator Number
3 (IR LED)
Lens6
Lens Type
Fixed
Mount Type
Board-in
Focal Length
1.4mm
Max. Aperture
F2.0
Angle of View
H: 180°, V: 180°,D: 180°
Close Focus Distance
0.2m
Smart Event1
Heat Map
Yes
Professional, intelligent3
IVS (Perimeter Protection)
Tripwire; intrusion
People Counting
Support people counting in area, and displaying and outputting yearly/monthly/daily reports (matching devices are needed); support people counting in 4 areas
Intelligent Search
Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
Video19
Compression
H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)
Smart Codec
Smart H.265+/ Smart H.264+
Streaming Capability
3 Streams
Resolution
5M(2592×1944)/3M(2048×1536)/UXGA(1600×1200)/1.3M(1280×960)/D1(704×576/704×480)/CIF(352×288/352×240)
Frame Rate
Main Stream:5M(1~25fps) / Sub Stream: D1(1~25/30fps)
Bit Rate Control
CBR/VBR
Bit Rate
H.264: 3 kbps–8192 kbps / H.265: 3 kbps–8192 kbps
Day/Night
Auto (ICR)/Color/B/W
BLC
Yes
HLC
Yes
WDR
120 dB
White Balance
Auto/Natural/Street Lamp/Outdoor/Manual
Gain Control
Auto/Manual
Noise Reduction
3D DNR
Motion Detetion
Off / On (4 Zone, Rectangle)
Region of Interest
Off / On (4 Zone)
Scene Self-adaptation (SSA)
Yes
Smart Illumination
Yes
Privacy Masking
4 areas
Audio2
Built-in MIC
Yes
Compression
G.711a/ G.711Mu/ AAC/ G.726
Alarm1
Alarm Event
No SD card; SD card full; SD card error; service life warning (supported by Dahua card); network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; voltage detection; external alarm; people counting in area; stay alarm; people counting; people No. exception detection; safety exception
Network9
SDK and API
Yes
Protocol
IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP
Cyber Security
Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade
Interoperability
ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; Genetec; P2P
User/Host
20 (Total bandwidth: 64 M)
Storage
FTP; SFTP; Micro SD card (support max. 256 G); NAS
Browser
IE: IE8, IE9 and IE11 / Chrome / Firefox
Management Software
Smart PSS; DSS; DMSS
Mobile Phone
IOS; Android
Certifications4
CE-LVD
EN62368-1
CE-EMC
Electromagnetic Compatibility Directive 2014/30/EU
FCC
47 CFR FCC Part 15, Subpart B
UL/CUL
UL60950-1 CAN/CSA C22.2 No.60950-1-07
Port4
Audio Input
1 channel (RCA port)
Audio Output
1 channel (RCA port)
Alarm Input
1 channel in: 5mA 3V–5V DC
Alarm Output
1 channel out: 300mA 12V DC
Electrical2
Power Supply
DC12V, PoE
Power Consumption
Basic power consumption: 3.6W (12V DC); 4.4W (PoE) / Max. power consumption (H.265 + IR on+ intelligent function + WDR): 7.3W (12V DC); 8.8W (PoE)
Environmental2
Operating Conditions
-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Strorage Conditions
-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Construction4
Casing
Metal + plastic
Dimensions
44.6 mm × Φ126.2 mm
Net Weight
0.299Kg
Gross Weight
0.441Kg
  • 5MP, 1/2.7” CMOS image sensor, low illuminance, high image definition
  • Outputs max. 5MP (2592 × 1944) @25/30 fps
  • H.265 codec, high compression rate, ultra-low bit rate
  • Built-in efficient IR illuminator, and the max. illumination distance: 10 m
  • ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
  • 120dB WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
  • Intelligent detection: Intrusion, tripwire, people counting in area
  • Abnormality detection: Motion detection, video tampering, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection
  • Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card, built-in Mic
  • 12V DC/PoE power supply, easy for installation
  • Heat map for people counting. You can adjust the number of people, time threshold to generate a heat map, which can be exported
SKU: 22961 Categories: , Brand:
