- 8-MP 1/2.7" CMOS image sensor, low luminance, and high definition image.
- Outputs max. 8 MP (3840 × 2160) @20 fps, and supports 2688 × 1520@25/30 fps.
- H.265 codec, high compression rate, ultra-low bit rate.
- Built-in IR LED and warm light, the max. IR illumination distance is 30 m and warm light distance is 30 m.
- Rotation mode, DWDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
- ROI, SMART H.264 +/H.265+, flexible coding, applicable to various bandwidth and storage environments.
- Rotation mode, DWDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
- Built in Mic.
- 12 VDC/PoE power supply,
- IP67 protection.
- Supports human detection.

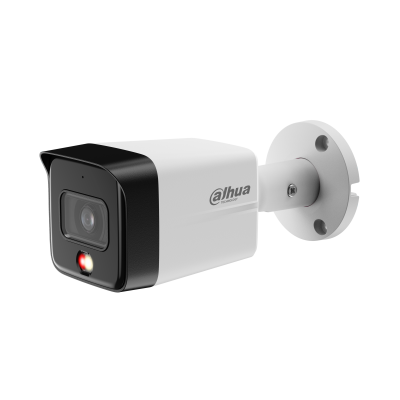

Dahua IP 8.0MP Bullet 2.8mm Dual Illumination WDR HFW1839TC-A-IL-S6
223,00 €
Out of stock
Out of stock
Pairs well with
Popular add-ons for this product
- In stock · delivery across CyprusFree pickup in LimassolOriginal price was: 15,99 €.13,99 €Current price is: 13,99 €.Add to cart
- Code: 27470
- Length: 1 m
- Power: 100W
In stock · delivery across CyprusFree pickup in Limassol10,99 €Add to cart
More options
Similar IP Cameras & NVR in a similar price range
Specifications
Camera11
- Image Sensor
- 1/2.7" CMOS
- Max. Resolution
- 3840 (H) × 2160 (V)
- ROM
- 128 MB
- RAM
- 256 MB
- Scanning System
- Progressive
- Electronic Shutter Speed
- Auto/Manual 1/3 s–1/100,000 s
- Min. Illumination
- 0.005 lux@F1.6 (Color,30 IRE) / 0.0005 lux@F1.6 (B/W,30 IRE) / 0 lux (Illuminator on)
- S/N Ratio
- >56 dB
- Illumination Distance
- Up to 30 m (IR LED) / Up to 30 m (Warm light)
- Illuminator On/Off Control
- Auto;Manual
- Illuminator Number
- 1 (IR LED); 1 (Warm light)
Lens7
- Lens Type
- Fixed-focal
- Lens Mount
- M12
- Focal Length
- 2.8 mm
- Max. Aperture
- F1.6
- Field of View
- 2.8 mm: H: 110°; V: 58°; D: 132°
- Iris Control
- Fixed
- Close Focus Distance
- 2.8 mm: 1.5 m
Intelligence2
- Human Detection
- Support the classification and accurate detection of human
- Smart Search
- Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
Video20
- Video Compression
- H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)
- Smart Codec
- Smart H.265+; Smart H.264+
- Video Frame Rate
- Main stream: 3840 × 2160@(1–20 fps)/2688 × 1520@(1–25/30 fps) / Sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps)
- Stream Capability
- 2 streams
- Resolution
- 8M (3840 × 2160); 6M (3072 × 2048); 5M (3072 × 1728); 4M (2880 × 1620/2688 × 1520); 3M (2048 × 1536/2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
- Bit Rate Control
- CBR/VBR
- Video Bit Rate
- H.264: 32 kbps–8192 kbps / H.265: 12 kbps–8192 kbps
- Day/Night
- Auto(ICR)/Color/B/W
- BLC
- Yes
- HLC
- Yes
- WDR
- 120dB
- White Balance
- Auto; natural; street lamp; outdoor; manual; regional custom
- Gain Control
- Auto;Manual
- Noise Reduction
- 3D NR
- Motion Detection
- OFF/ON (4 areas, rectangular)
- Region of Interest (RoI)
- Yes (4 areas)
- Smart Illumination
- Yes
- Image Rotation
- 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower)
- Mirror
- Yes
- Privacy Masking
- 4 areas
Audio2
- Built-in MIC
- Yes, built-in Mic
- Audio Compression
- G.711a; G.711Mu; PCM; G.726
Alarm1
- Alarm Event
- Network disconnection; IP conflict; illegal access; motion detection; video tampering; audio detection; SMD (human); security exception
Network10
- Network Port
- RJ-45 (10/100 Base-T)
- SDK and API
- Yes
- Network Protocol
- IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP; P2P
- Interoperability
- ONVIF (Profile S; Profile T); CGI
- User/Host
- 20 (Total bandwidth: 48 M)
- Storage
- FTP
- Browser
- IE; Chrome; Firefox
- Management Software
- Smart PSS Lite; DSS; DMSS
- Mobile Client
- iOS;Android
- Cyber Security
- Configuration encryption;trusted execution;Digest;security logs;HTTPS;trusted upgrade;WSSE;trusted boot;account lockout;generation and importing of X.509 certification;video encryption
Certification2
- CE-LVD
- EN62368-1
- CE-EMC
- Electromagnetic Compatibility Directive 2014/30/EU
Power2
- Power Supply
- 12 VDC/PoE (802.3af)
- Power Consumption
- Basic: 2.5 W (12 VDC); 3.5 W (PoE) / Max. (H.265 + intelligence on+ WDR + illuminator intensity): 4.5 W (12 VDC); 5.8 W (PoE) (H.265 + intelligence on+ DWDR + illuminator intensity)
Environment5
- Operating Temperature
- –40 °C to +60 °C
- Operating Humidity
- ≤95%
- Storage Temperature
- –40 °C to +60 °C
- Storage Humidity
- ≤95%
- Protection
- IP67
Structure1
- Casing Material
- Metal
Product Dimensions : 173.3 mm × 70.0 mm × 70.0 mm2
- Net Weight
- 0.46 kg
- Gross Weight
- 0.57 kg
