- Smart H.265+/H.265/Smart H.264+/H.264/MJPEG decoding format
- Access, storage or forwarding at 256 Mbps (180 Mbps when AI function enabled).
- Max. decoding capability: 16 × 1080p@30 fps. Supports adaptive decoding
- AI by NVR: 1-channel face detection and recognition; 2-channel perimeter protection; up to 10 face databases and 20,000 face images; 4-channel SMD Plus
- AI by Camera: Face detection and recognition, perimeter protection; SMD Plus; people counting; stereo analysis; heat map
- Connected to the third-party network cameras
- Security baseline 2.3

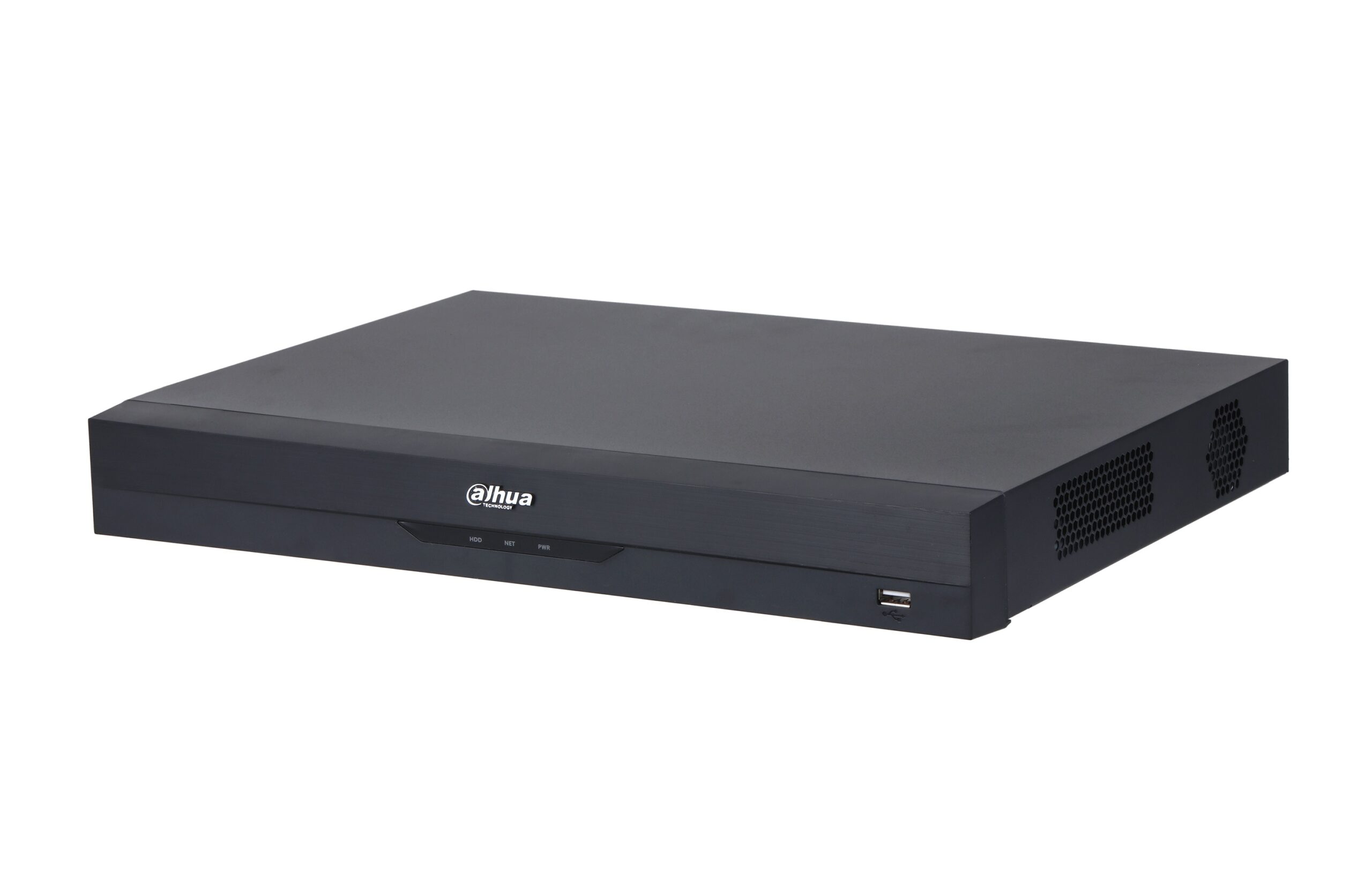

Dahua NVR 16ch 2HDD 256mbps H265 NVR4216-16P-EI
734,00 €
Out of stock
Out of stock
Pairs well with
Popular add-ons for this product
- In stock · delivery across CyprusFree pickup in LimassolOriginal price was: 15,99 €.13,99 €Current price is: 13,99 €.Add to cart
- Code: 27470
- Length: 1 m
- Power: 100W
In stock · delivery across CyprusFree pickup in Limassol10,99 €Add to cart
More options
Similar IP Cameras & NVR in a similar price range
Specifications
System3
- Main Processor
- Industrial-grade processor
- Operating System
- Embedded Linux
- Operating Interface
- Web, Local GUI
AI2
- AI by Recorder
- Face detection; face recognition; perimeter protection; SMD Plus
- AI by Camera
- Face detection; face recognition; perimeter protection; SMD Plus; ANPR; people counting; stereo analysis; heat map
Perimeter Protection2
- Perimeter Performance AI by Recorder (Number of Channels)
- 2 channels, 10 IVS rules for each channel
- Perimeter Performance of AI by Camera (Number of Channels) P
- 8 channels
Face Detection3
- Face Attributes
- Gender; age group; glasses; expressions; face mask; beard
- Face Detection Performance of AI by Recorder (Number of Channels)
- 1 channels (up to 12 face images/s each channel)
- Face Detection Performance of AI by Camera (Number of Channels)
- 8 channels
Face Recognition3
- Face Database Capacity
- Up to 10 face databases with 20,000 images, with a total capacity of 2.5 G. Name, gender, birthday, address, credential type, credential No., countries & regions and state can be added to each face image.
- Face Recognition Performance of AI by Recorder (Number of Channels)
- 8-channel FD (by camera) + FR (by recorder), image stream: 12 face images/s / 1-channel FD (by recorder) + FR (by recorder), video stream: 12 face images/s
- Face Recognition Performance of AI by Camera (Number of Channels)
- 8 channels
SMD Plus2
- SMD Plus by Recorder
- 4 channels: Secondary filtering for human and motor vehicle , reducing false alarms caused by leaves, rain and lighting condition change
- SMD Plus by Camera
- 8 channels
Audio and Video11
- Access Channel
- 16 channels
- Network Bandwidth
- AI disabled: 256 Mbps incoming, 256 Mbps recording and 256 Mbps outgoing / AI enabled: 180 Mbps incoming, 180 Mbps recording and 180 Mbps outgoing
- Resolution
- 16 MP; 12 MP; 8 MP; 6 MP; 5 MP; 4 MP; 3 MP; 1080p; 960p; 720p; D1; CIF
- Decoding Capability
- AI disabled: 2-channel 16 MP@30 fps; 2-channel 12 MP@30 fps; 4-channel 8 MP@30 fps; 6-channel 5 MP@30 fps; 8-channel 4 MP@30 fps; 16-channel 1080p@30 fps / AI enabled: 1-channel 16 MP@30 fps; 2-channel 12 MP@30 fps; 3-channel 8 MP@30 fps; 4-channel 5 MP@30 fps; 6-channel 4 MP@30 fps; 12-channel 1080p@30 fps
- Video Output
- 1 HDMI, 1 VGA
- HDMI
- 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720
- VGA
- 1920 × 1080, 1280 × 1024, 1280 × 720
- Simultaneous/heterogeneous video sources output for VGA and HDMI is configurable.
- Multi-screen Display
- 1st Screen: 1/4/8/9/16 / 2nd Screen: 1/4/8/9/16
- Third-party Camera Access
- Panasonic, Sony, Samsung, Axis, Pelco, Arecont, ONVIF, Canon
- Compression Standard
- Video Compression : Smart H.265+; H.265; Smart H.264+; H.264; MJPEG / Audio Compression : G.711a; G.711u; PCM; G726
Network4
- Network Protocol
- HTTP; HTTPS; TCP/IP; IPv4/IPv6; RTSP; UDP; SNMP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; PPPoE; FTP; DDNS; Alarm Server; IP Search (Supports Dahua IP camera, DVR, NVS, etc.); Multicast; P2P; Auto Registration
- Mobile Phone Access
- iOS; Android
- Interoperability
- ONVIF 21.12(Profile T; Profile S; Profile G); CGI; SDK
- Browser
- Chrome / IE 9 or later / Firefox
Recording Playback4
- Multi-channel Playback
- Up to 16 channels
- Record Mode
- General, motion detection; intelligent; alarm; POS
- Backup Method
- USB device and network
- Playback Mode
- Instant playback, general playback, event playback, tag playback, smart playback (face and motion detection)
Storage1
- Disk Group
- Yes
Alarm4
- General Alarm
- Motion detection; privacy masking; local alarm
- Anomaly Alarm
- Camera offline; storage error; disk full; IP conflict; MAC conflict; login lock; abnormal behavior of fan; cybersecurity exception
- Intelligent Alarm
- Face detection; perimeter protection; face recognition; video metadata (human, motor vehicles, and non-motor vehicles); SMD Plus; stereo analysis; crowd distribution; people counting; ANPR; vehicle density; heat map
- Alarm Linkage
- Record; snapshot (panoramic); local alarm output; IPC external alarm output; access controller; audio; buzzer; log, preset; email
Port11
- Audio Input
- 1-channel RCA
- Audio Output
- 1-channel RCA
- Alarm Input
- 4 channels
- Alarm Output
- 2 channels
- HDD Interface
- 2 SATA ports, up to 16 TB. The maximum HDD capacity varies with environment temperature
- RS-232
- 1
- USB
- 2 (1 front USB 2.0 port, 1 rear USB 3.0 port)
- HDMI
- 1
- VGA
- 1
- Network Port
- 1(10/100/1000 Mbps Ethernet port, RJ-45)
- PoE Port
- 16 ports, 10/100 Mbps, IEEE 802.3 af/at, 1-8 ports support ePoE
General13
- Power Supply
- 100–240 VAC, 47-63 Hz
- Power Consumption
- Total output of NVR is ≤ 10W (without HDD)
- Total output power of PoE is 130W, the maximum output power of a single port is 25.5W
- Net Weight
- 2.60 kg
- Gross Weight
- 3.80 kg
- Product Dimensions
- 375.0 mm × 329.3 mm x 53.0mm (W × D × H)
- Packaging Dimensions
- 451.0 mm × 170.0 mm × 425.0 mm (W × D × H)
- Operating Temperature
- –10 °C to +55 °C
- Storage Temperature
- –20 °C to +60 °C
- Operating Humidity
- 10%–93% (RH)
- Installation
- Rack or desktop
- Certifications
- FCC: 47 CFR FCC Part15, SubpartB, Class A
- CE-EMC
- EN 55032: 2015+A1: 2020; EN IEC 61000-3-2: 2019+A1: 2021; EN 61000-3-3:2013+A1: 2019+A2: 2021; EN 55035: 2017+A11: 2020; EN 50130-4: 2011+A1: 2014 / CE-LVD: EN 62368-1: 2014
