- H.265+/H.265 dual-stream video compression
- Supports Full-channel AI-Coding
- Supports HDCVI/AHD/TVI/CVBS/IP video inputs
- Max 6 channels IP camera inputs, each channel up to 6MP; Max 32 Mbps incoming bandwidth
- Up to 1 channel video stream ( analog channel ) Perimeter Protection
- Up to 4 channels video stream ( analog channel ) SMD Plus
- Up to 1 channel video stream (analog channel ) human face recognition
- IoT & POS functionalities

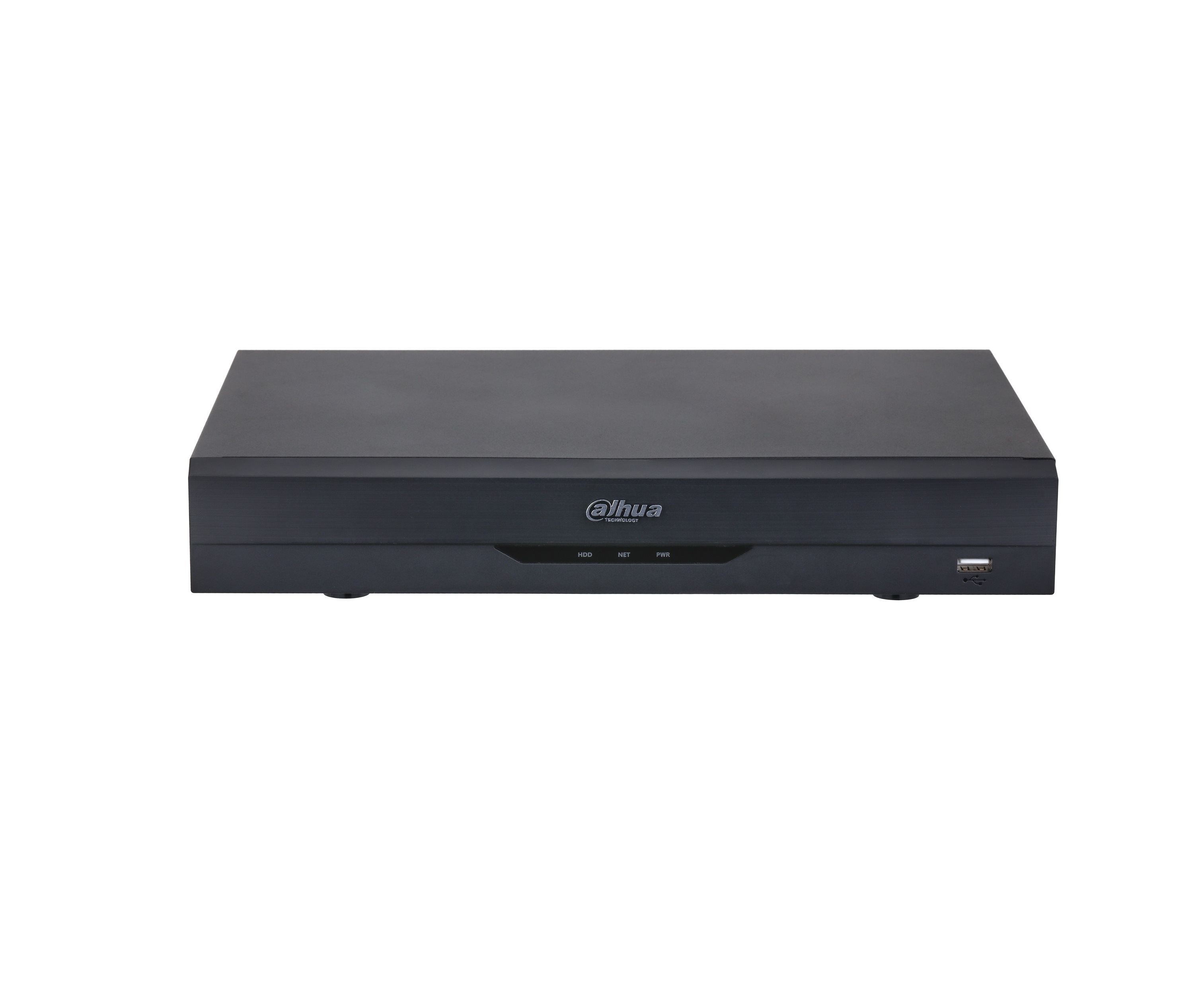

Dahua XVR 1080P 4channels H265 XVR5104HS-I3
154,00 €
Out of stock
Out of stock
Specifications
System2
- Main Processor
- Embedded Processor
- Operating System
- Embedded LINUX
Perimeter Protection3
- Performance
- 1 channels, 10 IVS for each channel
- Object classification
- Human/Vehicle secondary recognition for tripwire and intrusion
- AI Search
- Search by target classification (Human, Vehicle)
Face Recognition6
- Performance
- Max 8 face pictures/sec processing / 1 channel video stream face recognition, only support analog camera
- Stranger Mode
- Detect strangers' faces (not in device's face database). Similarity threshold can be set manually
- AI Search
- Up to 8 target face images search at same time, similarity threshold can be set for each target face image
- Database Management
- Up to 10 face databases with 10,000 face images in total. Name, gender, birthday, address, certificate type, cerificate No., countries®ions and state can be added to each face picture.
- Database Application
- Each database can be applied to video channels independently
- Trigger Events
- Buzzer, Voice Prompts, Email, Snapshot, Recording, Alarm Out, PTZ Activation, etc
SMD Plus2
- Performance
- 4 channels
- AI Search
- Search by target classification (Human, Vehicle)
Video and Audio8
- Analog Camera Input
- 4 channels, BNC
- HDCVI Camera Input
- 5MP, 4MP, 1080P@25/30fps, 720P@50/60fps, 720P@25/30fps
- AHD Camera Input
- 5MP, 4MP, 1080P@25/30, 720P@25/30fps
- TVI Camera Input
- 5MP, 4MP, 1080P@25/30, 720P@25/30fps
- CVBS Camera Input
- PAL/NTSC
- IP Camera Input
- 4+2 channels, each channel up to 6MP
- Audio In/Out
- 1/1, RCA
- Two-way Talk
- Reuse audio in/out, RCA
Recording9
- Compression
- AI Coding/H.265+/H.265/H.264+/H.264
- Resolution
- 5M-N, 4M-N, 1080P, 1080N, 720P, 960H, D1, CIF
- Record Rate
- Main stream: All channel 5M-N (1fps–10fps); 4M-N/1080P (1fps–15fps); 1080N/720P/960H / D1/CIF (1fps–25/30fps) / Sub stream: D1/CIF (1fps–15fps)
- Bit Rate
- 32 Kbps–6144 Kbps Per Channel
- Record Mode
- Manual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
- Record Interval
- 1 – 60 min (default: 60 min), Pre-record: 1 s–30 s, Post-record: 10 s–300 s
- Audio Compression
- G.711A, G.711U, PCM
- Audio Sample Rate
- 8 KHz, 16 bit Per Channel
- Audio Bit Rate
- 64 Kbps Per Channel
Display4
- Interface
- 1 HDMI ,1 VGA
- Resolution
- 1920 × 1080, 1280 × 1024, 1280 × 720
- Multi-screen Display
- When IP extension mode not enabled: 1/4 / When IP extension mode enabled: 1/4/6
- OSD
- Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Network5
- Interface
- 1 RJ-45 Port (100 MB)
- Network Function
- HTTP, HTTPS, TCP/IP, IPv4/IPv6, Wi-Fi, 3G/4G, SNMP, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P,IP Search (Supports Dahua IP camera, DVR, NVS, etc.)
- Max. User Access
- 128 users
- Smart Phone
- iPhone, iPad, Android
- Interoperability
- ONVIF 16.12, CGI Conformant
Video Detection and Alarm4
- Trigger Events
- Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
- Video Detection
- Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Diagnosis
- Alarm input
- N/A
- Relay Output
- N/A
Playback and Backup4
- Playback
- 1/4
- Search Mode
- Time /Date, Alarm, MD and Exact Search (accurate to second)
- Playback Function
- Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom
- Backup Mode
- USB Device/Network
Storage2
- Internal HDD
- 1 SATA Port, up to 6TB capacity
- eSATA
- N/A
Auxiliary Interface3
- USB
- 2 USB Ports (USB 2.0)
- RS485
- 1 Port, for PTZ Control
- RS232
- N/A
Electrical2
- Power Supply
- DC 12V/1.5A
- Power Consumption (Without HDD)
- <4W
Construction4
- Dimensions
- Compact 1U, 260 mm × 238 mm × 48 mm
- Net Weight (without HDD)
- 0.84 kg
- Gross Weight
- 1.37 kg
- Installation
- Desktop installation
Environmental2
- Operating Conditions
- -10°C to +55°C (+14°F to +131°F), 0–90% RH
- Storage Conditions
- -20°C to +70°C (-4°F to +158°F), 0–90% RH
Third-party Support1
- Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more
Certifications3
- FCC
- Part 15 Subpart B
- CE
- CE-LVD: EN 60950-1/IEC 60950-1
- CE-EMC
- EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024
Additional information
| Camera Type | Recorder |
|---|---|
| Channels | 4 CH |
