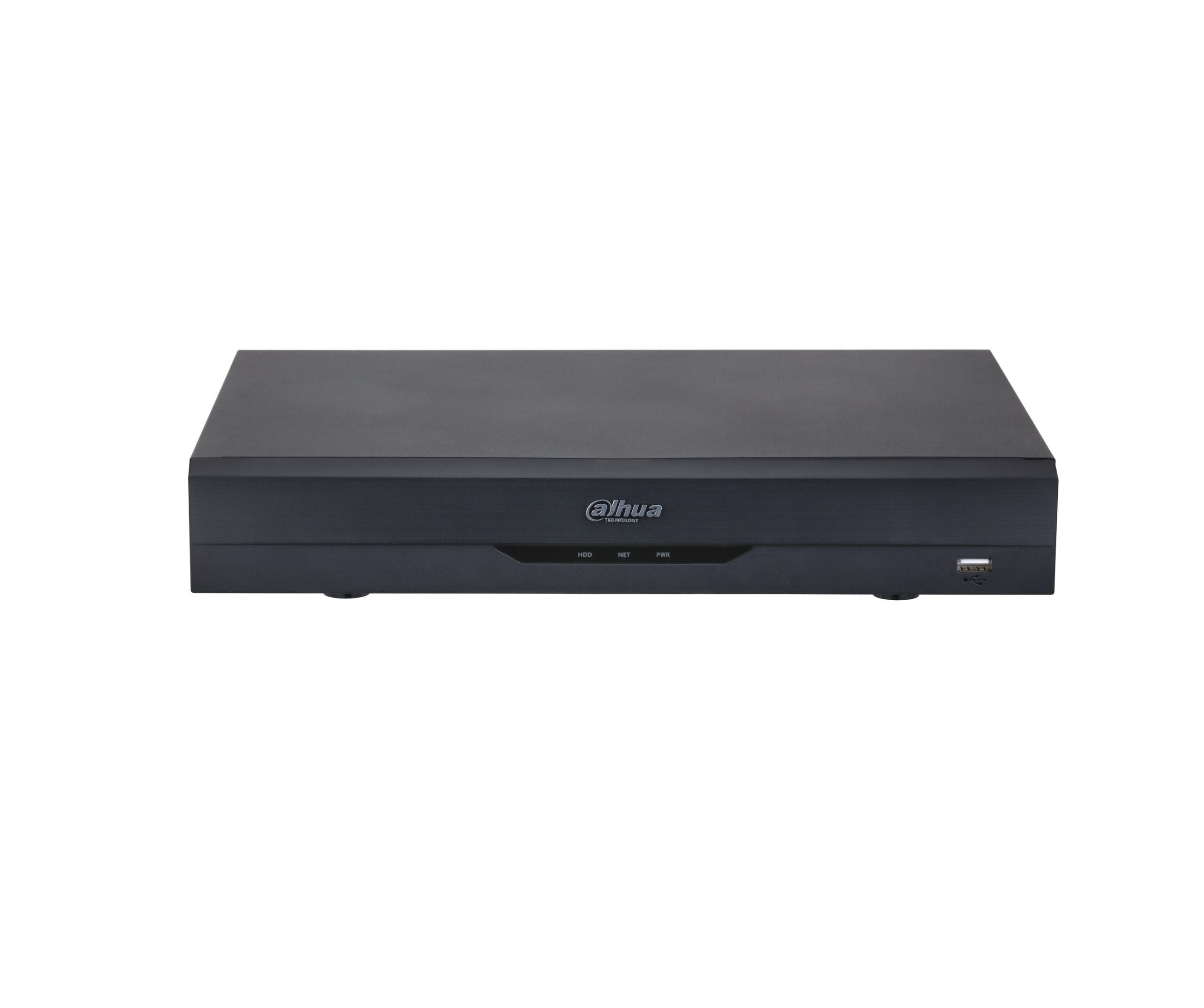

Dahua XVR 4K 4channels H265+ XVR5104HS-4KL-I3

236,00 €

Out of stock

Out of stock

Free store pick-up in Limassol · Delivery across Cyprus from €6

Dahua XVR 4K 4channels H265+ XVR5104HS-4KL-I3
Dahua XVR 4K 4channels H265+ XVR5104HS-4KL-I3
236,00 €

Or contact us directly:

📞 25 102 760
📱 96 401 000

Specifications

System2
Main Processor
Embedded Processor
Operating System
Embedded LINUX
Perimeter Protection3
Performance
1 channel, 10 IVS for each channel
Object classification
Human/Vehicle secondary recognition for tripwire and intrusion
AI Search
Search by target classification (Human, Vehicle)
Face Detection6
Performance
Max 8 face pictures/sec processing / 1 channel video stream face recognition, only support analog camera
Stranger Mode
Detect strangers' faces (not in device's face database). Similarity threshold can be set manually.
AI Search
Up to 8 target face images search at same time, similarity threshold can be set for each target face image.
Database Management
Up to 10 face databases with 20,000 face images in total. Name, gender, birthday, address, certificate type, cerificate No., countries®ions and state can be added to each face picture.
Database Application
Each database can be applied to video channels independently .
Trigger Events
Buzzer, Voice Prompts, Email, Snapshot, Recording, Alarm Out, PTZ Activation, etc.
SMD Plus2
Performance
4 channels
AI Search
Search by target classification (Human, Vehicle)
Video and Audio8
Analog Camera Input
4 Channel, BNC
HDCVI Camera
4K,6MP, 5MP, 4MP, 1080P@25/30fps, 720P@50/60fps, 720P@25/30fps
AHD Camera
4K, 5MP, 4MP, 3MP, 1080P@25/30, 720P@25/30fps
TVI Camera
4K,5MP, 3MP, 1080P@25/30, 720P@25/30fps
CVBS Camera
PAL/NTSC
IP Camera Input
4+4 Channel, each channel up to 8MP
Audio In/Out
1/1, RCA
Two-way Talk
Reuse audio in/Out, RCA
Recording9
Compression
AI Coding/H.265+/H.265/H.264+/H.264
Resolution
4K, 5MP, 4MP, 3MP, 1080P, 720P, 960H, D1, CIF, QCIF
Record Rate
Main stream: 4K(1~7fps); 5MP(1~12fps); 4MP/3MP(1~15fps); 1080P/720P/960H/D1/CIF/QCIF (1~25/30fps);Sub steram:960H(1~15fps);;D1/CIF/QCIF(1~25/30fps)
Bit Rate
1Kbps ~ 6144Kbps Per Channel
Record Mode
Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
Record Interval
1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec
Audio Compression
AAC (only for the 1st channel), G.711A, G.711U, PCM
Audio Sample Rate
8 KHz, 16 bit Per Channel
Audio Bit Rate
64 Kbps Per Channel
Display4
Interface
1 HDMI, 1 VGA
Resolution
HDMI:3840×2160, 2560×1440, 1920×1080, 1280×1024, 1280×720, 1024×768; VGA: 1920×1080, 1280×1024, 1280×720, 1024×768
Multi-screen Display
When IP extension mode not enabled: 16CH: 1/4/8/9/16; When IP extension mode enabled: 16CH: 1/4/8/9/16/25
OSD
Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Network5
Interface
1 RJ-45 Port (1000M)
Network Function
HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P,IP Search (Support Dahua IP camera, DVR, NVS, etc.)
Max. User Access
128 users
Smart Phone
iPhone, iPad, Android
Interoperability
ONVIF 2.42, CGI Conformant
Video Detection and Alarm4
Trigger Events
Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
Video Detection
Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Diagnosis
Alarm input
N/A
Relay Output
N/A
Playback and Backup4
Playback
4CH: 1/4
Search Mode
Time /Date, Alarm, MD and Exact Search (accurate to second)
Playback Function
Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom
Backup Mode
USB Device/Network
Storage2
Internal HDD
1 SATA Port, up to 10TB capacity
eSATA
N/A
Auxiliary Interface3
USB
2USB Ports (1 USB 2.0 , 1 USB 3.0)
RS232
N/A
RS485
1 Port, for PTZ Control
Electrical2
Power Supply
DC12V/2A
Power Consumption
<7W (Without HDD)
Construction4
Dimensions
Compact 1U, 260mm×237.9mm×47.6mm
Net Weight
0.53kg (without HDD)
Gross Weight
1.07kg
Installation
Desktop installation
Environmental2
Operating Conditions
-10°C ~ +55°C (+14°F ~ +131°F), 0~ 90% RH
Storage Conditions
-20°C ~ +70°C (-4°F ~ +158°F) , 0~ 90% RH
Third-party Support1
Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more
Certifications3
FCC
Part 15 Subpart B
CE
CE-LVD: EN 60950-1/IEC 60950-1
CE-EMC
EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024
  • H.265+/H.265 dual-stream video compression
  • Supports Full-channel AI-Coding
  • Supports HDCVI/AHD/TVI/CVBS/IP video inputs
  • Max 8 channels IP camera inputs, each channel up to 8MP; Max 64 Mbps incoming bandwidth
  • Up to 1 channel video stream ( analog channel ) Perimeter Protection
  • Up to 4 channels video stream ( analog channel ) SMD Plus
  • Up to 1 channel video stream (analog channel ) human face recognition
  • IoT & POS functionalities

Additional information

Camera Type

Recorder

Channels

4 CH

Megapixel

4K
