- Flexible AC & DC Power Compatibility : Designed for both 110–240V AC and 12–48V DC power input, allowing flexible installation in traditional home wiring systems or low-voltage solar and battery-powered automation setups without requiring extra power converters
- Reliable Low-Voltage DC Device Control : Supports stable control of up to 8W DC motors and solenoid valves / with faster response and lower resistance for better load protection
- Dry Contact Output with NO/NC Support : Built with a dry contact relay supporting both normally open (NO) and normally closed (NC) modes / enabling safe and flexible control of garage doors / boilers, electric gates / water pumps / fire alarm systems / and more without modifying existing wiring
- Easy High-Power Expansion with Contactors : Pair with contactors to control high-power equipment using low-power signals / including AC units / large pumps / and industrial lights—no need for costly high-wattage smart switches
- Smart Zigbee Integration & Signal Repeating :Supports the Zigbee protocol and works with Zigbee hubs for remote control / voice commands / smart scheduling / and advanced automation via the eWeLink App or platforms like Home Assistant. It also functions as a Zigbee router to expand mesh coverage / reduce signal dead zones
Denver SECURITY Doorbell Smart WiFi 4MP with Chime VDB-218
79,99 €
Sonoff ZigBee Motion Sensor 120 Degrees Wide Angle and Lux Sensor SNZB-03PR2
18,99 €Sonoff ZigBee Dry Contact Smart Switch MINI-ZBD
15,99 €
In stock · delivery across CyprusFree pickup in Limassol
More options
Similar Relay,Curtain,Shutters & Garage Switches in a similar price range
Specifications
Specifications17
- MCU
- EFR32MG21
- Rating
- 100-240V~ 50/60Hz 0.1A Max O 12-48V⎓1A Max μ
- Load
- 24V⎓2A Max Resistive load OR 12/24V⎓8W
- Zigbee
- IEEE 802.15.4
- Net Weight
- 34.5g

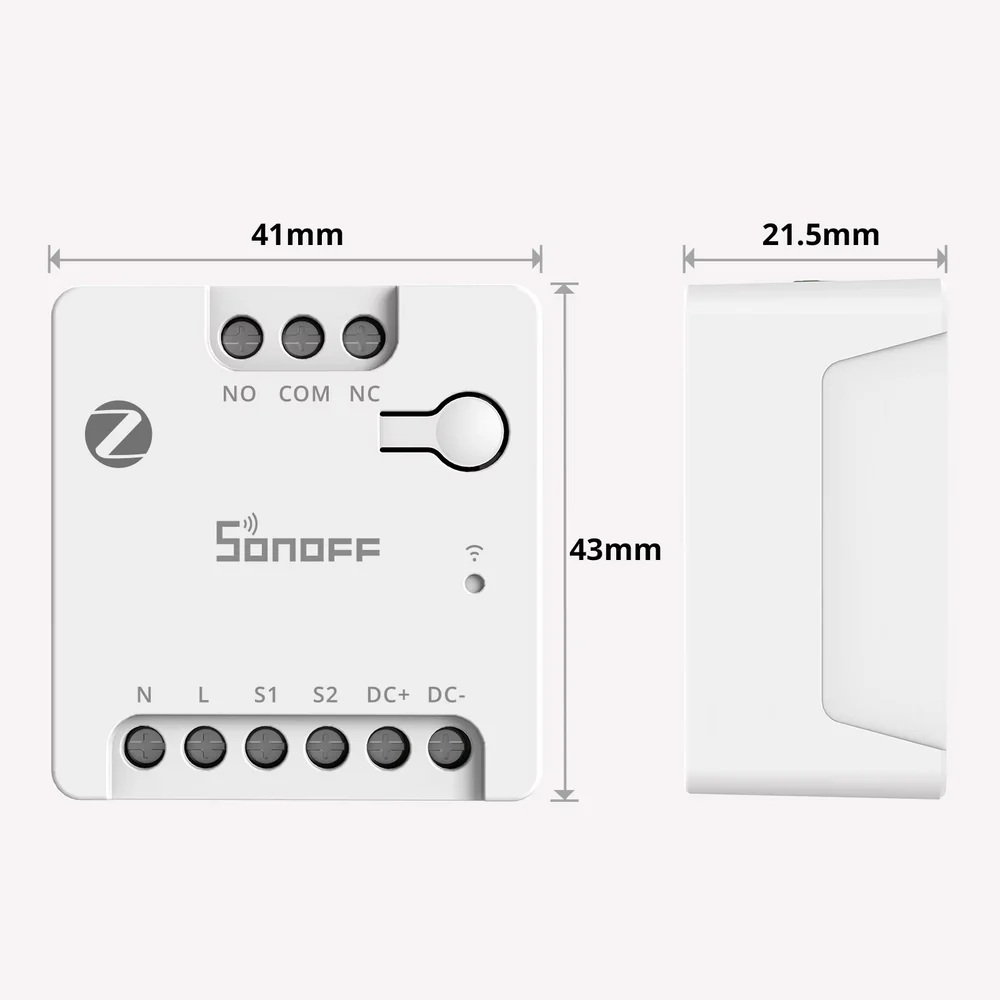

- Dimensions
- 41x43x21.5mm
- Color
- White
- Casing Material
- PC
- Applicable Place
- Indoor
- Wiring
- 18AWG to 14AWG (0.75mm² to 1.5 mm² )
- Working Temperature
- 10T40 (-10℃~40℃)
- Working Humidity
- 5%~95% RH / non-condensing
- Working Height
- Less than 2000m
- Pollution Degree
- II
- Rated Impulse Voltage
- 4KV
- Automatic Action
- 20000 Cycles
- Certification
- CE/FCC/RoHS
