Ubiquiti UniFi Access Control Hub UA-HUB

Original price was: 269,00 €.Current price is: 160,00 €.

-41%
You save 109,00 €
In stock · delivery across CyprusFree pickup in Limassol
Add to Cart
Ubiquiti UniFi Access Control Hub UA-HUB
Ubiquiti UniFi Access Control Hub UA-HUB
269,00 € Original price was: 269,00 €.160,00 €Current price is: 160,00 €.

Free store pick-up in Limassol · Delivery across Cyprus from €2

Ubiquiti UniFi Access Control Hub UA-HUB
Ubiquiti UniFi Access Control Hub UA-HUB
269,00 € Original price was: 269,00 €.160,00 €Current price is: 160,00 €.

Or contact us directly:

📞 25 102 760
📱 96 401 000

More options

Similar Access Controls in a similar price range

Specifications

Mechanical4
Dimensions
190 x 126 x 33 mm
Weight
457 g
Enclosure Characteristics
Plastic Enclosure with Metal Mount Plate

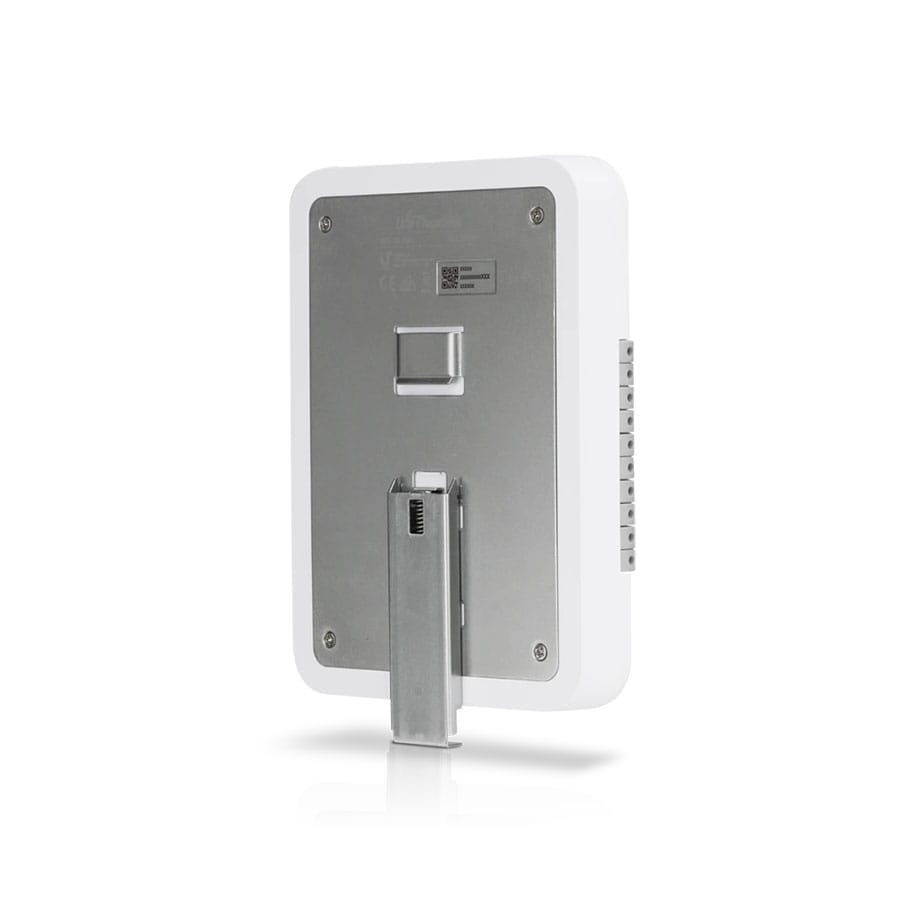

Mounting Options
DIN Rail
Hardware16
Networking Interface
(4) 1 Gbps Ethernet
Max. Power Consumption
40W
Power Method
802.3bt PoE

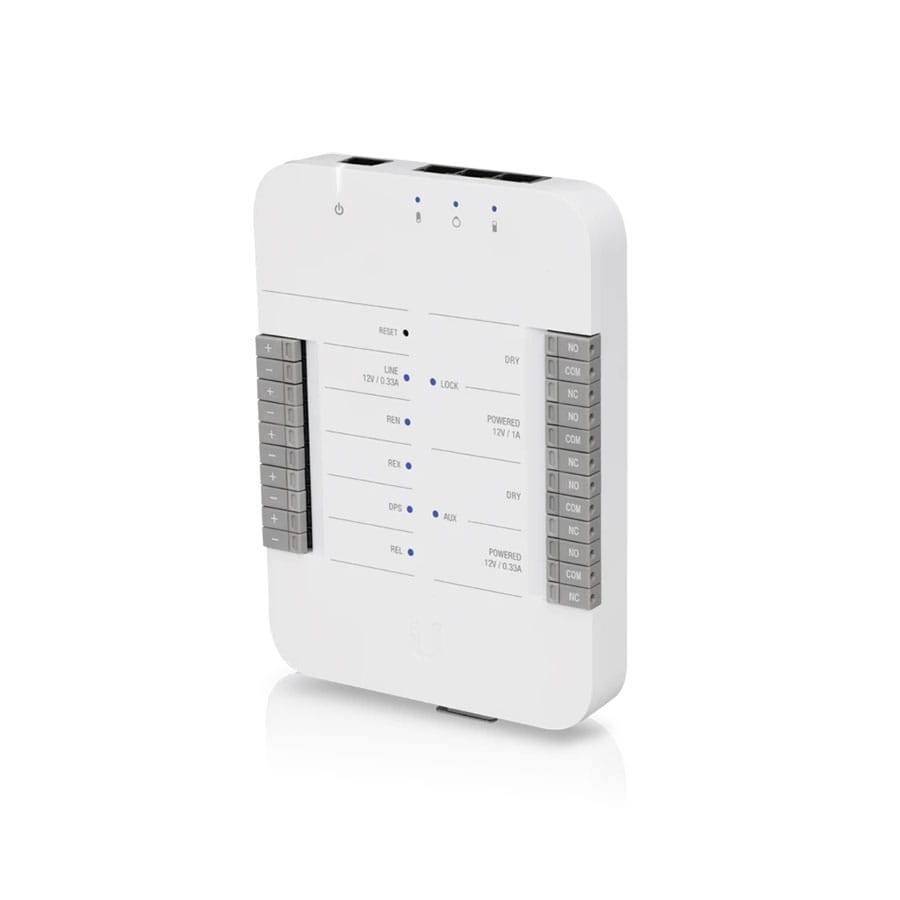

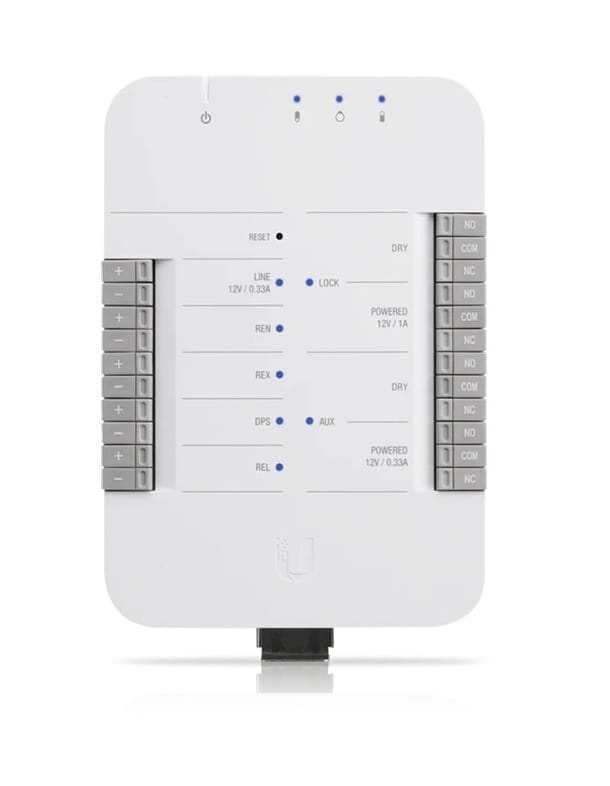

Input Terminals
REX - Request to Exit / REN - Request to Enter / REL - Remote Release / DPS - Door Position Sensor
Dry Output Relay
Lock
Rated 30VDC, up to 1A
Aux
Rated 30VDC, up to 1A
Powered Output Relay
Lock
12VDC, up to 1A
Aux
12VDC, up to 0.33A
Line
12VDC, up to 0.33A
LEDs
(1) System, (3) PoE Out, (4) Input / (2) Output Relays, (1) 12VDC Out
Buttons
Terminal Blocks, Reset
Operating Temperature
0 to 40° C
Operating Humidity
5 - 90% Noncondensing
Certifications
CE, FCC, IC
  • The Access Hub is a sophisticated, single-door entry mechanism that also manages connected Access Readers
  • The UniFi Access Hub comes with versatile interfaces, including support for most electric bolts/strikes, magnetic locks, and 12V access accessories such as motion sensors, push buttons, and alarms. The three Ethernet PoE powered reader interfaces minimize need for wiring work and offer a convenient way to add a UniFi G3-Flex surveillance camera for additional security. The seamlessly integrated UniFi Access solution is managed with UniFi Access application. Easily manage users, visitors, schedules, and access policies with the with the intuitive browser-based interface

Features:

  • Powered by 802.3bt (PoE++) switch
  • Three 802.3af PoE ports for UniFi readers and G3 Flex surveillance camera
  • 12V powered and dry relays compatible with most locks
  • Four inputs for motion sensors, request-to-exit devices and door position switch
  • Managed with UniFi Access Application in UDM-Pro
  • DIN-rail mounting
