- Used to expand access control functions by working with access control terminal and door station
- Supports RS-485 communication
- Connects to electronic or magnetic locks to bolster security
- Offers 3 indicators to indicate when the device is on or off, functioning, and the status of the door

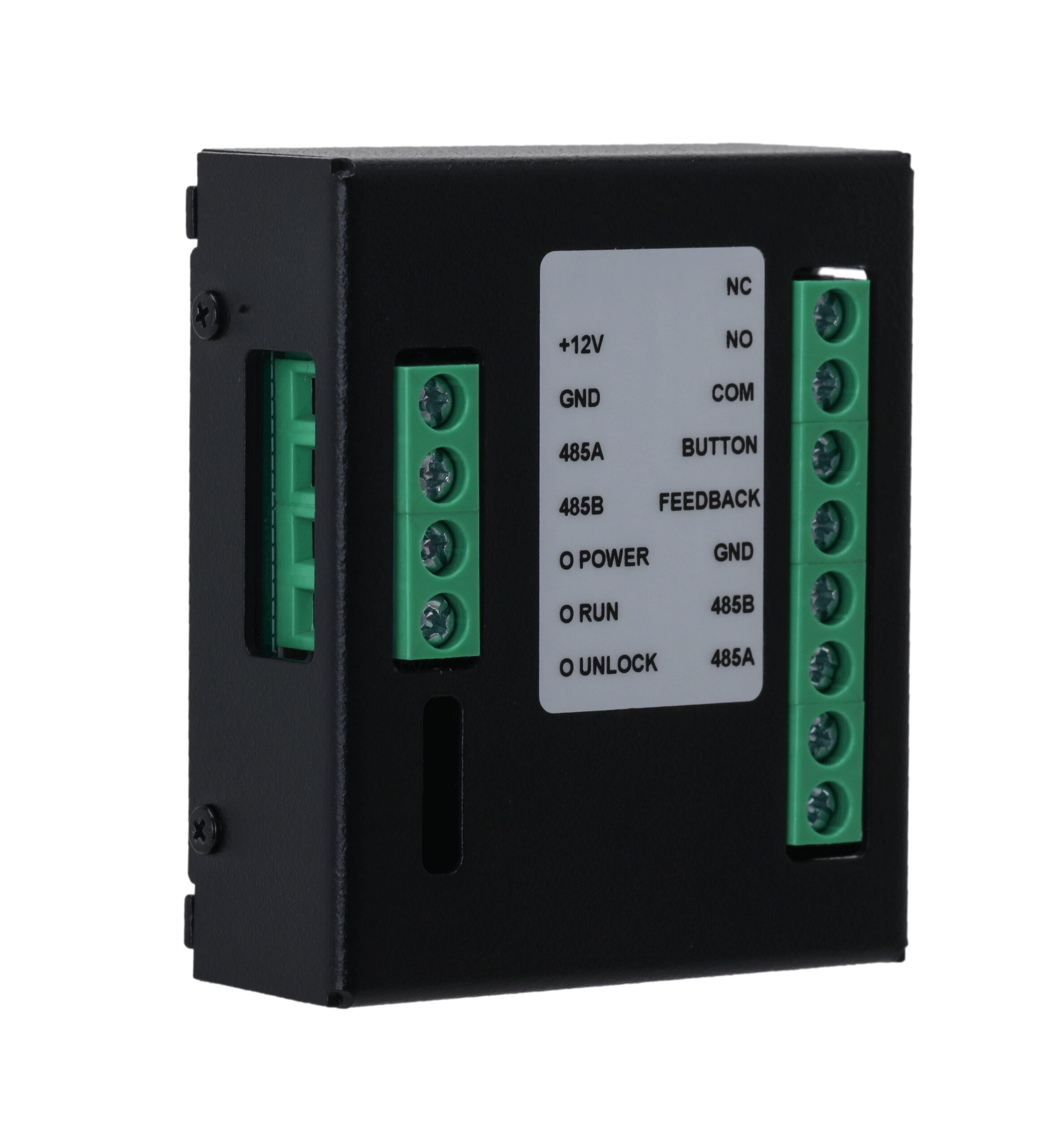

Dahua AC Extension Module DEE1010B-S2
62,00 €
Out of stock
Out of stock
Specifications
Port4
- RS-485
- 2
- Exit Button
- 1
- Door Status Detection
- 1
- Lock Control
- 1
General8
- Power Supply
- 12 VDC, 1 A (not included)
- Power Consumption
- ≤ 0.9 W (standby), ≤ 1 W (working)
- Product Dimensions
- 58.2 mm × 49.2 mm × 20.2 mm (W × H × D)
- Operating Temperature
- –10 °C to +60 °C
- Operating Humidity
- 0%–95% (RH), non-condensing
- Net Weight
- 0.09 kg
- Gross Weight
- 0.12 kg
- Certifications
- CE; FCC
