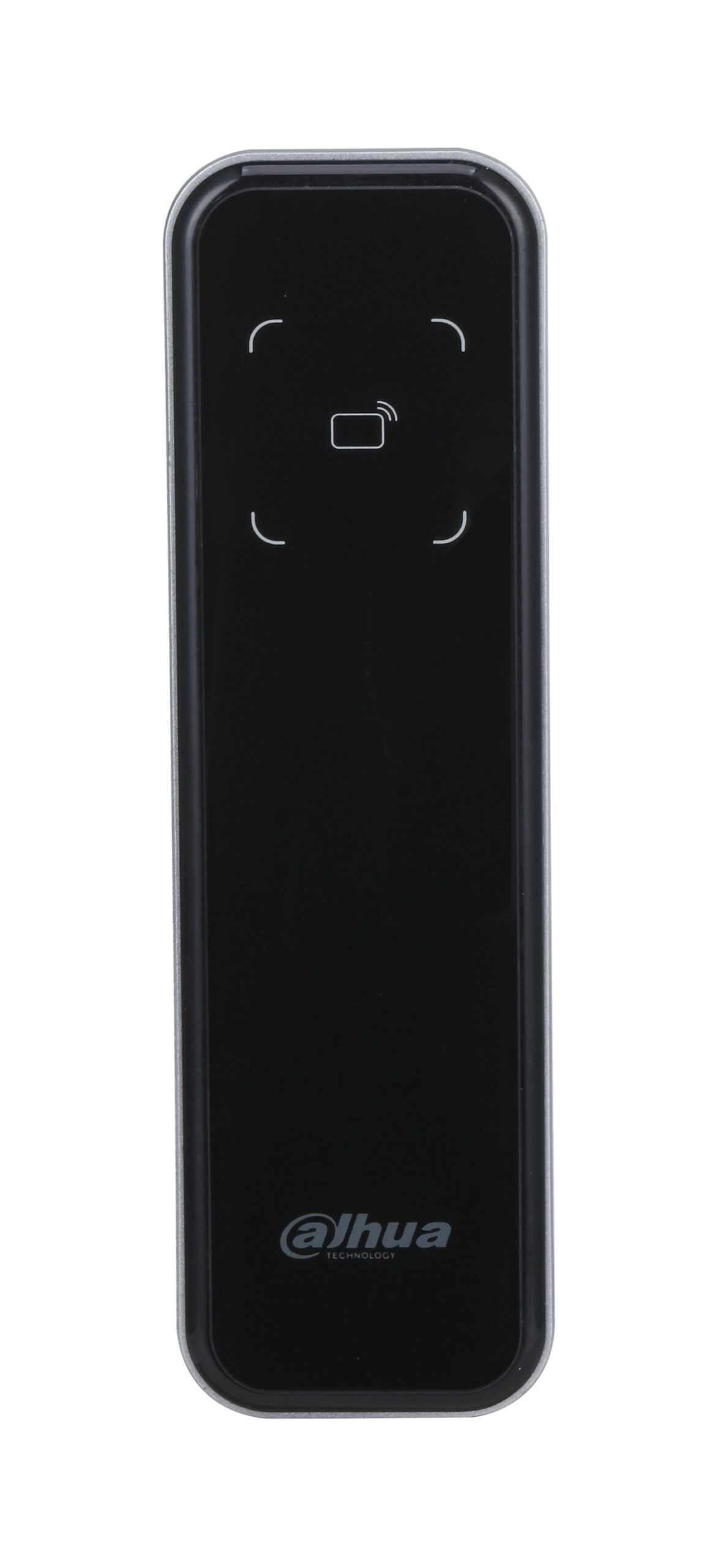

Dahua AC RFID Reader Slim Water-proof ASR2200A-D

74,00 €

Out of stock

Out of stock

Free store pick-up in Limassol · Delivery across Cyprus from €6

Dahua AC RFID Reader Slim Water-proof ASR2200A-D
Dahua AC RFID Reader Slim Water-proof ASR2200A-D
74,00 €

Or contact us directly:

📞 25 102 760
📱 96 401 000

More options

Similar Access Controls in a similar price range

Specifications

Basic3
Product Type
Slim Card Reader
Buzzer
Yes
Casing
Tempered glass/PC
Function9
Unlock Mode
Card swiping
Card Type
ID card
Performance
Response Time
0.1 s
Card Reading Distance
0 cm–5 cm
Port
RS-485
1 channel
Wiegand
1 output channel
Alarm
Tamper Alarm
Yes
General10
Power Supply
12V 0.5A DC
Protection
IP66 (silicon sealant is needed, see the manual)
Power Consumption
Standby ≤ 0.9W, working ≤ 1.7W
Product Dimensions
135 mm × 40 mm × 15 mm (L × W× H)
Operating Temperature
–30°C to +70°C (–22°F to +158°F)
Operating Humidity
5%RH–95% (non-condensing)
Operating Environment
Indoor; outdoor
Gross Weight
0.16 kg
Installation
Surface mount
Certifications
CE; FCC
  • PC material, tempered glass panel and IP66, suitable for indoor and outdoor use
  • Support contactless recognition of ID card (Mifare card)
  • Support card unlock
  • Support RS485 and Wiegand communication
  • Support buzzer and indicator prompt
  • Support anti-tampering alarm
  • The built-in watchdog can detect and control the abnormal operation status of the equipment and perform recovery processing to ensure the long-term operation of the equipment
  • All connection ports have overcurrent and overvoltage protection
