- Supports PC/mobile web client (DMSS)
- Supports online update and USB update
- Doorbell function
- Audio prompts
- Compatible with SmartPSS-AC and DSS Pro
- PC + ABS, suitable for indoor and outdoor use
- 2.4" LCD screen with a resolution of 240 × 320
- Operating temperature: –30 °C to +65 °C (–22 °F to +149 °F)
- IP65 rated (silicone sealant is needed, see Quick Start Guide)
- Option to switch between reader and controller mode for added convenience
- 30,000 users, 30,000 cards, 30,000 passwords, 50 admin accounts, and 150,000 records
- Card/remote/password unlock and unlock through their combinations.
- IC card,ID card and NFC technology
- Brand-new design with a slim, elegant structure
- Supports access control security module expansion to avoid tampering, increasing access safety
- Supports duress alarm, tamper alarm, intrusion alarm, door contact timeout alarm, illegal card exceeding threshold alarm, illegal password exceeding threshold alarm and external alarm
- Supports guest users, patrol users, blocklist users, VIP users, general users, and others
- TCP/IP and Wi-Fi communication; auto registration, P2P registration, and DHCP.

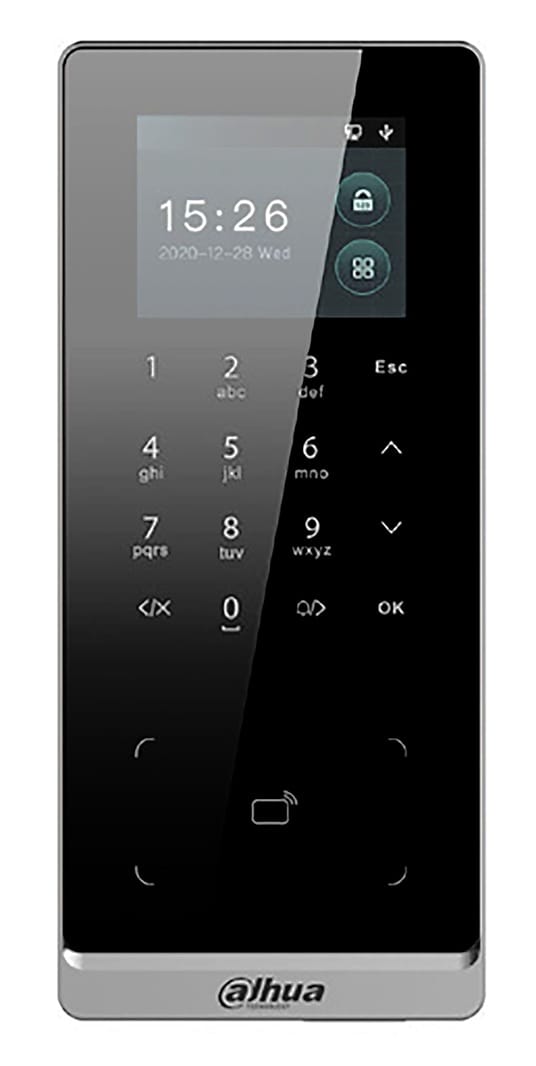

Dahua AC Standalone Keypad with LCD display (Supports NFC & App Control) ASI2201H-W
309,00 €
Out of stock
Out of stock
More options
Similar Access Controls in a similar price range
Specifications
System2
- Main Processor
- High-performance embedded processor
- Network Protocol
- IPv4; TCP; UDP; P2P
Basic6
- Display Screen
- 2.4" LCD
- Screen Type
- LCD
- Resolution
- 240 (H) × 320 (V)
- Voice Prompt
- Yes
- Buzzer
- Yes
- Casing
- PC + ABS/acrylic panel
Function14
- Unlock Mode
- Card/Remote/Password unlock and unlock through their combinations
- Card Type
- IC or ID card
- Period List
- 128
- Holiday Period
- 128
- Network Update
- Yes
- First User Unlock
- Yes
- Remote Verification
- Yes
- Restricted List/Trusted List
- Yes
- Wi-Fi
- Yes
- Peripheral Card Reader
- 1 × RS-485 card reader / 1 × Wiegand card reader
- Multi-user Authentication
- Yes
- Multi-factor Authentication
- Yes
- Web Configuration
- Yes
- Auto Registration
- Yes
Performance1
- Card Reading Distance
- 0-5 cm (0" to 1.97")
User 1
- User (Card) Type
- General user, VIP user, patrol user, guest user, blocklist user and others
Capacity4
- User Capacity
- 30,000 users
- Card Capacity
- 30,000
- Password Capacity
- 30,000
- Record Capacity
- 150,000 unlock records
Port12
- RS-485
- 1
- RS-232
- 1
- Wiegand
- 1-ch input/output
- USB
- 1 × USB2.0 port
- Network Port
- 1 × RJ-45, 100 Mbps
- Alarm Input
- 2 (digital quantity)
- Alarm Output
- 1 (relay)
- Alarm Linkage
- Yes
- Doorbell
- 1
- Exit Button
- 1
- Door Status Detection
- 1
- Lock Control
- 1
Alarm6
- Anti-pass Back
- Yes
- Tamper Alarm
- Yes
- Duress Alarm
- Yes
- Door Sensor Timeout
- Yes
- Intrusion
- Yes
- Illegal Card Exceeding Threshold
- Yes
General14
- Power Adapter
- Optional
- Power Supply
- 12 V DC, 1 A
- Protection
- IP65 (silicone sealant is needed, see the quick start guide)
- Power Consumption
- ≤ 12 W
- Product Dimensions
- 183 mm × 80 mm × 25.5 mm
- Packaging Dimensions
- 248 mm × 143 mm × 66 mm
- Operating Temperature
- –30 °C to +65 °C (–22 °F to +149 °F)
- Operating Humidity
- 10%–95% (RH), no condensing
- Operating Environment
- Indoor; outdoor
- Net Weight
- 262 g
- Gross Weight
- 462 g
- Accessory
- Bracket (included)
- Installation
- Surface mount
- Certifications
- CE; FCC
