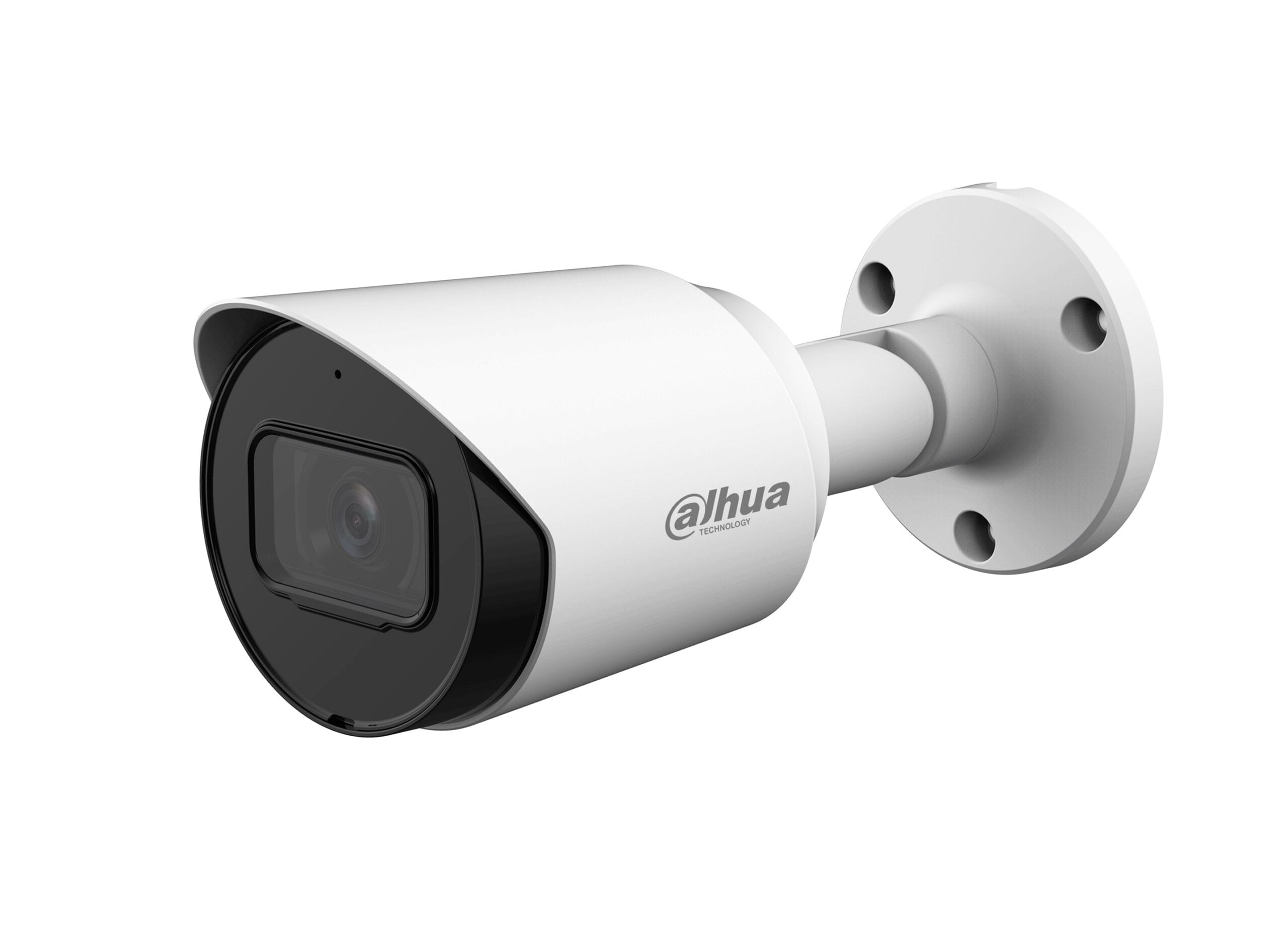

Dahua HDCVI 2.0MP Bullet 2.8mm HFW1200T-S6

Availability: In stock

Product Code:26144

Description:

• Max. 30 fps@1080p
• Smart IR Illumination
• 30 m illumination distance
• Super Adapt
• Built-in Mic
• 3.6 mm fixed lens (2.8mm optional)
• CVI/CVBS/AHD/TVI switchable
• IP67, 12 VDC

Details:

Camera

• Image Sensor :2 MP CMOS
• Effective Pixels : 1920(H)×1080(V), 2MP
• Scanning System : Progressive
• Electronic Shutter Speed : PAL: 1/25~1/100000s / NTSC: 1/30~1/100000s
• Minimum Illumination : 0.01 lux@F2.0 (Color, 30 IRE) / 0.001 lux@F2.0 (B/W, 30 IRE) / 0 lux (Illuminator on)
• S/N Ratio : More than 65dB
• IR Distance : Up to 30m
• IR On/Off Control : Auto
• IR LEDs : 1

Lens

• Lens Type : Fixed lens / Fixed iris
• Mount Type : M12
• Focal Length : 2.8mm
• Max Aperture : F2.00
• Angle of View : H: 102°; V: 60°; D: 129°
• Iris Control : Fixed
• Close Focus Distance : 2.8 mm: 0.5 m

Video

• Resolution : 1080P (1920×1080)
• Frame Rate : 25/30fps@1080P, 25/30/50/60fps@720P
• Video Output : 1-channel BNC high definition video output / CVBS video output (Can switch)
• Day/Night : Auto (ICR) / Manual
• OSD Menu : Multi-language
• BLC Mode : BLC / HLC / DWDR
• WDR : DWDR
• Gain Control : AGC
• Noise Reduction : 2D
• White Balance : Auto / Manual
• Smart IR : Auto / Manual

Certifications

• E-LVD: EN 62368-1;
• CE-EMC: EN 55032; EN 55035;
• FCC: 47 CFR FCC Part 15, Subpart B;
• UL: UL62368-1 + CAN/CSA C22.2 No. 62368-1-14

Electrical

• Power Supply : 12V DC ±30%
• Power Consumption : Max 3.2W (12V DC, IR on)

Environmental

• Operating Conditions : -40°C ~ +60°C / Less than 95% RH * Start up should be done at above -40°C
• Storage Conditions : -40°C ~ +60°C / Less than 95% RH
• Ingress Protection & Vandal Resistance : IP67

Construction

• Casing : Metal
• Dimensions :174.5 mm × 72.3 mm × 70.6 mm
• Net Weight : 0.34kg
• Gross Weight : 0.46kg
