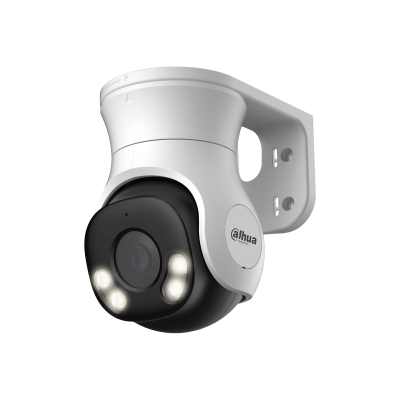

Dahua HDCVI 5.0MP PT Dual Illumination 2.8mm PT1500A-IL-A

Availability: In stock

Product Code:27276

Description:

* The parameters and datasheets below can only be applied to PT1200-IL-S6 series.

* In order to use the 5MP 16:9 andSmart Dual Light HDCVI camera, the firmware of XVR must be upgraded to V4.001.0000004.1.R.220323 or later version.

• Max. 25 fps@5MP (16:9 video output).
• Smart Dual Light.
• Smart Area Lighting.
• Pan & Tilt.
• 40 m illumination distance.
• Super Adapt.
• Built-in Mic.
• Quick-to-install structure saves installation time.
• 2.8 mm fixed lens
• IP66, 12 VDC.

Details:

Camera

• Image Sensor : 5 MP CMOS
• Max. Resolution : 2880 (H) × 1620 (V)
• Scanning System : Progressive
• Electronic Shutter Speed : PAL: 1/25 s–1/100,000 s; / NTSC: 1/30 s–1/100,000 s
• Min. Illumination : 0.05 lux@F2.0 (Color, 30 IRE) / 0.005 lux@F2.0 (B/W, 30 IRE) / 0 lux (Illuminator on)
• S/N Ratio : >65 dB
• Illumination Distance : IR: 40 m (131.23 ft) / Warm light: 40 m (131.23 ft)
• Illuminator On/Off Control : Auto
• Illuminator Number : 4 (Warm light);4 (IR light)
• Angle Adjustment : Pan: 0°–355° / Tilt: 0°–90°

*DO NOT adjust the angle of the main body or enclosure manually

Lens

• Lens Type : Fixed-focal
• Auto Focus : No
• Lens Mount : M12
• Focal Length : 2.8 mm
• Max. Aperture : F2.0
• Field of View : 2.8 mm: H: 112°; V: 58°; D: 134°
• Iris Control : Fixed
• Close Focus Distance : 2.8 mm: 0.9 m

Video

• CVI: / PAL: 5M@25 fps; 5M@12.5 fps; 4M@25 fps; 1080p@25 fps
  NTSC: 5M@25 fps; 5M@10 fps; 4M@30 fps; 1080p@30 fps / AHD: / PAL: 4M@25 fps; / NTSC: 4M@30 fps / TVI: / PAL: 4M@25 fps; / NTSC: 4M@30 fps / CVBS: / PAL: 960H; / NTSC: 960H
• Resolution : 5M (2880 × 1620); 4M (2560 × 1440); 1080p (1920 × 1080); 960H (960 × 576/960 × 480)
• Day/Night : Auto(ICR)/Color/B/W
• BLC : BLC; HLC; DWDR
• WDR : DWDR
• White Balance : Auto;Manual
• Gain Control : Auto;Manual
• Noise Reduction : 2D NR
• Illumination Mode : Smart IR&WL; WL Mode; IR Mode
• Mirror : Yes
• Privacy Masking : Off/On (8 areas, rectangle)

Certification

• Certifications : CE-LVD: EN 62368-1; / CE-EMC: EN 55032; EN 55035

Port

• Video Output : Video output choices of CVI/TVI/AHD/CVBS by one BNC port
• Audio Input : One channel built-in Mic

Power

• Power Supply : 12 VDC ± 30% (It is recommended to use a power adapter to supply the power for one camera)
• Power Consumption : Max 6.4 W (12 V DC, LED on)

Environment

• Operating Temperature : –40 °C to +60 °C (–40 °F to +140 °F)
• Operating Humidity : <95% (RH), non-condensing
• Storage Temperature : –40 °C to +60 °C (–40 °F to +140 °F)
• Storage Humidity : <95% (RH), non-condensing
• Protection : IP66
• Anti-corrosion Level : Basic Protection

Structure

• Casing Material : Plastic
• Product Dimensions : 92.9 mm × 91.3 mm × 130 mm
• Net Weight : 0.39 kg
• Gross Weight : 0.64 kg
• Installation : Wall mount; ceiling mount; vertical pole mount
