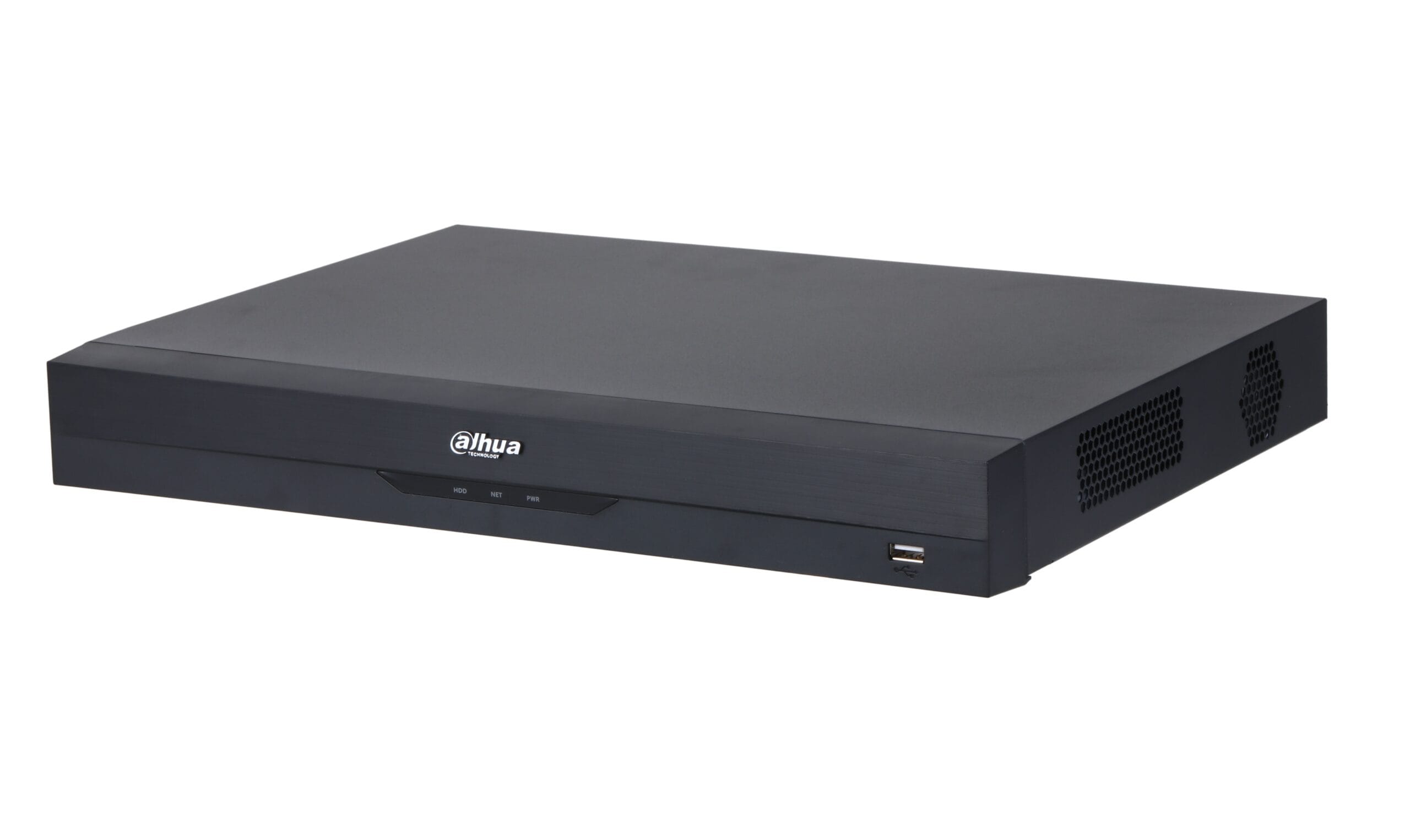

Dahua XVR 1080P 16channels H.265 Penta-brid 2HDD WizSense XVR5216AN-I3/T

Availability: In stock

Product Code:30970

Description:

• 16-ch Analog Video Input, Max. 5M-N@20fps/1080p@25fps Encoding Capability
• Max. 24-ch IP Video Input (Up to 6MP)
• 16-ch Two-way Talk
• AI Functions: 2-ch AcuPick, 2-ch FR, 4-ch Perimeter Protection, 16-ch SMD, 16-ch AI Coding
• 2 Bays. Up to 16TB for Each HDD Storage Capacity

Details:

• Main Processor : Industrial-grade processor
• Operating System : Embedded Linux
• Operating Interface : Web / Local GUI

• AcuPick Performance of AI by Recorder (1080P) (Number of Channels) : 2 channels

• Perimeter Performance AI by Recorder (Number of Channels) : 4 channels / 10 IVS rules for each channel

• Face Attributes : 6 attributes
• Face Detection Performance of AI by Recorder (Number of Channels) : 2 channels (up to 12 face images/s each channel)

• Face Database Capacity : Up to 10 face databases with 10,000 images.
• Face Recognition Performance of AI by Recorder (Number of Channels) : 2 channels

• SMD Plus by Recorder : 16 channels: Secondary filtering for human and vehicle / reducing false alarms caused by leaves / rain and lighting condition change
• SMD by Camera : 24 channels

• AI Video Quality Analytics by Recorder : 16 channels: Supports detecting brightness levels / color cast / defocus / overexposure / contrast levels / black and white

• Scene Changing by Recorder : 1 channel

• Irregular Black Block Masking by Recorder : 1 channel

• Analog Camera Input : 16 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect
• Camera Input : 1. CVI: 5 MP@25 fps / 5 MP@20 fps / 5 MP@10/12.5 fps / 4 MP@25/30 fps / 1080p@25/30 fps / 720p@50/60 fps / 720p@25/30fps /
• 2. TVI: 5 MP(2560 × 1944)@20 fps / 5 MP(2960 × 1665)@20/25 fps / 4 MP@25/30 fps / 1080p@25/30 fps / 720p@25/30 fps / 3. AHD: 5 MP@20 fps / 4 MP@25/30 fps / 1080p@25/30 fps / 720p@25/30 fps
• IP Camera Input : Up to 24 channels of IPC access / 8 IP channels by default + 16 channels (analog channels are converted to IP channels)
• Incoming bandwidth: 128 Mbps / recording bandwidth: 128 Mbps and outgoing bandwidth: 128 Mbps
• *After IP extension is enabled, Video Quality Analytics, Scene Changing, Face Recognition, Face Detection, Perimeter Protection and AcuPick cannot be used
• Encoding Capacity : Encode Enhancement disabled：Main stream : Channels 1-4 5M-N@(1 fps–25 fps) / others 5M-N@(1 fps–12 fps) / Channels 1-4 4M-N/1080p@(1 fps–30 fps) / others 4M-N/1080p@(1 fps–15 fps) 1080N/720p/960H/D1/CIF@(1 fps–30 fps) / Sub stream: D1/CIF@(1 fps–15 fps);
• Encode Enhancement enabled : Main stream : Channels 1-8 5M-N@(1 fps–20 fps) / others 5M-N@(1 fps-12 fps) / (4 channels can be transformed to 5MP@6 fps) Channels 1-8 4M-N/1080p@(1 fps–25 fps) / others 4M-N/1080p@(1 fps–15 fps) / 1080N/720p/960H/D1/CIF@(1 fps–30 fps) / Sub stream: D1/CIF@(1 fps–15 fps)*When Encode Enhancement is enabled, Video Quality Analytics, Scene Changing, Face Recognition, Face Detection, Perimeter Protection and AcuPick cannot be used
• Dual-stream : Yes
• Video Bit Rate : 32 kbps–6144 kbps
• Audio Sampling : 8 kHz, 16 bit
• Audio Bit Rate : 64 kbps
• Video Output : 1 HDMI / 1 VGA / HDMI: 3840 × 2160 / 1920 × 1080 / 1280 × 1024 / 1280 × 720 / VGA: 1920 × 1080 / 1280 × 1024 / 1280 × 720
• It changes to 1920 × 1080, 1280 × 1024, 1280 × 720 when Face, IVS&SMD or AcuPick is selected in AI Mode
• Multi-screen Display : When IP extension mode not enabled: 1/4/8/9/16 / When IP extension mode enabled: 1/4/8/9/16/25
• Third-party Camera Access : Panasonic / Sony / Hanwha / Axis / Arecont / ONVIF

• Video Compression : AI Coding / Smart H.265+ / H.265 / Smart H.264+ / H.264
• Audio Compression : G.711a / G.711u / PCM

• Network Protocol : HTTP / HTTPS / TCP/IP / IPv4 / IPv6 / RTSP / UDP / NTP / DHCP / DNS / SMTP / UPnP / IP Filter / FTP / DDNS / SNMP / Alarm Server / P2P / Auto Registration / IP Search (Supports IP camera / DVR / NVS / etc.)
• Mobile Phone Access : iOS / Android
• Interoperability : ONVIF 24.12 (Profile T / Profile S / Profile G) / CGI / SDK
• Browser : Chrome / IE / Safari / Edge / Firefox

• Record Mode : General / alarm / motion detection / intelligent
• Recording Playback : 1/4/9/16 / It changes to 1/4/9 split when Face or IVS&SMD or AcuPick is selected in AI Mode
• Backup Method : USB device and network
• Playback Mode : Instant playback / general playback / event playback / tag playback / smart playback

• Disk Group : Yes

• General Alarm : Motion detection / alarm box / HDCVI alarm / camera external alarm / network alarm / PIR alarm
• Anomaly Alarm : Error (no disk / disk error / low space / low quota space / network disconnection / IP conflict / MAC conflict) / video loss / video tampering / camera offline
• Intelligent Alarm : Face detection / face recognition / perimeter protection / SMD Plus
• Alarm Linkage : Record / snapshot (panoramic) / IPC external alarm output / audio / buzzer / log / preset / email

• Audio Input : 1-channel RCA / 16-channel BNC (Coaxial Audio)
• Audio Output : 1-channel RCA
• Two-way Talk : Coaxial two-way talk: 16-channel BNC / Local and network user two-way talk: Shares the same audio input with the first channel
• Disk Interface : 2 SATA ports. Each disk can contain up to 16 TB. This limit varies depending on the environment temperature.
• RS-485 : 1
• USB : 2 (1 front USB 2.0 port, 1 rear USB 3.0 port)
• HDMI : 1
• VGA : 1
• Network Port : 1 (10/100/1000 Mbps Ethernet port, RJ-45)

• Power Supply : 12 VDC / 4 A
• Power Consumption : <12 W (without HDD)
• Net Weight : 1.80 kg (3.97 lb)
• Gross Weight : 2.95kg (6.50 lb)
• Product Dimensions : 375.0 mm × 289.6 mm × 53.0 mm (14.76" × 11.40" × 2.09") (W × D × H)
• Packaging Dimensions : 427.0 mm × 137.0 mm × 356.0 mm (16.81" × 5.39" × 14.02") (W × D × H)
• Operating Temperature : –10 °C to +55 °C (+14 °F to +131 °F)
• Storage Temperature : –20 °C to +60 °C (–4 °F to +140 °F)
• Operating Humidity : 10%–90% (RH), non-condensing
• Installation : Desktop
• Certifications : CE-LVD: IEC 62368-1:2014 / CE-EMC: EN IEC 61000-3-2:2019 / EN 61000-3-3:2013+A1:2019 / EN 55032:2015+A11:2020, EN 55035:2017+A11:2020 / EN 55024:2010+A1:2015 / EN 50130-4:2011+A1:2014
