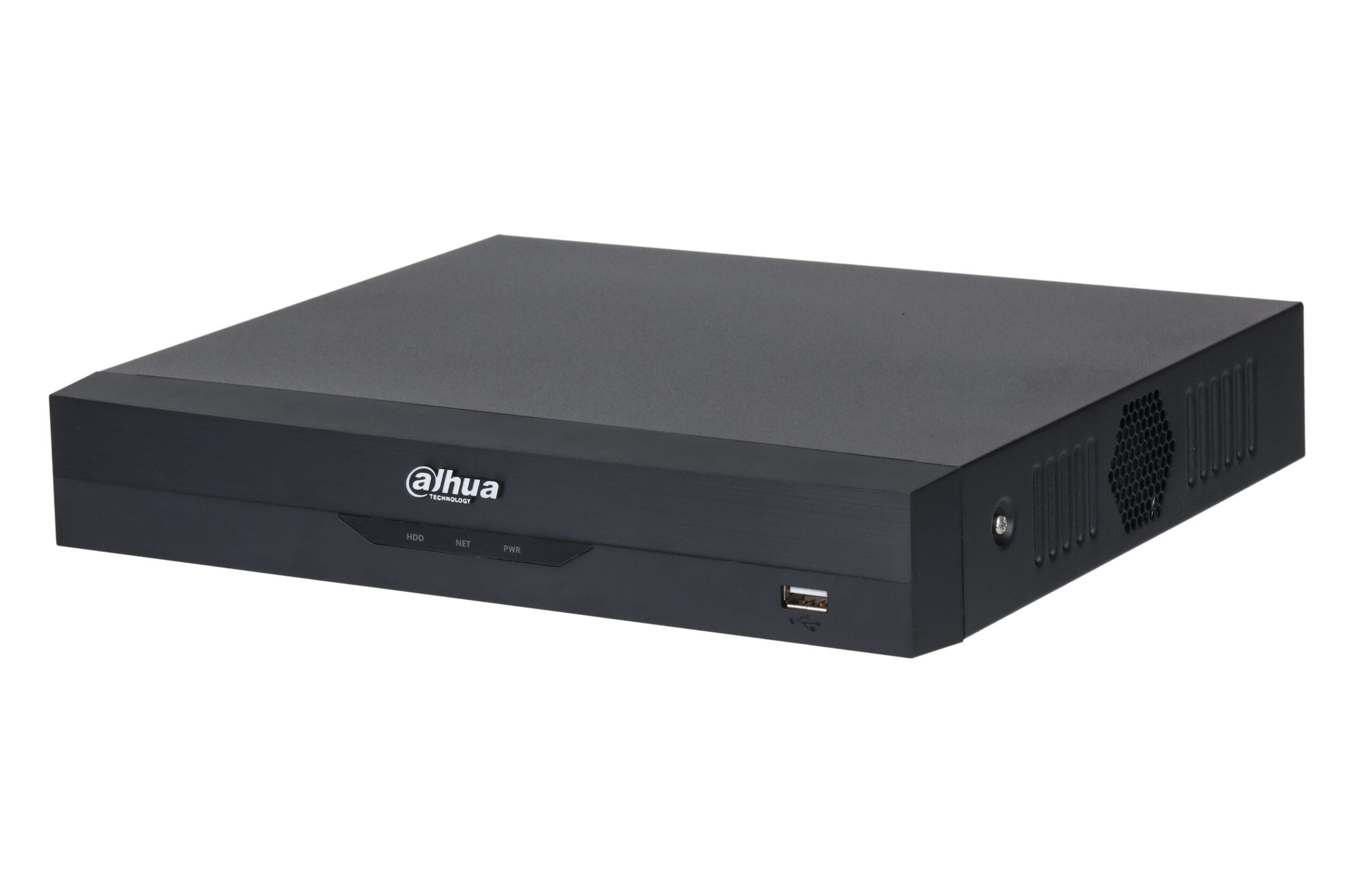

Description:
*Dolynk cloud version: DMSS 2.0.30 and above, Dolynk Care 2.50.20 and above
- 8-channel two-way talk over coaxial cable allows for seamless communication between the camera, client and recorder
- 2-channel AcuPick for analog channels which improves the efficiency of target retrieval
- 4-channel perimeter protection for analog channels which supports tripwire and intrusion detection powered by AI
- 2-channel face recognition for analog channels which supports face comparison
- 8-channel SMD Plus for analog channels or 12-channel SMD by camera which allows the device to trigger accurate alarms for humans and vehicles
- 8-channel AI Coding saves on storage and bandwidth while maintaining the details of targets in videos
- Supports HDCVI, AHD, TVI, CVBS and IP video input
- Supports up to 12-channel IP camera input and each channel can be up to 6 MP. The incoming bandwidth reaches 64 Mbps
- Supports accessing Wi-Fi cameras, making it suitable for a wide range of scenes
- Smart H.265+ and H.265 dual-stream video compression
Details:
System
- Main Processor : Industrial-grade processor
- Operating System : Embedded Linux
- Operating Interface : Web / Local GUI
AcuPick
- AcuPick Performance of AI by Recorder (1080P) (Number of Channels) : 2 channels
Perimeter Protection
- Perimeter Performance AI by Recorder (Number of Channels) : 4 channels / 10 IVS rules for each channel
Face Detection
- Face Attributes : 6 attributes
- Face Detection Performance of AI by Recorder (Number of Channels) : 2 channels (up to 8 face images/s each channel)
Face Recognition
- Face Database Capacity : Up to 10 face databases with 10,000 images.
- Face Recognition Performance of AI by Recorder (Number of Channels) : 2 channels
SMD
- SMD Plus by Recorder : 8 channels: Secondary filtering for human and vehicle, reducing false alarms caused by leaves, rain and lighting condition change
- SMD by Camera : 12 channels
AI Video Quality Analytics
- AI Video Quality Analytics by Recorder : 8 channels: Supports detecting brightness levels / color cast / defocus / overexposure / contrast levels / black and white
Scene Changing
- Scene Changing by Recorder : 1 channel
Irregular Black Block Masking
- Irregular Black Block Masking by Recorder : 1 channel
Audio and Video
- Analog Camera Input : 8 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect
- Camera Input : 1. CVI: 5 MP@25 fps / 5 MP@20 fps / 5 MP@10/12.5 fps / 4 MP@25/30 fps / 1080p@25/30 fps / 720p@50/60 fps / 720p@25/30fps / 2. TVI: 5 MP(2560 × 1944)@20 fps / 5 MP(2960 × 1665)@20/25 fps / 4 MP@25/30 fps / 1080p@25/30 fps / 720p@25/30 fps / 3. AHD: 5 MP@20 fps / 4 MP@25/30 fps / 1080p@25/30 fps / 720p@25/30 fps
- IP Camera Input : Up to 12 channels of IPC access / 4 IP channels by default + 8 channels (analog channels are converted to IP channels) / Incoming bandwidth: 64 Mbps, recording bandwidth: 64 Mbps and outgoing bandwidth: 64 Mbps / *After IP extension is enabled, Video Quality Analytics, Scene Changing, Face Recognition, Face Detection, Perimeter Protection and AcuPick cannot be used.
- Encoding Capacity
- Encode Enhancement disabled ：Main stream : Channels 1-2 5M-N@(1 fps–25 fps), others 5M-N@(1 fps–12 fps) / Channels 1-2 4M-N/1080p@(1 fps–25/30 fps), others 4M-N/1080p@(1 fps–15 fps) / 1080N/720p/960H/D1/CIF@(1 fps–25/30 fps) / Sub stream: D1/CIF@(1 fps–15 fps)
- Encode Enhancement enabled ：Main stream : Channels 1-4 5M-N@(1 fps–20 fps), others 5M-N@(1 fps–12 fps) / (4 channels can be transformed to 5MP@6 fps / Channels 1-4 4M-N/1080p@(1 fps–25 fps), others 4M-N@(1 fps–15fps)/1080p@(1 fps–12 fps) / 1080N/720p/960H/D1/CIF@(1 fps–25/30 fps) / Sub stream: D1/CIF@(1 fps–15 fps) / *When Encode Enhancement is enabled, Video Quality Analytics, Scene Changing, Face Recognition, Face Detection, Perimeter Protection and AcuPick cannot be used.
- Dual-stream : Yes
- Video Bit Rate : 32 kbps–6144 kbps
- Audio Sampling : 8 kHz, 16 bit
- Audio Bit Rate : 64 kbps
- Video Output : 1 HDMI / 1 VGA / HDMI: 1920 × 1080, 1280 × 1024, 1280 × 720
- VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
- Multi-screen Display : When IP extension mode not enabled: 1/4/8/9
- When IP extension mode enabled: 1/4/9/16
- Third-party Camera Access : Panasonic / Sony / Hanwha / Axis / Arecont / ONVIF
Compression Standard
- Video Compression : AI Coding / Smart H.265+ / H.265 / Smart H.264+ / H.264
- Audio Compression : G.711a / G.711u / PCM
Network
- Network Protocol : HTTP / HTTPS / TCP/IP / IPv4 / IPv6 / RTSP / UDP / NTP / DHCP / DNS / SMTP / UPnP / IP Filter / FTP / DDNS / SNMP / Alarm Server / P2P / Auto Registration / IP Search (Supports IP camera, DVR, NVS, etc.)
- Mobile Phone Access : iOS / Android
- Interoperability : ONVIF 24.12 (Profile T / Profile S / Profile G) / CGI / SDK
- Browser : Chrome / IE / Safari / Edge / Firefox
Recording Playback
- Record Mode : General / alarm / motion detection / intelligent
- Recording Playback : 1/4/9 / It changes to 1/4 split when Face or IVS&SMD or AcuPick isselected in AI Mode
- Backup Method : USB device and network
- Playback Mode : Instant playback / general playback / event playback / tag playback / smart playback
Alarm
- General Alarm : Motion detection / alarm box / HDCVI alarm / camera external alarm / network alarm / PIR alarm
- Anomaly Alarm : Error (no disk / disk error / low space / low quota space / network disconnection / IP conflict / MAC conflict) / video loss / video tampering / camera offline
- Intelligent Alarm : Face detection / face recognition / perimeter protection / SMD Plus
- Alarm Linkage : Record / snapshot (panoramic) / IPC external alarm output / audio / buzzer / log / preset / email
Ports
- Audio Input : 1-channel RCA / 8-channel BNC (Coaxial Audio)
- Audio Output : 1-channel RCA
- Two-way Talk : Coaxial two-way talk: 8-channel BNC
- Local and network user two-way talk: Shares the same audio input with the first channel
- Disk Interface : 1 SATA port, up to 16 TB. This limit varies depending on the environment temperature
- RS-485 : 1
- USB : 2 (1 front USB 2.0 port, 1 rear USB 2.0 port)
- HDMI : 1
- VGA : 1
- Network Port : 1 (10/100 Mbps Ethernet port, RJ-45)
General
Power Supply : 12 VDC / 2 A
Power Consumption : <7 W (without HDD)
Net Weight : 1.17 kg (2.58 lb)
Gross Weight : 1.48kg (3.26 lb)
Product Dimensions : 260.0 mm × 237.8 mm × 47.6 mm (10.24" × 9.36" × 1.87") (W × D × H)
Packaging Dimensions : 344.0 mm × 89.0 mm × 287.0 mm (13.54" × 3.50" × 11.30") (W × D × H)
Operating Temperature : –10 °C to +55 °C (+14 °F to +131 °F)
Storage Temperature : –20 °C to +60 °C (–4 °F to +140 °F)
Operating Humidity : 10%–90% (RH), non-condensing
Installation : Desktop
Certifications : CE-LVD: IEC 62368-1:2014 / CE-EMC: EN IEC 61000-3-2:2019 / EN 61000-3-3:2013+A1:2019 / EN 55032:2015+A11:2020 / EN 55035:2017+A11:2020 / EN 55024:2010+A1:2015 / EN 50130-4:2011+A1:2014
