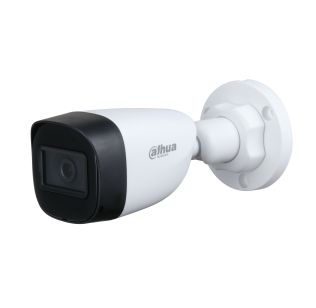

Dahua HDCVI 5.0MP Bullet 2.8mm HFW1500C-S2

Availability: In stock

Product Code:26145

Description:

The parameters and datasheets below can only be applied to 1500-S2 series

In order to use the 5MP 16:9 HDCVI camera, the firmware of XVR must be upgraded to V4.001.0000001.0.R.200908 or later version.

• Max 25 fps@5MP (16:9 video output)
• CVI/CVBS/AHD/TVI switchable
• 3.6 mm fixed lens (2.8 mm optional)
• Max. IR length 30 m, Smart IR
• Built-in mic(-A)
• IP67, DC12V

Details:

Camera

• Image Sensor : 1/2.7 inch CMOS
• Max. Resolution : 2880 (H) × 1620 (V)
• Scanning System : Progressive
• Electronic Shutter Speed : PAL: 1/25s–1/100000s , NTSC: 1/30s–1/100000s
• S/N Ratio : >65 dB

Lens

• Lens Type : Fixed-focal
• Lens Mount : M12
• Focal Length : 2.8 mm , 3.6 mm
• Max. Aperture : F1.6
• Field of View : 2.8 mm: 132° × 111° × 58°(diagonal × horizontal × vertical) , 3.6 mm: 109° × 92° × 48°(diagonal × horizontal × vertical)
• Iris Control : Fixed
• Close Focus Distance : 3.6 mm: 1.3 m

Video

• Video Frame Rate : CVI: PAL: 5M@25 fps; 4M@25 fps; 1080p@25 fps;
• NTSC: 5M@25 fps; 4M@30 fps; 1080p@30 fps /AHD: PAL: 4M@25 fps; NTSC: 4M@30 fps / TVI: PAL: 4M@25 fps; NTSC: 4M@30 fps / CVBS: PAL: 960H; NTSC: 960H
• Resolution : 5M (2880 × 1620); 4M (2560 × 1440); 1080p (1920 × 1080); 960H (960 × 576/960 × 480)
• Day/Night : Auto switch by ICR
• BLC : BLC; HLC; DWDR
• WDR : DWDR
• White Balance : Auto; Area white balance
• Gain Control : Auto/Manual
• Noise Reduction : 2D NR
• Mirror : Yes
• Privacy Masking : Off/On (8 areas, rectangle)

Certification

• Certifications : CE (EN 55032:2015, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 55024:2010+A1:2015, EN 55035:2017, EN 50130-4:2011+A1:2014, EN 62368-1:2014+A11:2017)
  FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
  UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

Port

• Video Output : Video output choices of CVI/TVI/AHD/CVBS by one BNC port
• Audio Input : One channel built-in mic

Power

• Power Supply : 12 VDC ± 30%
• Power Consumption : Max 3.1 W (12 VDC, WLED on)

Environment

• Operating Temperature : –40 °C to +60 °C
• Operating Humidity : <95% (RH), non-condensing
• Storage Temperature : –40 °C to +60 °C
• Storage Humidity : <95% (RH), non-condensing
• Protection: IP67

Structure

• Casing Material : Plastic
• Product Dimensions : 161.3mm×69.7mm×70.0mm(6.35"×2.75"×2.75" )
• Net Weight : 0.19 kg kg
• Gross Weight : 0.29 kg
