- Person/Vehicle/Pet Detection
- 12MP Ultra HD
- Power over Ethernet
- 16-Channel NVR with 4TB HDD

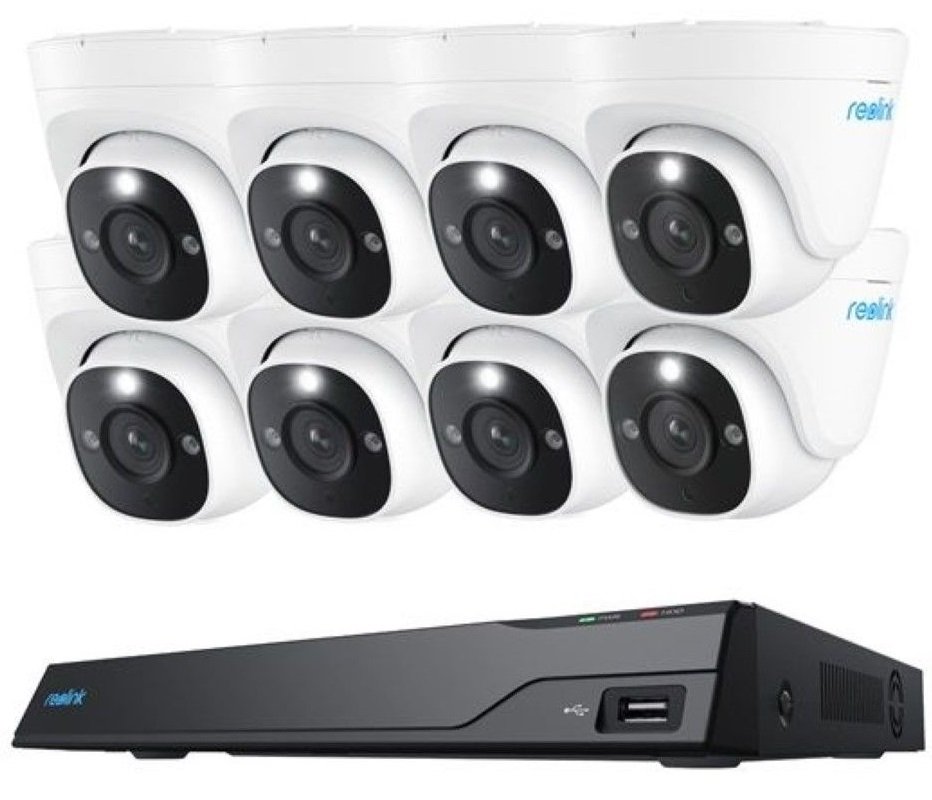

Reolink KIT 16xChNVR+8x12MP Dome+4TB NVS16-12MD8
1.159,00 €
Out of stock
Out of stock
Pairs well with
Popular add-ons for this product
Code: 27960- Length: 1.8 m
- Power: 100W
In stock · delivery across CyprusFree pickup in Limassol19,99 €Add to cart
More options
Similar IP Cameras & NVR in a similar price range
Specifications
Hardware1
- N6MB01
Video/Audio Input2
- IP Video Input
- PoE IP Camera x 16
- Audio Input
- Cameras with built-in mic
Video/Audio Output3
- Video Output
- VGA, HDMI
- Display Resolution
- HDMI: 4096*3072, 3840*2160, 1920*1080, 1440*900, 1280*1024, 1280*800, 1280*720, 1024*768 / VGA: 1920*1080, 1440*900, 1280*1024, 1280*720, 1024*768
- Audio output
- 1-channel, RCA
Decoding3
- Live View/Playback Resolution
- 7680×2160,4096*3072/3840*2160/2560*1920/2560*1440/2048*1536/2304*1296/1080p/720p
- Video Format
- H.265, H.264
- Synchronous Playback
- Up to 4 channels
HDD3
- SATA
- 2 x SATA interface (1 x 4TB HDD included)
- Capacity
- Up to 12TB (Max. 6TB capacity for each HDD)
- External HDD
- No
External Interface3
- USB Interface
- 2 x USB 2.0
- Network Interface
- 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface for LAN/WAN
- PoE
- 16, RJ-45 10/100 Mbps self-adaptive PoE Ethernet interface for IP camera
PoE2
- Max. Power Per Port
- 25W
- Supported Standard
- IEEE 802.3 af/at
Network4
- Network Protocol
- HTTP, TCP/IP, UDP, DHCP, P2P, UPNP, RTSP, SMTP, SSL/TLS, DNS, DDNS, NTP, FTP
- Browser Supported
- Edge, Firefox, Chrome, Safari
- OS Supported
- Windows, Mac OS; Smartphone: iOS, Android
- Max. User Access
- 20 users (1 admin account & 19 user accounts); supports up to 12 simultaneous video streams (10 substreams & 2 mainstreams)
General5
- Power Supply
- DC 48V~54V
- Power Consumption
- <10W (without HDD&PoE)
- Working Environment
- Temperature: -10°C~+45°C Humidity: 10%~90%
- Dimensions
- 330 x 45 x 285mm
- Weight
- 2.4kg
Camera10
- Video & Audio
- Image Sensor
- 1/2.49" CMOS Sensor
- Video Resolution
- Default: 4512X2512 (12 megapixels) at 20 fps
- Lens
- f=4.0mm; F=1.6, with IR-cut filter
- Videoformat
- H.265
- Field of View
- Horizontal: 93°; / Vertical: 49°
- Day & Night
- Auto-switching with IR-cut filter
- Infrared Night Vision
- 30 meters (LED: 2pcs/28mil/850nm)
- Color Night Vision
- Spotlight: 1pcs/4.3W/6500K/700 Lumens
- Audio
- Two-way audio (via Reolink App/Client)
Power2
- PoE
- IEEE 802.3af, 48V Active
- DC Power
- DC 12.0V⎓1A, <12W
Interface4
- Power
- DC power port
- System
- Reset button
- Ethernet
- One 10M/100Mbps; RJ45
- Audio
- Built-in microphone and speaker
Software Features3
- Frame Rate
- Mainstream: 2fps - 20fps (default: 20fps); / Substream: 4fps - 20fps (default: 10fps)
- Code Rate
- Mainstream: 3072Kbps - 10240Kbps (default: 8192Kbps); / Substream: 128Kbps - 1024Kbps (default: 768Kbps)
- Smart Alarm
- Motion detection; person detection; vehicle detection; pet detection
Working Environment3
- Temperature
- Operating temperature: -10°C to +55°C (14°F~131°F)
- Humidity
- Operating humidity: 10% – 90%
- Weatherproof
- IP67
Size & Weight2
- Dimension
- Φ117.4*103.7mm
- Weight
- 510g
