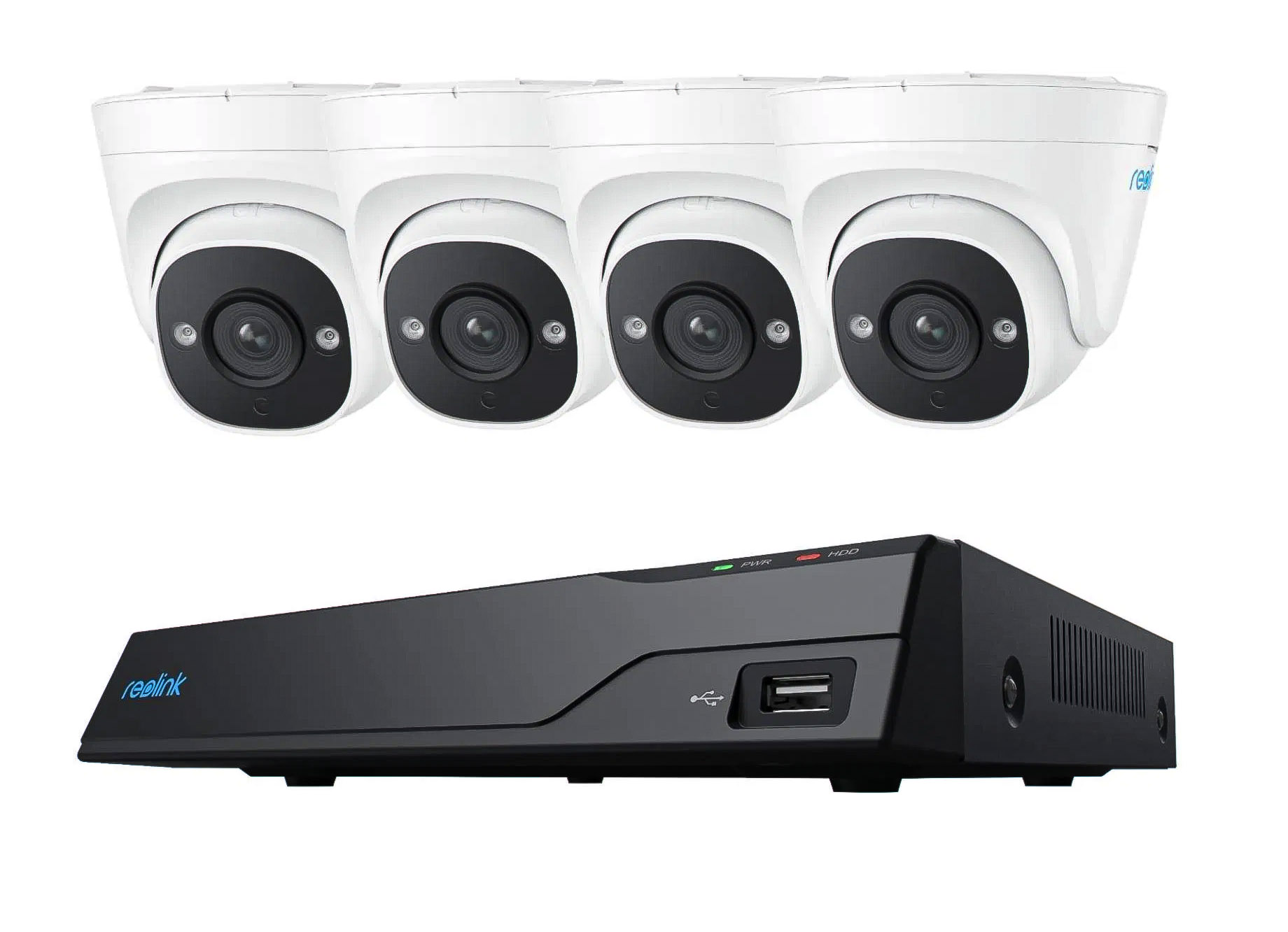

Reolink KIT 8xChNVR+4x5MP Dome+2TB RLK8-520D4-5MP (NVS8-5MD4)
Add to cart
AJAX SURVEILLANCE NVR 8ch 100Mbps H.265/H.264 AJAX SURVEILLANCE NVR 8ch 100Mbps H.265/H.264 402,00 €
Reolink POE IP Bullet Camera 12MP Fixed RLC-1212A (P340) Reolink POE IP Bullet Camera 12MP Fixed RLC-1212A (P340) 119,99 €

Reolink KIT 8xChNVR+4x5MP Dome+2TB RLK8-520D4-5MP (NVS8-5MD4)

549,99 €

In stock · delivery across CyprusFree pickup in Limassol
5.0 on Google · 12+ reviews
Add to Cart
Reolink KIT 8xChNVR+4x5MP Dome+2TB RLK8-520D4-5MP (NVS8-5MD4)
Reolink KIT 8xChNVR+4x5MP Dome+2TB RLK8-520D4-5MP (NVS8-5MD4)
549,99 €

Free store pick-up in Limassol · Delivery across Cyprus from €2

Reolink KIT 8xChNVR+4x5MP Dome+2TB RLK8-520D4-5MP (NVS8-5MD4)
Reolink KIT 8xChNVR+4x5MP Dome+2TB RLK8-520D4-5MP (NVS8-5MD4)
549,99 €

Or contact us directly:

📞 25 102 760
📱 96 401 000

Pairs well with

Popular add-ons for this product

More options

Similar IP Cameras & NVR in a similar price range

Specifications

Hardware1
N7MB01
Video/Audio Input2
IP Video Input
PoE IP Camera x 8
Audio Input
Cameras with built-in mic
Video/Audio Output3
Video Output
VGA, HDMI
Display Resolution
HDMI: 3840*2160, 1920*1080, 1440*900, 1280*1024, 1280*800, 1280*720, 1024*768 / VGA: 1920*1080, 1440*900, 1280*1024, 1280*720, 1024*768
Audio output
1-channel, RCA
Decoding3
Live View/Playback Resolution
7680×2160,4096*3072/3840*2160/2560*1920/2560*1440/2048*1536/2304*1296/1080p/720p
Video Format
H.265, H.264
Synchronous Playback
Up to 4 channels
HDD3
SATA
1 x SATA interface (1 x 2TB HDD included)
Capacity
Up to 12TB (Max. 6TB capacity for each HDD)
External HDD
1 eSATA Interface for HDD
External Interface3
USB Interface
2 x USB 2.0
Network Interface
1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface for LAN/WAN
PoE
16, RJ-45 10/100 Mbps self-adaptive PoE Ethernet interface for IP camera
PoE2
Max. Power Per Port
25W
Supported Standard
IEEE 802.3 af/at
Network4
Network Protocol
HTTP, TCP/IP, UDP, DHCP, P2P, UPNP, RTSP, SMTP, SSL/TLS, DNS, DDNS, NTP, FTP
Browser Supported
Edge, Firefox, Chrome, Safari
OS Supported
Windows, Mac OS; Smartphone: iOS, Android
Max. User Access
20 users (1 admin account & 19 user accounts); supports up to 12 simultaneous video streams (10 substreams & 2 mainstreams)
General5
Power Supply
DC 48V~53V
Power Consumption
<10W (without HDD&PoE)
Working Environment
Temperature: -10°C~+45°C  Humidity: 10%~90%
Dimensions
255 x 49.5 x 232mm
Weight
1.4kg
Warranty1
Limited Warranty
2-year limited warranty
Video & Audio8
Image Sensor
1/2.7" CMOS sensor
Video Resolution
Default: 2880 x 1616 (5.0 Megapixels) at 30 frames/sec
Lens
f=4.0mm fixed; F=2.0, with IR-cut filter
Video Format
H.264
Field of View
Horizontal: 80° /  Vertical: 42°
Day & Night
Auto-switching with IR-cut filter
Night Vision
30 meters (100ft) (LED: 2pcs/1.8W/850nm)
Audio
Audio recording
Power2
PoE
IEEE 802.3af, 48V Active
DC Power
DC 12.0V⎓1A, <12W
Interface5
Power
DC power port
System
Reset button
Ethernet
One 10M/100Mbps; RJ45
Storage
MicroSD card slot (Max. 256GB)
Audio
Built-in microphone
Software Features9
Frame Rate
Mainstream: 2fps - 30fps (default: 30fps) /  Substream: 4fps - 15fps (default: 10fps)
Code Rate
Mainstream: 1024Kbps -8192Kbps (default: 6144Kbps) /  Substream: 64Kbps - 512Kbps (default: 256Kbps)
Browser Supported
Edge, Chrome, Firefox, Safari
OS Supported
PC: Windows, Mac OS; Smartphone: iOS, Android
Smart Alarm
Motion detection/Person detection/Vehicle detection
Record Mode
Motion-triggered recording (default); scheduled recording; 24/7 recording
Protocols & Standards
HTTPS, SSL, TCP/IP, UDP, HTTP, IPv4, UPnP, RTSP, RTMP, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P
Maximal User Access
20 users (1 admin account & 19 user accounts); support up to 12 simultaneous video streams (10 substreams & 2 mainstreams)
Smart Home
Google Assistant
Working Environment3
Temperature
Operating temperature: -10°C ~ +55°C
Humidity
Operating humidity: 10% ~ 90%
Waterproof
IP66
Size & Weight2
Dimension
Φ105*93mm
Weight
480g
  • Power over Ethernet
  • With 8-Channel NVR
  • 2TB HDD Built-in
  • Person/Vehicle Detection
SKU: 28177 Categories: , Brand:

Related products
