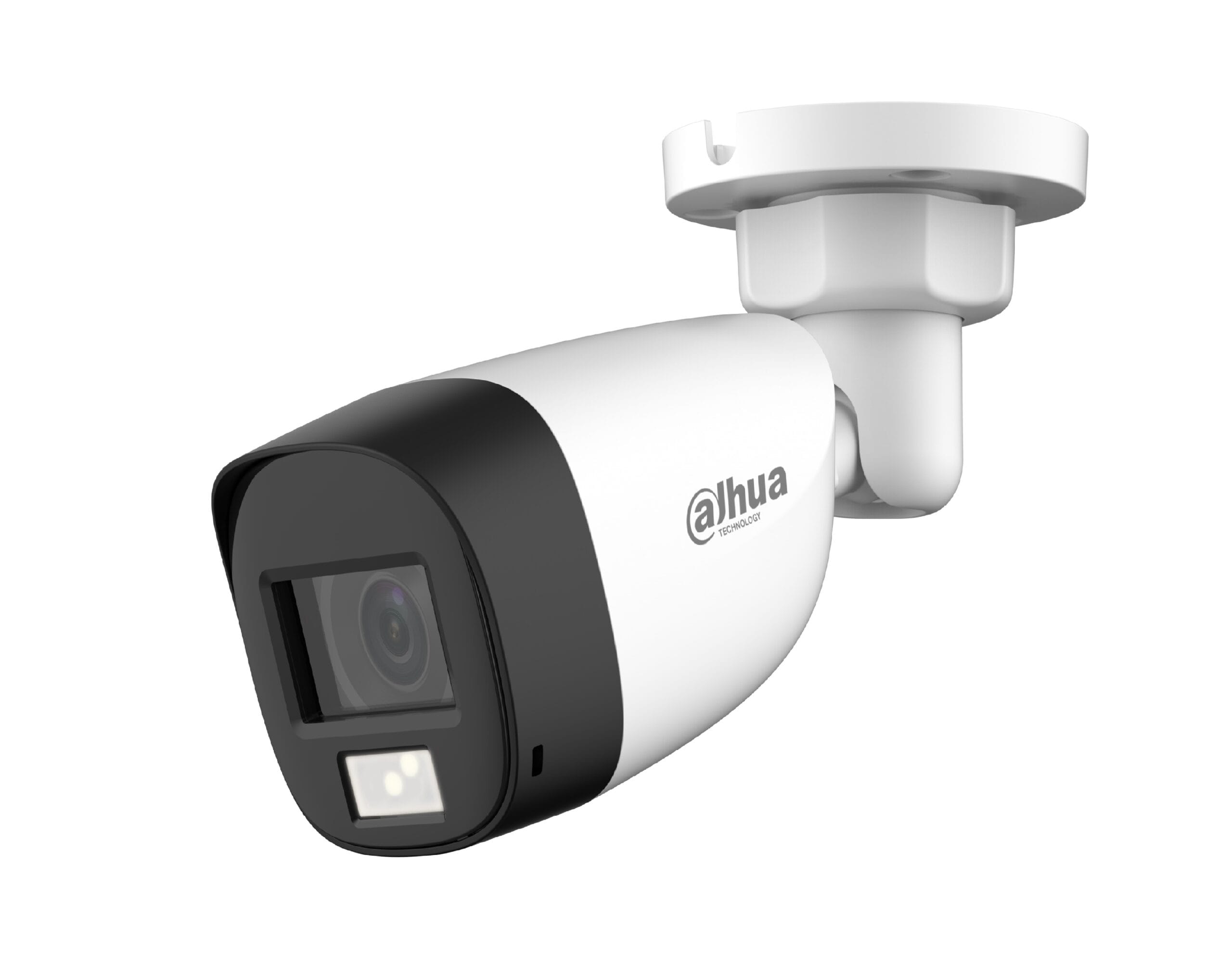

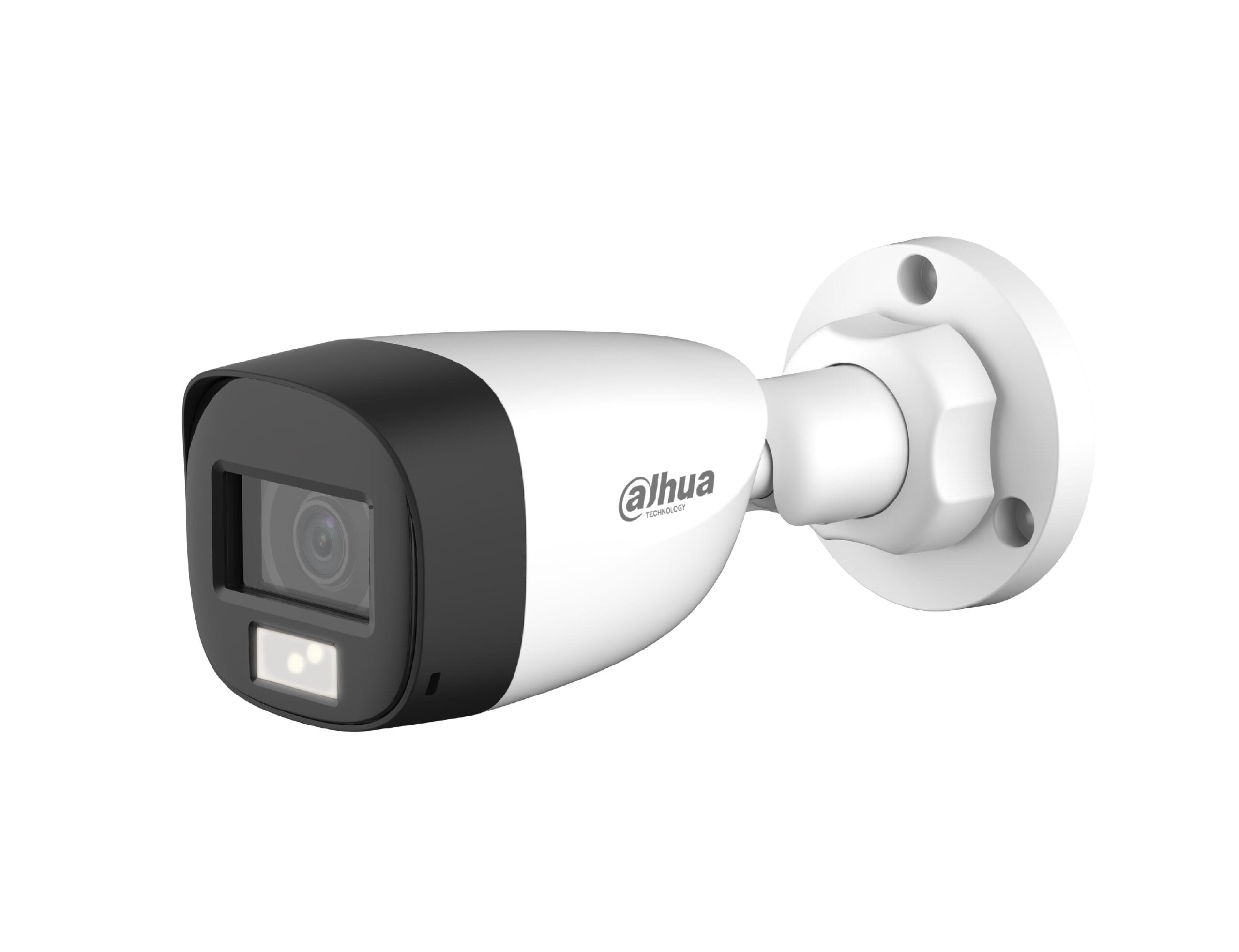

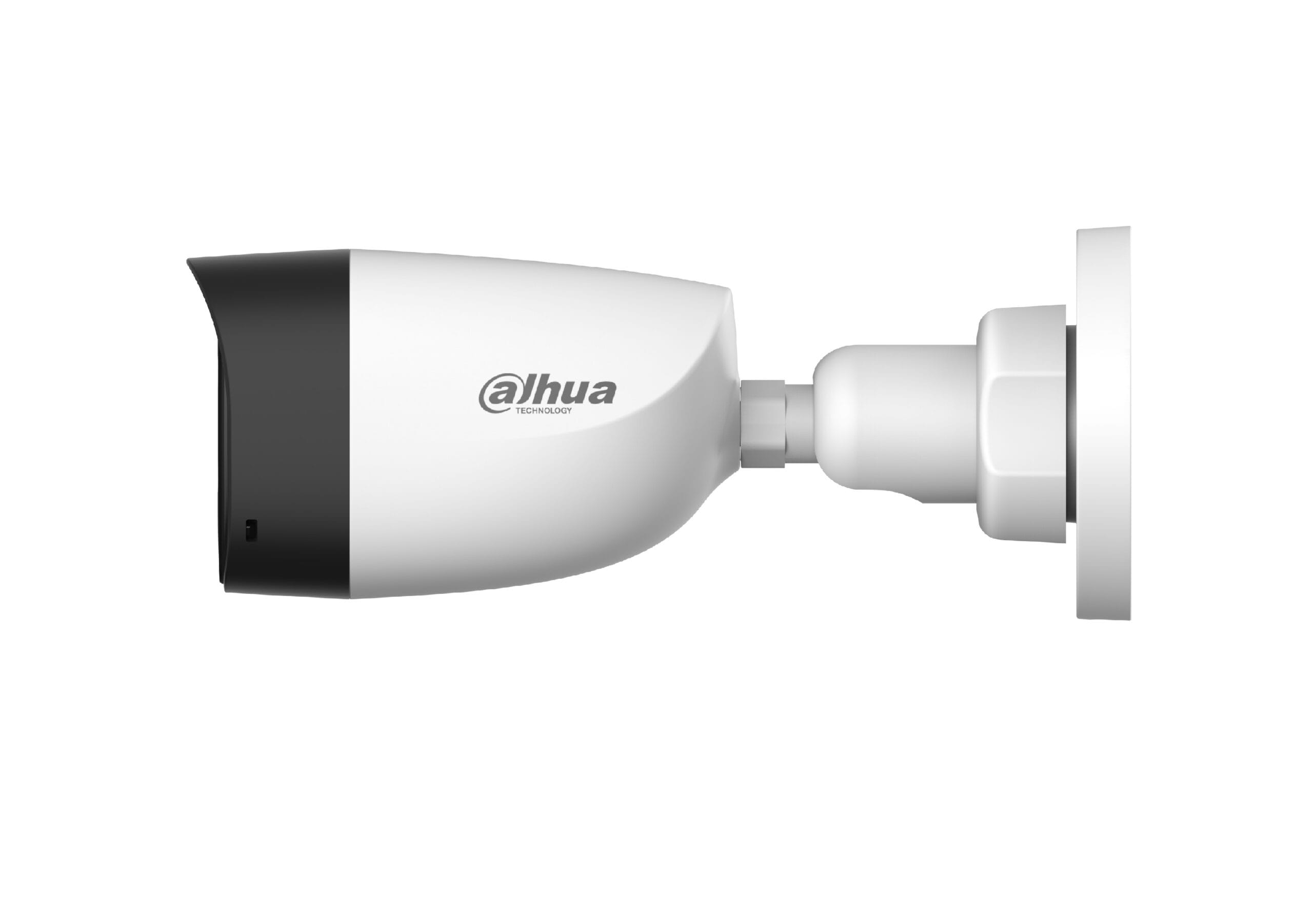

Dahua HDCVI 5.0MP Bullet 3.6mm HFW1500CL-IL-A-0360B-S2

Availability: In stock

Product Code:24950

Description:

* In order to use the 5MP 16:9 and the Smart Dual Light HDCVI camera, the firmware of XVR must be upgraded to V4.001.0000004.1.R.220323 or later version

• Max 25 fps@5MP (16:9 video output)
• Smart Dual Light
• 20 m illumination distance
• Super Adapt
• Built-in MIC
• 3.6 mm fixed lens
• CVI/CVBS/AHD/TVI switchable
• IP67, 12 VDC

Details:

Camera

• Image Sensor : 5 MP CMOS
• Max. Resolution : 2880 (H) × 1620 (V)
• Scanning System : Progressive
• Electronic Shutter Speed : PAL: 1/25 s–1/100000 s / NTSC: 1/30 s–1/100000 s
• Min. Illumination : 0.05 lux@F1.6 (Color, 30 IRE) / 0.005 lux@F1.6 (B/W, 30 IRE) / 0 lux (Illuminator on)
• S/N Ratio : >65 dB
• Illumination Distance : IR: 20 m / Warm Light: 20 m
• Illuminator On/Off Control : Auto/Manual
• Illuminator Number: 2 (Warm light);2 (IR light)

Lens

• Lens Type : Fixed-focal
• Lens Mount : M12
• Focal Length :  3.6 mm
• Max. Aperture : F1.6
• Field of View : 3.6 mm: H: 92°; V: 48°; D: 109°
• Iris Control : Fixed
• Close Focus Distance : 3.6 mm: 1.3 m

Video

• Video Frame Rate : CVI : PAL: 5M@25 fps; 4M@25 fps; 1080p@25 fps; NTSC: 5M@25 fps; 4M@30 fps; 1080p@30 fps / AHD : PAL: 4M@25 fps; NTSC: 4M@30 fps / TVI: PAL: 4M@25 fps; NTSC: 4M@30 fps / CVBS: PAL: 960H;
• NTSC: 960H
• Resolution : 5M (2880 × 1620); 4M (2560 × 1440); 1080p (1920 × 1080); 960H (960 × 576/960 × 480)
• Day/Night : Auto(ICR)/Color/B/W
• BLC :BLC; HLC; DWDR;
• WDR : DWDR
• White Balance : Auto; Area white balance
• Gain Control : Auto/Manual
• Noise Reduction : 2D NR
• Illumination Mode : Smart IR&WL; WL Mode; IR Mode
• Mirror : Yes
• Privacy Masking : Off/On (8 areas, rectangle)

Certification

• Certifications : CE-LVD: EN 62368-1; / CE-EMC: EN 55032; EN 55035; / FCC: 47 CFR FCC Part 15, Subpart B

Port

• Video Output : Video output choices of CVI/TVI/AHD/CVBS by one BNC port
• Audio Input : 1-channel built-in MIC

Power

• Power Supply : 12 VDC ± 30%
• Power Consumption : Max 4.5 W (12 VDC, WLED on)

Environment

• Operating Temperature : –40 °C to +60 °C
• Operating Humidity : <95% (RH), non-condensing
• Storage Temperature : –40 °C to +60 °C
• Storage Humidity : <95% (RH), non-condensing
• Protection : IP67

Structure

• Casing Material : Plastic
• Product Dimensions : 163.4 mm × 69.7 mm × 70 mm
• Net Weight : 0.19 kg
• Gross Weight : 0.27 kg
• Installation : Wall mount; ceiling mount; vertical pole mount
