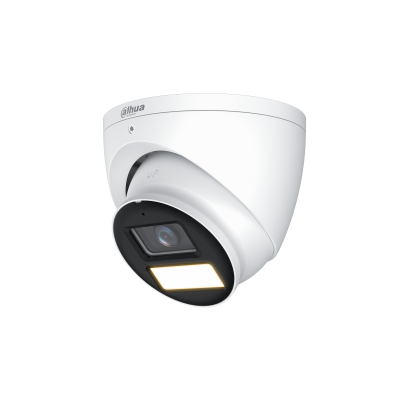

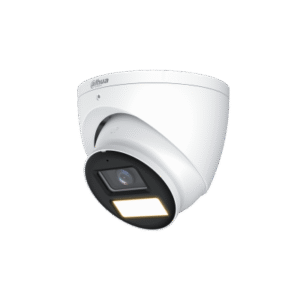

Dahua HDCVI 5.0MP Dome 2.8mm HDW1509T-A-LED-0280B-S3

Availability: In stock

Product Code:28289

Description:

* The parameters and datasheets below can only be applied to 1509-S3 series.

*In order to use the 5MP 16:9 HDCVI camera, the firmware of XVR must be upgraded to V4.001.0000001.0.R.200908 or later version

• Max 25 fps@5MP (16:9 video output)
• Super Adapt, 120 dB true WDR, 3D NR
• 24/7 color imaging
• Smart Light+
• Smart Area Lighting
• Built-in Mic
• 40 m illumination distance
• CVI/CVBS/AHD/TVI switchable
• 2.8 mm fixed
• mm fixed lens
• IP67, 12 VDC

Details:

• Image Sensor : 5 MP CMOS
• Max. Resolution : 2880 (H) × 1620 (V)
• Scanning System : Progressive
• Electronic Shutter Speed : PAL: 1/3 s–1/100,000 s; / NTSC: 1/4 s–1/100,000 s
• Min. Illumination : 0.0005 lux@F1.0 (Color, 30 IRE) / 0 lux (Illuminator on
• S/N Ratio : >65 dB
• Illumination Distance : 40 m (131 ft)
• Illuminator On/Off Control : Auto/Manual
• Illuminator Number : 4 (Warm light)
• Angle Adjustment : Pan: 0°–360° / Tilt: 2°–75° ./ Rotation: 0°–360°

• Lens Type : Fixed-focal
• Auto Focus : No
• Lens Mount : M12
• Focal Length : 2.8 mm
• Max. Aperture : F1.0
• Field of View : 2.8 mm: H: 112°; V: 57°; D: 132°
• Iris Control : Fixed
• Close Focus Distance : 2.8 mm: 2 m

•
• Resolution : 5M (2880 × 1620); TVI 5M 16:9 (2960 × 1665); 4M (2560 × 1440); 1080p (1920 × 1080); 960H (960 × 576/960 × 480)
• Day/Night : Color
• BLC : BLC; HLC; WDR; HLC-Pro
• WDR : 120 dB
• White Balance : Auto;Area white balance
• Gain Control : Auto/Manual
• Noise Reduction : 3D NR
• Illumination Mode : Smart Light
• Defog : Electronic defog
• Digital Zoom : 4×
• Mirror : Yes
• Privacy Masking : Off/On (8 areas, rectangle)
• Pick-up Distance : 8 m (26.25 ft)

• Certifications : CE-LVD: EN 62368-1; / CE-EMC: EN 55032; EN 55035;

• Built-in Mic : Yes

• Video Output : Video output choices of CVI/TVI/AHD/CVBS by one BNC port
• Alarm Output : 1 channel

• Power Supply : 12 VDC ± 30% (It is recommended to use a power adapter to supply the power for one camera)
• Power Consumption : Max 9 W (12 VDC, LED on)

• Operating Temperature : –40 °C to +60 °C (–40 °F to +140 °F)
• Operating Humidity : <95% (RH), non-condensing
• Storage Temperature : –40 °C to +60 °C (–40 °F to +140 °F)
• Storage Humidity : <95% (RH), non-condensing
• Protection : IP67
• Anti-corrosion Level : Basic Protection

• Casing Material : Metal
• Product Dimensions : Φ106.0 mm × 96.9 mm (Φ4.17" × 3.81")
• Net Weight : 0.49 kg (1.08 lb)
• Gross Weight : 0.68 kg (1.50 lb)
• Installation : Wall mount; ceiling mount; vertical pole mount
