- Uncooled VOx thermal sensor technology
- Athermalized lens (thermal camera), focus-free
- 1/2.7'' 4Megapixel progressive scan CMOS
- Support ROI, motion detection, color palettes
- Smoking and call behaviour detection
- Support fire detection & alarm
- Built-in 1/1 alarm in/out
- Micro SD memory, IP67, PoE
- Smart linkage with strobe light & audio
- Dual image fusion (visible and thermal images)

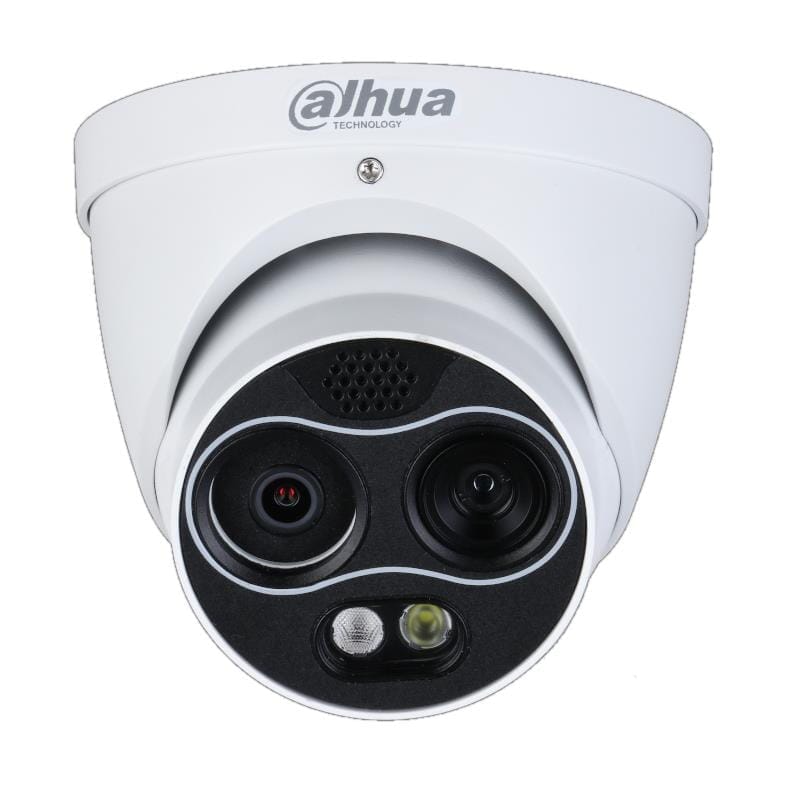

Dahua IP 4.0MP Dome Thermal WizSense TPC-DF1241-D3F4
914,00 €
Out of stock
Out of stock
Pairs well with
Popular add-ons for this product
- In stock · delivery across CyprusFree pickup in LimassolOriginal price was: 15,99 €.13,99 €Current price is: 13,99 €.Add to cart
- Code: 27470
- Length: 1 m
- Power: 100W
In stock · delivery across CyprusFree pickup in Limassol10,99 €Add to cart
More options
Similar IP Cameras & NVR in a similar price range
Specifications
Thermal18
- Detector Type
- Vanadium Oxide Uncooled FPA
- Max. Resolution
- 256 × 192
- Pixel Pitch
- 12 μm
- Spectral Range
- 8 μm–14 μm
- Thermal Sensitivity (NETD)
- < 50 mK (@f/1.0,25Hz,300K)
- Focal Length
- 3.5 mm
- Field of View H
- 50.6°, V 37.8°
- Close Focus Distance
- 0.5 m
- Effective Distance Human (1.8 m × 0.5 m)
- D: 146 m / R: 38 m / I: 19 m
- Effective Distance Vehicle (4.0 m × 1.4 m)
- D: 389 m / R: 97 m / I: 49 m
- Aperture
- F1.0
- Digital Detail Enhancement (DDE)
- Yes
- Digital Zoom
- 16 ×
- AGC
- Auto; Manual
- Noise Reduction
- 2D NR; 3D NR
- Image Flip
- 90°; 180°; 270°
- ColorPalettes
- 18(Whitehot/Blackhot/Ironrow/Icefire/Fusion/Rainbow/Globow/Iconbow1/Iconbow2, etc.)
- Fusion Mode
- 3 (Warm color; cool color; Ironred)
Visible24
- Image Sensor
- 1/2.7'' CMOS
- Max. Resolution
- 2336 × 1752
- Pixel
- 4MP
- Electronic Shutter Speed
- 1/30000 s–1 s
- Min. Illumination
- Color: 0.05 Lux
- Black & white
- 0.005 Lux : 0 Lux (IR on)
- IR Illumination Distance
- ≥ 30 m
- IR Illuminator On/Off Control
- Auto; Manual
- Focal Length
- 4 mm
- Aperture
- F1.6
- Field of View
- H: 71.2° / V: 52° / D: 92.6°
- Focus Control
- Fixed
- Close Focus Distance
- 1.0 m
- Day/Night
- Auto (ICR); Color and B/W
- BLC
- Yes
- WDR
- DWDR
- HLC
- Yes
- White Balance
- Auto/Manual/Indoor/Outdoor/Tracking/Street lamp/Natural
- AGC
- Auto; Manual
- Noise Reduction
- 2D NR; 3D NR
- S/N Ratio
- ≥ 55 dB
- Region of Interest (RoI)
- Yes
- Image Flip
- 90°; 180°; 270°
- Exposure Compensation
- Yes
Intelligence2
- General Intelligence
- Tripwire, Intrusion
- Advanced Intelligence
- Fire Detection & Alarm / Cold & Hot Spot Trace / Human & Vehicle Classification / Smoking Detection / Call Detection
Video and Audio1
- Video Compression
- H.265/H.264M/H.264H/H.264B/MJEPG
Resolution2
- Thermal
- Main Stream: 1280 × 960 (1.3M)/XVGA (1024 × 768)/VGA (640 × 480)/256 × 192, 1280 × 960 by default / Sub Stream: VGA (640 × 480)/256 × 192, 256 × 192 by default /
- Visual
- Main Stream: 2336 × 1752/1080P (1920 × 1080)/720P (1280 × 720)/D1 (704 × 576), 2336 × 1752 by default / Sub Stream: 720P (1280 × 720)/D1 (704 × 576)/CIF (352 × 288), 352 × 288 by default
Frame Rate 2
- Thermal
- 50Hz: (main stream) 1 fps–25 fps adjustable, 25 fps by default; (sub stream) 1 fps–25 fps adjustable, 15 fps by default / 60Hz: (main stream) 1 fps–30 fps adjustable, 30 fps by default; (sub stream) 1 fps–30 fps adjustable, 15 fps by default
- Visual
- 50Hz: (main stream) 1 fps–25 fps adjustable, 25 fps by default; (sub stream) 1 fps–25 fps adjustable, 15 fps by default / 60Hz: (main stream) 1 fps–30 fps adjustable, 30 fps by default; (sub stream) 1 fps–30 fps adjustable, 15 fps by default
Audio Compression 1
- G.711a; G.711mu; PCM
Network6
- Protocol
- HTTPS; HTTP; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; SNMP; QoS; UPnP; NTP
- Edge Storage
- Micro SD card (256 G)
- Interoperability
- ONVIF; CGI
- Browser
- IE: IE8 and the later, and explorer with IE core / Google: 42 and the earlier / Firefox: 42 and the earlier
- User/Host
- 10
- Security
- Authorized username and password; attached MAC address; encrypted HTTPS; IEEE 802.1x; controlled network access
Certification2
- CE
- EN55032:2015; EN61000-3-2:2014
- FCC
- CFR 47 FCC Part15 subpart B; ANSI C63.4-2014
Port6
- Network
- 1 10M/100M Ethernet port (RJ-45)
- Audio Input
- 1
- Audio Output
- 1
- Alarm Input
- 1
- Alarm Output
- 1
- RS-485
- 1 pair
Power2
- Power Supply
- 12V±20% DC/PoE
- Power Consumption
- Basic: <6.5W (LED off) / Max: <13W (LED on, heater on)
Environment4
- Operating Temperature
- –30°C to +60°C (–22°F to +140°F)
- Storage Temperature
- –30°C to +70°C (–22°F to ﹢158°F)
- Operating Humidity
- ≤ 95%
- Protection
- IP67, anti-surge 6KV, anti-elctrostatic 6KV (touched by objects), anti-elctrostatic 8KV (air)
Structure4
- Product Dimensions
- 122 mm × 122 mm × 112 mm
- Packaging Dimensions
- 155 mm × 155 mm × 135 mm
- Net Weight
- ≤ 0.85 kg
- Gross Weight
- ≤ 1 kg
IVS Range3
- Focal Length
- 3.5 mm
- Human (1.8 m × 0.5 m)
- 26 m
- Vehicle (1.4 m × 4.0 m)
- 72.5 m
