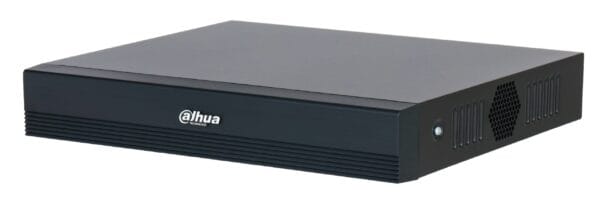

Dahua XVR 1080p 16channels H265 XVR1B16H-I/T (Up to 5MP)

Availability: In stock

Product Code:29409

Description:

• Dolynk cloud version: DMSS 2.0.30 and above, Dolynk Care 2.50.20 and above
• 16-channel two-way talk over coaxial cable allows for seamless communication between the camera, client and recorder
• 16-channel SMD Plus for analog channels or 24-channel SMD by camera which allows the device to trigger accurate alarms for humans and vehicles
• 16-channel AI Coding saves on storage and bandwidth while maintaining the details of targets in videos
• Supports HDCVI, AHD, TVI, CVBS and IP video input
• Supports up to 24-channel IP camera input and each channel can be up to 6 MP. The incoming bandwidth reaches 128 Mbps
• Supports accessing Wi-Fi cameras, making it suitable for a wide range of scenes
• Smart H.265+ and H.265 dual-stream video compression

Details:

System

• Main Processor : Industrial-grade processor
• Operating System : Embedded Linux
• Operating Interface : Web; Local GUI

SMD

• SMD Plus by Recorder : 16 channels: Secondary filtering for human and vehicle, reducing false alarms caused by leaves, rain and lighting condition change
• SMD by Camera : 24 channels

Irregular Black Block Masking

• Irregular Black Block Masking by Recorder : 1 channel

Audio and Video

• Analog Camera Input : 16 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect
• Camera Input : CVI: 5 MP@25 fps; 5 MP@20 fps; 5 MP@10/12.5 fps; 4 MP@25/30 fps; 1080p@25/30 fps; 720p@50/60 fps; 720p@25/30fps / TVI: 5 MP(2560 x 1944)@20 fps; 5 MP(2960 x 1665)@20 fps; 4 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps / AHD: 5 MP@20 fps; 4 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps
• IP Camera Input : Up to 24 channels of IPC access : 8 IP channels by default + 16 channels (analog channels are converted to IP channels)
• Incoming bandwidth: 128 Mbps, recording bandwidth: 128 Mbps and outgoing bandwidth: 128 Mbps
• Encoding Capacity : Main stream : 5 MP Mode: 4-ch 5 MP@(1 fps-6 fps); others 5M-N@(1fps-12 fps) / 5M-N Mode: 5M-N@(1 fps –12 fps); 4M-N/1080p@(1fps–15 fps); 1080N/720p/960H/D1/CIF@(1 fps–25/30 fps) / Sub stream: D1/CIF@(1 fps–15 fps)
• Dual-stream : Yes
• Video Bit Rate : 32 kbps–6144 kbps
• Audio Sampling : 8 kHz, 16 bit
• Audio Bit Rate : 64 kbps
• Video Output : 1 HDMI, 1 VGA / HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 / VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
• Multi-screen Display : When IP extension mode not enabled: 1/4/8/9/16 / When IP extension mode enabled: 1/4/8/9/16/25
• Third-party Camera Access : Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF

Compression Standard

• Video Compression : AI Coding; Smart H.265+; H.265; Smart H.264+; H.264
• Audio Compression : G.711a; G.711u; PCM

Network

• Network Protocol : HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.)
• Mobile Phone Access : iOS; Android
• Interoperability : ONVIF 24.12 (Profile T; Profile S; Profile G); CGI; SDK
• Browser : Chrome; IE; Safari; Edge; Firefox

Recording Playback

• Record Mode : General; alarm; motion detection
• Recording Playback : 1/4/9/16
• Backup Method : USB device and network
• Playback Mode : Instant playback; general playback; event playback; tag playback; smart playback

Alarm

• General Alarm : Motion detection; HDCVI alarm; camera external alarm; network alarm; PIR alarm
• Anomaly Alarm : Error (no disk, disk error, low space, low quota space; network disconnection; IP conflict; MAC conflict); video loss; video tampering; camera offline
• Intelligent Alarm : SMD Plus
• Alarm Linkage : Record; snapshot (panoramic); IPC external alarm output; audio; buzzer; log; preset; email

Ports

• Audio Input : 1-channel RCA / 16-channel BNC (Coaxial Audio)
• Audio Output : 1-channel RCA
• Two-way Talk : Coaxial two-way talk: 16-channel BNC / Local and network user two-way talk: Shares the same audio input with the first channel
• Disk Interface : 1 SATA port, up to 16 TB. This limit varies depending on the environment temperature
• USB : 2 (2 rear USB 2.0 ports)
• HDMI : 1
• VGA : 1
• Network Port : 1 (10/100/1000 Mbps Ethernet port, RJ-45)

General

• Power Supply : 12 VDC, 2 A
• Power Consumption : <12 W (without HDD)
• Net Weight : 0.99 kg (2.18 lb)
• Gross Weight : 1.57 kg (3.46 lb)
• Product Dimensions : 260.0 mm × 231.6 mm × 47.6 mm (10.24" × 9.12" × 1.87") (W × D × H)
• Packaging Dimensions : 344.0 mm × 89.0 mm × 287.0 mm (13.54" × 3.50" × 11.30") (W × D × H)
• Operating Temperature : –10 °C to +45 °C (+14 °F to +113 °F)
• Storage Temperature : –20 °C to +60 °C (–4 °F to +140 °F)
• Operating Humidity : 10%–90% (RH), non-condensing
• Installation : Desktop
• Certifications : CE-LVD: IEC 62368-1:2014 / CE-EMC: EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 55032:2015+A11:2020, EN 55035:2017+A11:2020, EN 55024:2010+A1:2015, EN 50130-4:2011+A1:2014
