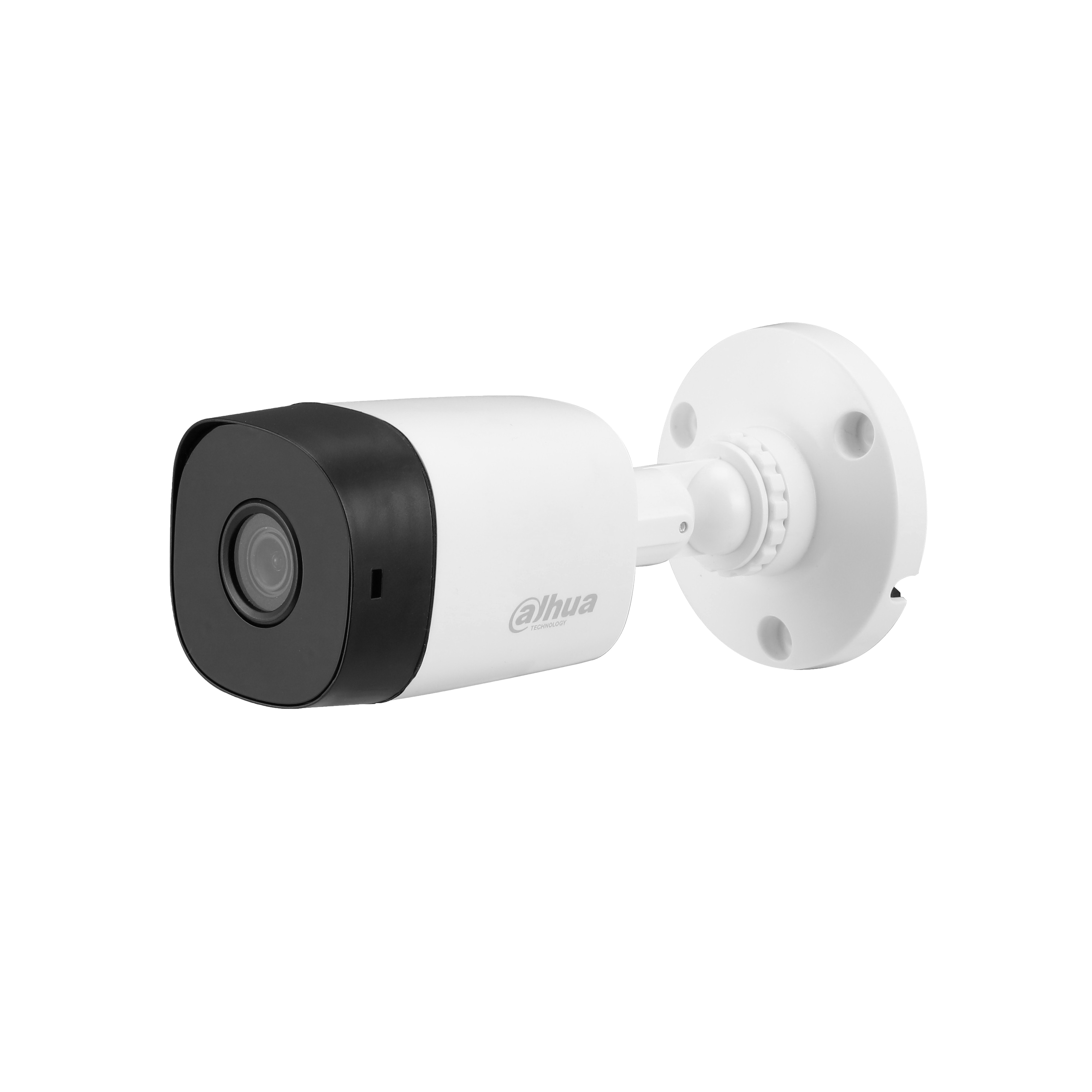

Dahua HDCVI 5.0MP Bullet 3.6mm B1A51

Availability: In stock

Product Code:24457

Description:

• In order to use the 5MP 16:9 HDCVI camera, the firmware of XVR must be upgraded to V4.001.0000001.0.R.200908 or later version.
• Max. 25 fps@5MP (16:9 video output)
• CVI/CVBS/AHD/TVI switchable
• 3.6 mm fixed lens (2.8 mm optional)
• Max. IR length 20 m, Smart IR
• IP67, DC12V

Details:

Camera

• Image Sensor : 1/2.7" CMOS
• Effective Pixels : 2880 (H) × 1620 (V)
• Scanning System : Progressive
• Electronic Shutter Speed : PAL: 1/25~1/100000s / NTSC: 1/30~1/100000s
• Minimum Illumination : 0.02Lux/F1.85, 30IRE, 0Lux IR on
• S/N Ratio : More than 65dB
• IR Distance : Up to 20m
• IR On/Off Control : Auto / Manual

Lens

• Lens Type : Fixed lens / Fixed iris
• Mount Type : M12
• Focal Length : 3.6mm
• Max Aperture : F2.0
• Angle of View : 104° × 88° × 46°(diagonal × horizontal × vertical)
• Focus Control : N/A
• Close Focus Distance : 1.2m

Video

• Resolution : 5M (2880 × 1620); 4M (2560 × 1440); 1080P (1920 × 1080); 960H (960 × 576/960 × 480)
• Frame Rate : CVI:PAL:5M@25 fps; 4M@25 fps; 1080P@25 fps; 5M@25 fps / NTSC:5M@25 fps;4M@30 fps; 1080P@30 fps; 5M@25 fps / AHD:PAL:4M@25 fps; / NTSC:4M@30 fps; / TVI:PAL:4M@25 fps; / NTSC:4M@30 fps; / CVBS:960H;
• Video Output : 1-channel BNC high definition video output / CVBS video output (Can switch)
• Day/Night : Auto (ICR) / Manual
• OSD Menu : Multi-language
• BLC Mode : BLC / HLC / DWDR
• WDR : DWDR
• Gain Control : AGC
• Noise Reduction : 2D
• White Balance : Auto / Manual
• Smart IR : Auto / Manual
• Mirror : Off/On
• Privacy Masking : Off / On (8 area, rectangle)

Certifications

• CE (EN55032, EN55024, EN50130-4,EN60950-1,
• EN 62368-1:2014+A11:2017)
• FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)

Interface

• Audio Interface : N/A

Eelectrical

• Power Supply : 12V DC ±30%
• Power Consumption : Max. 3.7W (12V DC, IR on)

Environmental

• Operating Conditions : -40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH * Start up should be done at above -40°C (-40°F)
• Storage Conditions : -40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH
• Ingress Protection & Vandal Resistance : IP67

Construction

• Casing : Plastic
• Dimensions : 69.8 mm × 69.8 mm × 149.3 mm
• Net Weight : 0.15 kg
• Gross Weight : 0.25 kg
